Programmable Controller Walk In Environmental Room

Brand Name:	HAIDA
Model Number:	HD-E705-8
MOQ:	1 set
Packaging Details:	FOAM.WOOD BOX
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ce,iso,en

Temperature Range:

-50c To +100c

Dimension (Internal) (w X D X H):

1500 X 1500 X 3000 Mm

Dimension (External) (w X D X H):

2850 X 1700 X 3200 Mm

Accuracy:

Temp. ±1c, Humidity ±2.5%Rh

Interior Walls:

Stainless Steel 304

Exterior Walls:

Cold Rolled Stell Plate With Baking Finish

Supply Ability:

30 SET / MONTH

Highlight:

environmental testing equipment

environmental testing machine

Product Description

Programmable Controller Walk In Environmental Room

Walk In Chamber Ovreview:
The difference between the walk in chamber and the ordinary temperature and humidty chamber is that the test sample is different in size. Step into the constant temperature and humidity room to large products (such as automotive parts, television, etc.) to carry out environmental intensity testing.

Walk in chamber as a climatic chamber and environment test chamebr with temperature and humidity testing function.walk in chamber can accurately simulate low-temperature, high temperature, high temperature and humidity, low temperature and humidity and other complex natural environment by a Programmable Temp. Humid. Controller.

Walk In Chamber Application Test Items:

walk in chamber main for testing the performance of materials in a variety of environments tempearetures heat resistance test , cold resistance test , dry resistance test, humidity resistance test.

Walk In Chamber Application Metarial or Industry:

walk in chamber suitable for electronics, electrical appliances, mobile phones, communications, instrumentation, vehicles, plastic products, metal, food, chemical, building materials, medical, aerospace and other products in different temperature and humidity environment quality testing.

Test Standard(including but not limited to... ):
Compliance with ASTM G53-77 specifications GB, GJB, MIL, ASTM, CNS, IEC, JIS, AATCC, DIN, Fed Test, BS and SAE.

Specifications:

Sr No	Specification	HD-E705-8
1	Temperature Range	-50c To +100c
2	Humidity Range	40% To 98% Rh
3	Dimension (Internal) (w x d x h)	1500 x 1500 x 3000 Mm
4	Dimension (External) (w x d x h)	2850 x 1700 x 3200 Mm
5	Ramp	Variable, Temp. 0~5c / Min & Humidity 0~5%/Min In Average, No Load
6	Accuracy	Temp. ±1c, Humidity ±2.5%Rh
7	Interior Walls	Stainless Steel 304
8	Exterior Walls	Cold Rolled Stell Plate With Baking Finish
9	Temperature & Humidity Measurement And Controller	32 Bit Control And Monitoring System. Interface Facility With Rs232 Programmable Temp. Humid. Controller
10	Viewing Window	Multi Pane Glass Window Size
11	Port Holes	50 Mm Diameter For Wire Routing
12	Power Supply Requirement	Three Phase, Ac380 v ± 10 %, 50 Hz
13	Sound Pressure Level	<72db (a)
14	Condenser Cooling	Water Cooled

(The above parameters are machine standard parameters and can be customized according to your requirements)
Chamber Pictures:

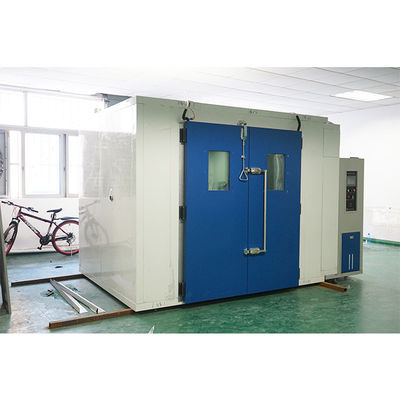

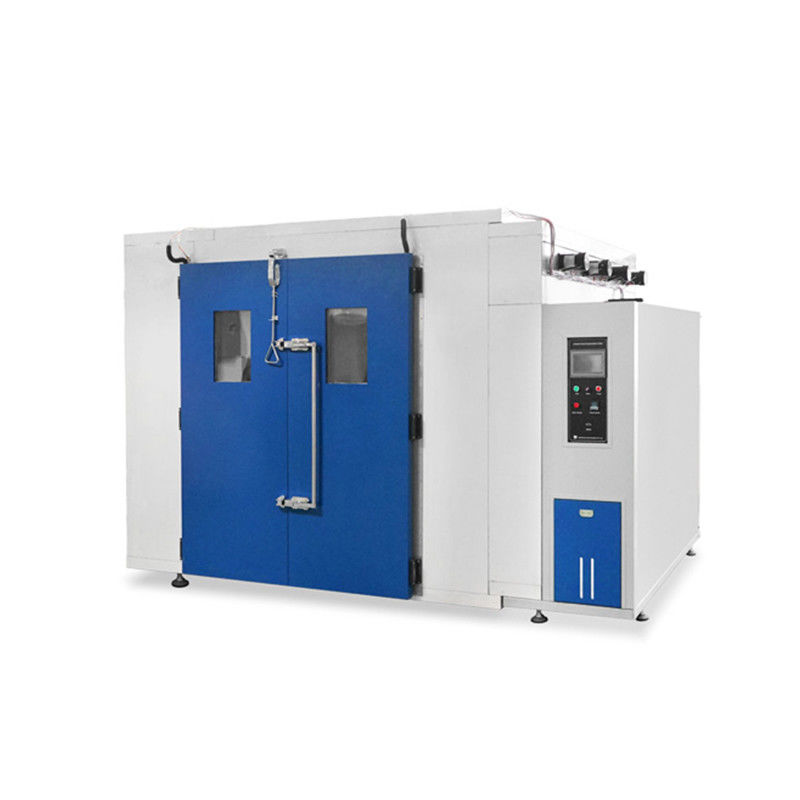

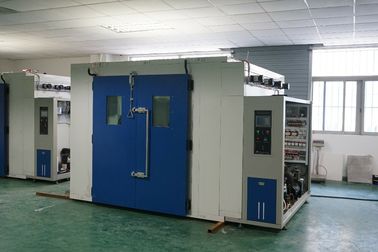

Programmable Controller Walk In Environmental Room 0
