Electronic Xenon Lamp Air Cooled Textile Testing Equipment With 10.4" Touch Screen Control Panel Display

Electronic Xenon Lamp Air Cooled Textile Testing Equipment With 10.4" Touch Screen Control Panel Display
Electronic Xenon Lamp Air Cooled Textile Testing Equipment With 10.4" Touch Screen Control Panel Display Electronic Xenon Lamp Air Cooled Textile Testing Equipment With 10.4" Touch Screen Control Panel Display Electronic Xenon Lamp Air Cooled Textile Testing Equipment With 10.4" Touch Screen Control Panel Display Electronic Xenon Lamp Air Cooled Textile Testing Equipment With 10.4" Touch Screen Control Panel Display

Large Image :  Electronic Xenon Lamp Air Cooled Textile Testing Equipment With 10.4" Touch Screen Control Panel Display

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: Haida
Certification: CE, , ISO
Model Number: HD-W811
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable

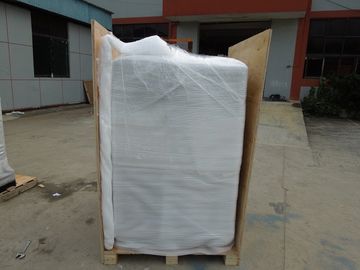

Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10set/ month
Detailed Product Description
Test Types: Light Only, Dark Only, Spray Only Total Exposure Area: 1370cm2
Test Positions: 11 (ISO) Or 5 (AATCC) Irradiance Monitoring System: Radiometer
Irradiance 420nm Range: 0.80~2.01W/m2 Rack Rotating Speed: 5r/min
High Light:

textile testing instruments

,

textile industry equipment

          Electronic Xenon Lamp Air Cooled Light Fastness Testing Machine for Textile Testing Machine

Product Description
GENERL SPECIFICATIONS

Packaging Dimensions (W x D x H) 1200*770*1880mm
Power supply source single-phase, 220V±10%, 50/60Hz (can be appointed)
Gross Weight 290kg


INTRODUCTION
This machine designed to meet the requirements of ISO 105 B02 and AATCC Test Method 16 standards. It has a rotating specimen rack and provides precise control of critical test parameters including spectrum, irradiance, relative humidity, chamber temperature and black standard temperature.

USAGE
To determine the resistance of the color of textiles to fade when exposed to artificial light (xenon arc) which is representative of natural daylight.
TESTING STANDARDS
ISO 105-B02 Textiles -- Tests for color fastness -- Part B02: Color fastness to artificial light: Xenon arc fading lamp test
ISO 105-B04 Textiles -- Tests for color fastness -- Part B04: Color fastness to artificial weathering: Xenon arc fading lamp test
ISO 105-B07 Textiles -- Tests for color fastness -- Part B07: Color fastness to light of textiles wetted with artificial perspiration
AATCC TM 16 - Option 3 Colorfastness to Light: Xenon-Arc
M&S C9 Colorfastness to Light
M&S C9A Colorfastness to wet light in the presence of alkaline or other chemical residues
JIS L 0843 Test method for color fastness to xenon arc lamp light
JIS L 0888 Test method for color fastness to light and perspiration Method B
IS 15203 Textiles - Method of Test for Determination of Color Fastness of Textile Materials to Artificial Light at High Temperatures - Xenon Arc Fading Lamp Test

SALIENT FEATURES
1. Full Color 10.4" Touch Screen Control Panel Display of
Direct Setting and Control of Irradiance
Direct Setting and Control of BPT/BST
Direct Setting and Control of Relative Humidity
Direct Setting and Control of Specimen and Chamber Air Temperature
8 Factory Pre-programmed Test Methods
Space for 4 Custom Programs
2. Graphic display of the progression of all test parameters.
3. High performance, long lasting, air-cooled xenon lamp.
4. Solar-powered radiometer, incorporating a black standard thermometer.
5. Works in "controlled irradiance" or "blue wool" mode.
6. Eleven double-sided sample holders offer a massive exposure area of up to 1370cm².
7. Refined software which perfectly reflects the needs of the operator.
8. High efficiency power supply ensures running costs remain low.
9. Complies with international standards for textiles, leather and other materials.
10. Compact, stylish and ergonomic design.

STANDARD FEATURES

Light Source 2500W air-cooled xenon arc lamp (recommend replacing lamps every 1500 hours)
Test types Light only, Dark only, Spray only
Total Exposure Area 1370cm²
Test Positions 11 (ISO) or 5 (AATCC)
Exposure Area of each Test Position ISO 65.25cm² (145 x 45) mm
AATCC 108.75cm² (145 x 75) mm
Irradiance Monitoring System Radiometer
Irradiance 420nm Range 0.80~2.01W/m²
Rack rotating speed 5r/min
Test Chamber Humidity Range Light Cycle 10%~70%RH,Dark Cycle 30%~95%RH
Test Chamber Temperature Range 25ºC~50ºC
Black Standard Temperature Range 40ºC~85ºC±1ºC
Black Panel Temperature Range(optional) 40ºC~80ºC±2ºC
Water spray specimen surface
Water Reservoir Capacity 15 liters
Water Consumption (ISO 105-BO2 Normal) 0.9 l/h (max.)
Color Touch Screen Supplied as standard
Chamber Viewing Window Supplied as standard


ACCESSORIES SUPPLIED WITH THE INSTRUMENT

1.Main Unit 01 No.
2.Test Kit 7.3cm² (Ø 30.5mm) and 50cm² (Ø 79.8mm) 01 No.(each)
3.Synthetic Rubber Diaphragms(Maufacturer James Heal) 05 Nos.
4.Diaphragm Unit Tightening wrench 01 No.
5.Air Pipe (To connect with compressor) 01 No.
6.Glycerol (500mL) 01 No.
7.USB software 01 No.
8.Power Cord 01 No.
9.This User's Manual 01 No.
10. Inspection & Conformance Certificate 01 No.
