| Measuring Range: | 0.1-12,000 Mm/s At 20 Cm² Test Area. | Units Of Measure: | Mm/s, M3/m2.min, Cm3/cm2.s, M3/m2.h, Cfm, L/dm2.min, L/m2.s |
|---|---|---|---|
| Test Pressure: | 1-4,000 Pa | Test Areas: | 20, 25, 38.5 And 100 Cm² |
| Sample Thickness: | 12mm | Power Supply: | 110V,60Hz |
| Weight: | 75 Kg | ||
| High Light: | fabric checking machine,textile testing instruments |
||

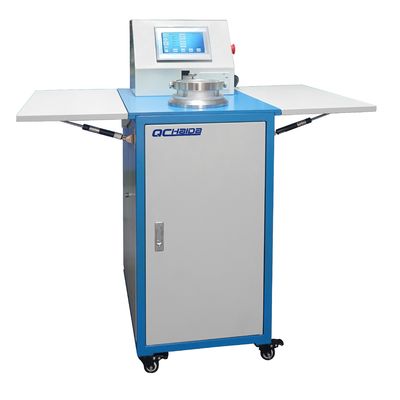

Electronic Textile Testing Machine Automatic Fabric Moisture Air Permeability Test Equipment
Application:
Textile Testing Machine Automatic Fabric Textile Air Permeability Tester to determine the resistance of fabrics (woven, knitted and non woven textile materials) to the passage of air (air flow) under constant pre-set air pressure while firmly clamped in the test rig of selected test head/area.
Standard:
ASTM D737 Standard Test Method for Air Permeability of Textile Fabrics
ISO 9237 Textiles - Determination of the Permeability of Fabrics to Air
BS 5636,DIN 53887,AFNOR G07-111,EDANA 140.1,ISO 7231,ISO 9073-15,JIS L1096-A
TAPPI T251, WSP 070.1.R3, EDANA 140.2-99
Technical Parameters:
| Measuring range | 0.1-12,000 mm/s at 20 cm² test area. |
| Units of measure | mm/s, m3/m2.min, cm3/cm2.s, m3/m2.h, cfm, L/dm2.min, L/m2.s |
| Measuring accuracy | better than ± 2 % of the displayed value |
| Test pressure | 1-4,000 Pa |
| Test areas | 20, 25, 38.5 and 100 cm² |
| Sample thickness | 12mm |
| Dimensions | 1070 x 670 x 1080 mm |
| Power supply | 110V,60Hz |
| Weight | 75 Kg |
Accessories:
| 1. Main Unit | 01 No. |
| 2. Test Heads | 02 Nos. |
| 20 cm²for DIN 53887, EN ISO 9237, WSP 70.1 | |
| 38.5 cm²for ASTM D 737, JIS L 1096-A, TAPPI T 251, WSP 70.1 | |
| 3. Air Permeability Tester Labcloud | 01 No. |
| 4. Calibration Check Plate | 02 Nos.(ΦO=7.8 and ΦO=21.6 ) |
| 5. O-Ring for Air Seal | 01 No.(pack of 5) |
| 6. Nozzle | 11 Nos. |
| 7. Power Cord | 01 No. Nozzle |
| 8. This User's Manual | 01 No. |
| 9. Inspection & Conformance Certificate | 01 No. |
| No. | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| ΦO(mm) | 0.8 | 1.2 | 2 | 3 | 4 | 6 | 8 | 10 | 12 | 16 | 20 |
