200KG Furniture Testing Machines for Computerized IFD Foam Compression Hardness Testing Machine

200KG Furniture Testing Machines for Computerized IFD Foam Compression Hardness Testing Machine
200KG Furniture Testing Machines for Computerized IFD Foam Compression Hardness Testing Machine
video play

Large Image :  200KG Furniture Testing Machines for Computerized IFD Foam Compression Hardness Testing Machine

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: Haida
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-F750A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Sensor: Load Cell Capacity: 200KG
Unit: Kg, N, LB Up Plate: Diameter 200mm, Bottom Fillet R1mm
Low Plate: 420×420mm, Holes Diameter 6mm, Space 20mm Max Stroke: 500mm
High Light:

furniture testing equipment

,

impact testing machine

Furniture Testing Machines for Computerized IFD Foam Compression Hardness Testing Machine





Product Description:

Foam compression tester is quantitatively defined by its indentation hardness. Indentation hardness of foam is determined by pressing a circular indentor at a specified speed against a block of foam and finding the force needed to compress it to a specified percentage of its initial thickness.





Design Standard: ASTM D 3574 , JIS K 6400-2 A Method, JIS K 6400-2 B Method





Standard Features:

Control and display Computer
Sensor Load cell
Capacity 200KG
Unit Kg, N, LB
Up plate Diameter 200mm, bottom fillet R1mm
Low plate 420×420mm, holes diameter 6mm, space 20mm
Max stroke 500mm
Test speed 0~500mm/min
Motor Servo motor
Driver Taiwan high precision ball screw
Power Single phase, 220V, 50Hz
Weight 160KG
Dimension 790×590×1010mm
Accessories One computer with software





Features:

  1. For the load mechanism servo motor and ball screw jack are employed.
  2. The pressure foot of ball joint type is used to cope with slant of the sample pressing surface.
  3. Setting of the measuring requirements and indication of the measuring data are in accordance with International Unit System (SI).
  4. Available for data communication with PC by Ethernet connection

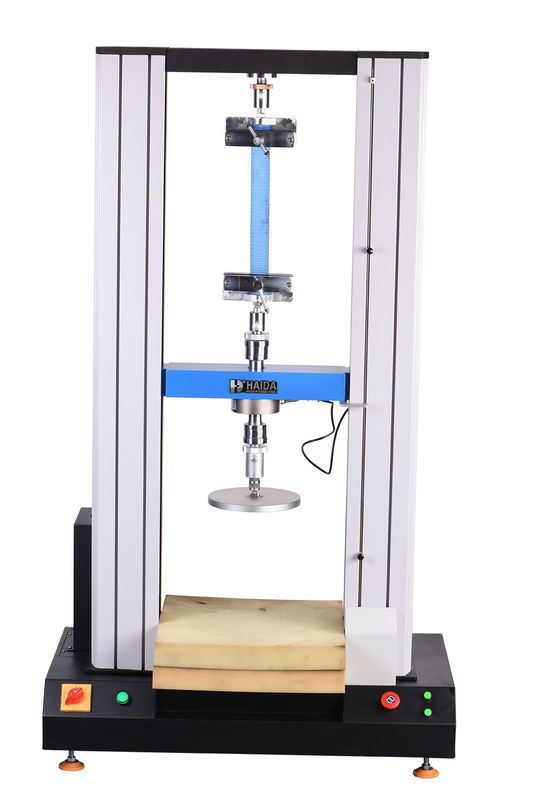

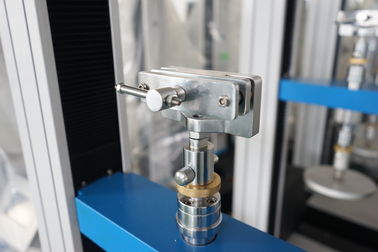

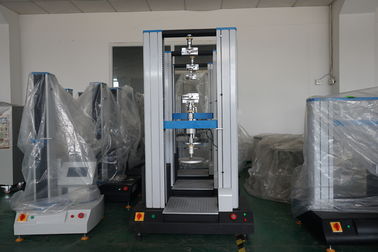

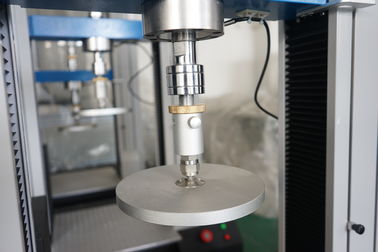

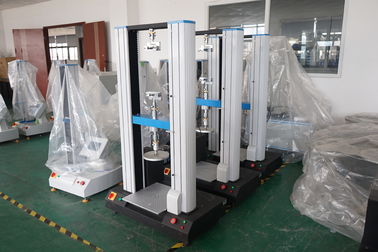

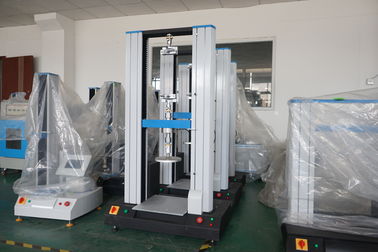

Product Picture:



200KG Furniture Testing Machines for Computerized IFD Foam Compression Hardness Testing Machine 0



200KG Furniture Testing Machines for Computerized IFD Foam Compression Hardness Testing Machine 1



200KG Furniture Testing Machines for Computerized IFD Foam Compression Hardness Testing Machine 2
