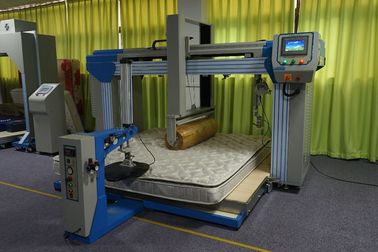

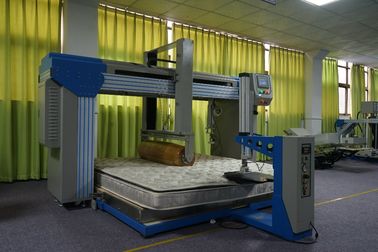

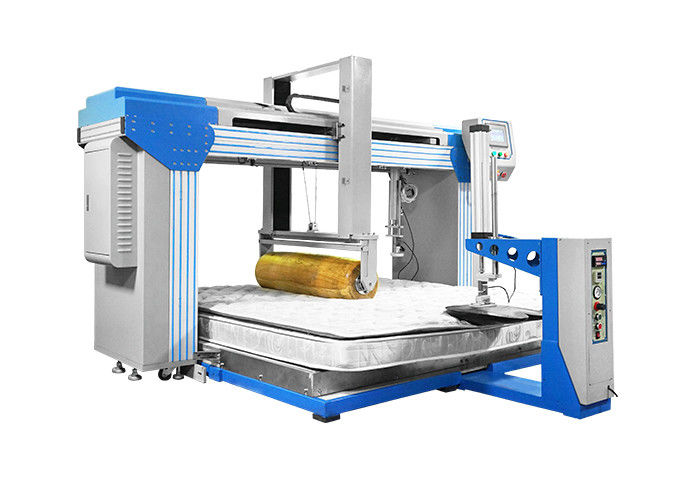

Mattress Rolling Test Compression Hardness Testing Machine 0-300 mm Adjustable Impact Height

Large Image : Mattress Rolling Test Compression Hardness Testing Machine 0-300 mm Adjustable Impact Height

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	Haida
Certification:	EN 1957
Model Number:	HD-F764

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

Suitable Maximum Specimen:	2.2m X 2 M	Display Accuracy:	0.001kgf
Design Standards:	ASTM F1566-2009, EN1957, GB / T 26706-2011, QB / T 1952.2-2011	Test Times:	5000 Times(Mattress Edge)
Power Supply:	3∮, AC380V, 5kW	Weight:	About 650Kg
Highlight:	fatigue testing equipment , impact testing machine

Mattress Rolling Test / Mattress Compression Hardness Tester / Mattress Edge Crush Test Machine

Product Description

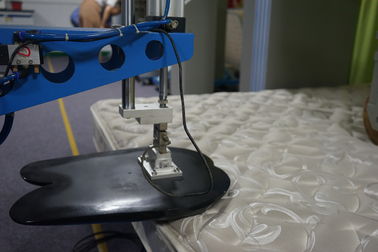

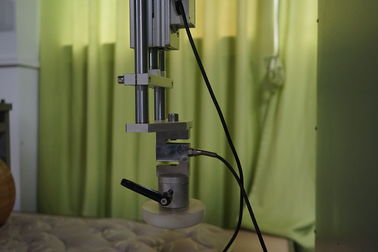

It apply to Innerspring ,Box spring mattresses and Foam mattress. The Cornell Type Tester is used to test the long term capacity of bedding to resist cyclic loading. The machine consists of a double hemispherical ram head on a manually adjustable shaft. A load cell is located on the ram head to measure the force being applied to the mattress. The shaft is connected to an adjustable eccentric which is rotated by an electric motor at up to 100 cycles per minute variable.

Specification

Item	Specification
Applicable mattress	maximum size 2.2m X 2 m
Controller	Mitsubishi PLC + color touch screen + data output function

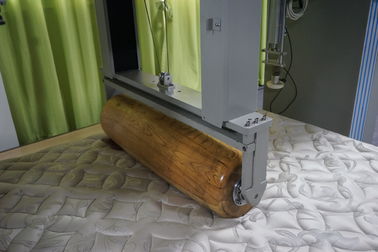

Roller type	Hexagonal roller
Roller type	Round roller
Test stroke	1) ASTM 1566: Max. Mattress width, Min. 70% of mattress width or 38in (965mm) whichever is smaller
	2) BS EN 1957: 250mm on the left and right of the mattress centerline
	3) GB / T 26706: 250mm on the left and right of the midline
	4) QB / T 1952.2: 250mm on the left and right of the mattress centerline
Test speed	0-20r / min
Transmission device	high-precision servo system
High loss test	high precision servo measurement system
Mattress edge	a, test times: 5000 times;
	b, pressure holding time: 3 seconds;
	c, test force value: 1000N
Power supply	3∮, AC380V, 5kW
Design standards	ASTM F1566-2009, EN1957, GB / T 26706-2011, QB / T 1952.2-2011

Mattress Rolling Test Compression Hardness Testing Machine 0-300 mm Adjustable Impact Height 0
