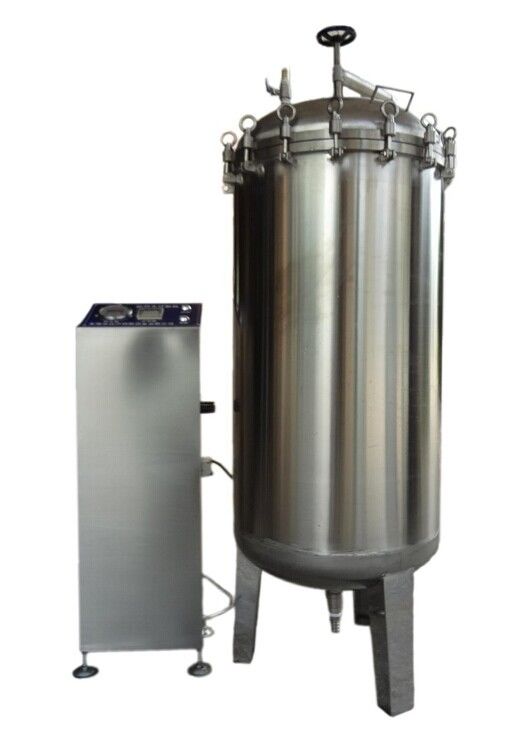

Rain Water Immersion Testing Machine Environmental Test Chambers for Rubber / Textile with Ipx7 / Ipx8
Product introduction:
Rain water immersion testing machine is suitable for electrical products, lamps, electrical cabinets, electrical components, communications products, automobiles, motorcycles and spare parts, outdoor lighting and signal devices and other products to do waterproof performance testing and IP waterproof rating test.
Standard features:
| Item | Parameter |
| Container | S304 stainless steel tank |
| Diameter | 600mm |
| Height | 1000mm |
| Pressure maintaining range | Normal pressure-0.3MPa, with pressure display. |
| Pressure gauge accuracy | 0.25 |
| Time control | 0 ～ 99 minutes and 99 seconds |
| Lifting device | Portable stainless steel gondola |
| Anti-immersion test device | Anti-riot device with pressure protection and drainage pressure relief device. |
| Water level display | Scale and water level tube, the display range is 200-1000mm |
| Stainless steel tank thickness | 3mm |
| Total machine size | About 1000 X 750 X 1600 (length, width and height) |
| Control box size | About 300 X 250 X300 (length, width and height) |
| Power supply | 220V 50HZ, air switch 32A |
| Power | 3.5KW |
| Liner | Stainless steel 304 |
| Safety protection device | Power supply overload, short circuit protection, ground protection, water shortage protection, alarm signal prompt. |
| Others | Simulate the water pressure of the water tank through the air compressor 0-30 meters (different water depths can be simulated according to requirements) |
Classify
Rain Testers With Good Quality, A complete set of IP waterproof test equipment is:
IPX1/2 vertical drop test equipment (with rotating machine and tilt sample samples machine);
IPX3/4 automatic arranging the pouring water test equipment (with automatic turntable);
IPX3/4 handheld drench water test equipment (with lift stents);
IPX5/6 hosing test equipment (D 6.3 mm, D 12.5 mm nozzle);
IPX7/8 and the water immersion test equipment (with water temperature control and 10 atmospheric pressure adjustable);
Auxiliary water supply, filter system (with the above products, especially blunt water device).
Application:
Rain tester manufacturer applied to plastics, rubber, paint, coatings, printing ink, paper, pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity and the electrical products; It provide an important testing data for scientific research, product development and quality control
