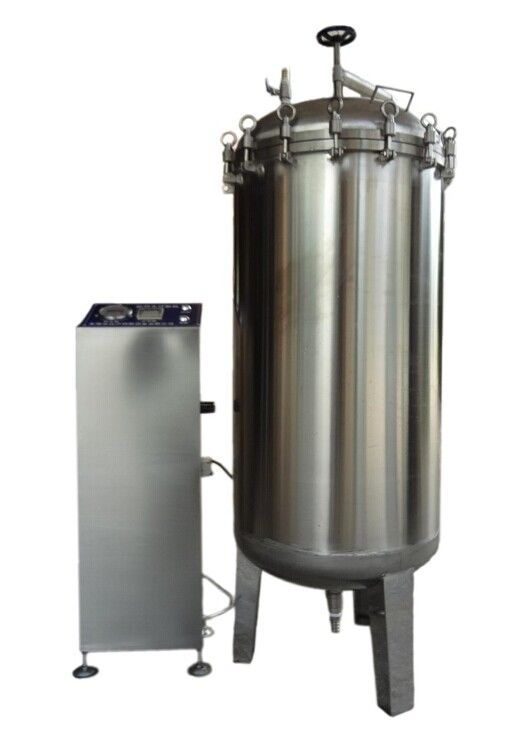

SUS#304 Water Immersion IP Test Chamber , Corrosion Testing Equipment

Brand Name:	Haida
Model Number:	HD-E710-4
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Container:

S304 Stainless Steel Tank

Time Control:

0 ～ 99 Minutes And 99 Seconds

Stainless Steel Tank Thickness:

3mm

Control Box Size:

About 300 Mm* 250 Mm *300 Mm (L*W*H)

Sample Lift Device:

Portable Stainless Steel Basket

Power Supply:

220V，50HZ, Air Switch 32A

Supply Ability:

300 Sets per Month Haida

Highlight:

humidity temperature test chamber

environmental testing machine

Product Description

Environmental Test Chambers IP Grade Ipx7 / Ipx8 Water Immersion Test Chamber for Plastic / Frabic

Product Introduction:

This machine is suitable for testing whether electrical products, enclosures and seals can ensure good performance of equipment and components under rain. This product adopts scientific design, so that the device can realistically simulate various environments such as dripping, showering, splashing, and spraying water. Into the comprehensive control system and the adoption of frequency conversion technology, the rotation angle of the rainfall sample rack, the swing angle of the water spray swing rod and the frequency of the water spray volume can be adjusted automatically.

Standard Parameters:

Item	Parameter
Standard	IPX7, IPX 8
Container	S304 stainless steel tank
Diameter	600mm
Height	1000mm
Pressure maintaining range	Normal pressure-0.3MPa, with pressure display.
Pressure gauge accuracy	0.25
Time control	0 ～ 99 minutes and 99 seconds
Lifting device	Portable stainless steel gondola
Anti-immersion test device	Anti-riot device with pressure protection and drainage pressure relief device.
Water level display	Scale and water level tube, the display range is 200-1000mm
Stainless steel tank thickness	3mm
Total machine size	About 1000mm X 750 mm X 1600 mm (LWH)
Control box size	About 300 mm X 250 mm X300 mm (LWH)
Power supply	220V,50HZ, air switch 32A
Power	3.5KW
Liner	Stainless steel 304
Safety protection device	Power supply overload, short circuit protection, ground protection, water shortage protection, alarm signal prompt.
Others	Simulate the water pressure of the water tank through the air compressor 0-30 meters (different water depths can be simulated according to requirements)

SUS#304 Water Immersion IP Test Chamber , Corrosion Testing Equipment 0

Classify:

Rain Testers With Good Quality, A complete set of IP waterproof test equipment is:
IPX1/2 vertical drop test equipment (with rotating machine and tilt sample samples machine);
IPX3/4 automatic arranging the pouring water test equipment (with automatic turntable);
IPX3/4 handheld drench water test equipment (with lift stents);
IPX5/6 hosing test equipment (D 6.3 mm, D 12.5 mm nozzle);
IPX7/8 and the water immersion test equipment (with water temperature control and 10 atmospheric pressure adjustable);
Auxiliary water supply, filter system (with the above products, especially blunt water device).

Application:
Rain tester manufacturer applied to plastics, rubber, paint, coatings, printing ink, paper, pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity and the electrical products; It provide an important testing data for scientific research, product development and quality control

More Related Product Welcome to Click Here

Haida IPX1 - IPX8 Rain Test Chamber.pdf
