Chamber Material: | Internal: SUS304 Stainless Steel, External: Stainless Steel | Minimum Test Duration: | 3 Min |
---|---|---|---|
Controller: | PLC Touch Screen | Distance From Nozzle To Enclosure Surface: | Between 2.5m And 3m |
Sample Rotatory Table: | Diameter 500mm, Rotation Speed Adjustable | Power: | AC380V, 50Hz, Three Phase |
Highlight: | humidity temperature test chamber,environmental testing machine |

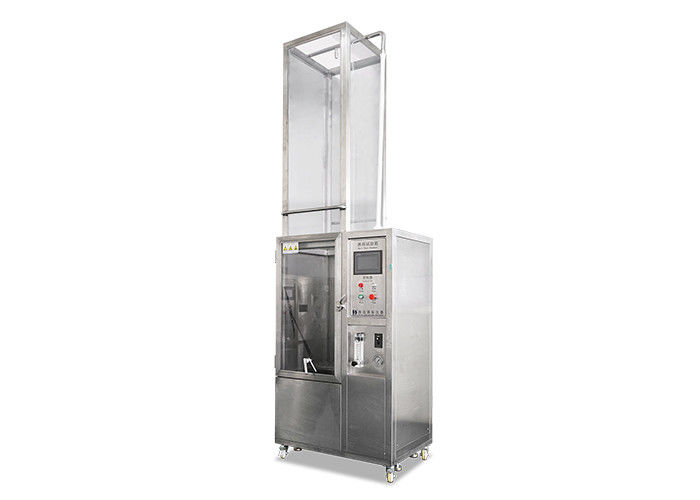

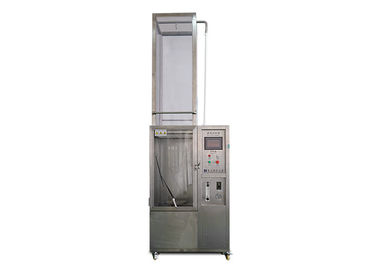

Automatic Environmental Test Chambers Climatic Tester Water Shower Test Chamber with Ipx5 / Ipx6
Product Introduction:
IPX5 / 6 rain test chamber used to test the mobile phone, tablet PC, camera, LCD TV and other high-end electronic products shell seal, simulation in heavy rain, heavy rain and other circumstances, the equipment and components of the performance is good.
Standard features:
Item | Specification | |
Internal chamber size(W*D*H) | 1000*1000*1000mm(can be customized) | |
External chamber size(W*D*H) | 1400*1200*3500mm | |
IP Code | IPX5 | IPX6 |
Internal diameter of the nozzle | 6.3mm | 12.5mm |
Delivery rate | 12.5l/min±5% | 100l/min±5% |
Core of the substantial stream | Circle of approximately 40mm diameter at 2.5m distance from nozzle | Circle of approximately 120mm diameter at 2.5m distance from nozzle |
Chamber material | Internal: SUS304 stainless steel, external: stainless steel | |
Test duration per square meterof enclosure surface area likely to be sprayed | 1 min | |
Minimum test duration | 3 min | |
Controller | PLC touch screen | |
Distance from nozzle to enclosure surface | Between 2.5m and 3m | |
Sample rotatory table | Diameter 500mm, rotation speed adjustable | |
Power | AC380V, 50Hz, three phase |

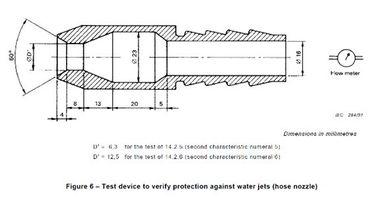

SPRAY NOZZLE DESIGN DRAWING
