Socket Plug Insertion Force Test Electronic Machine With Digital LCD Display

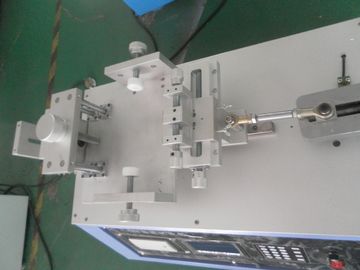

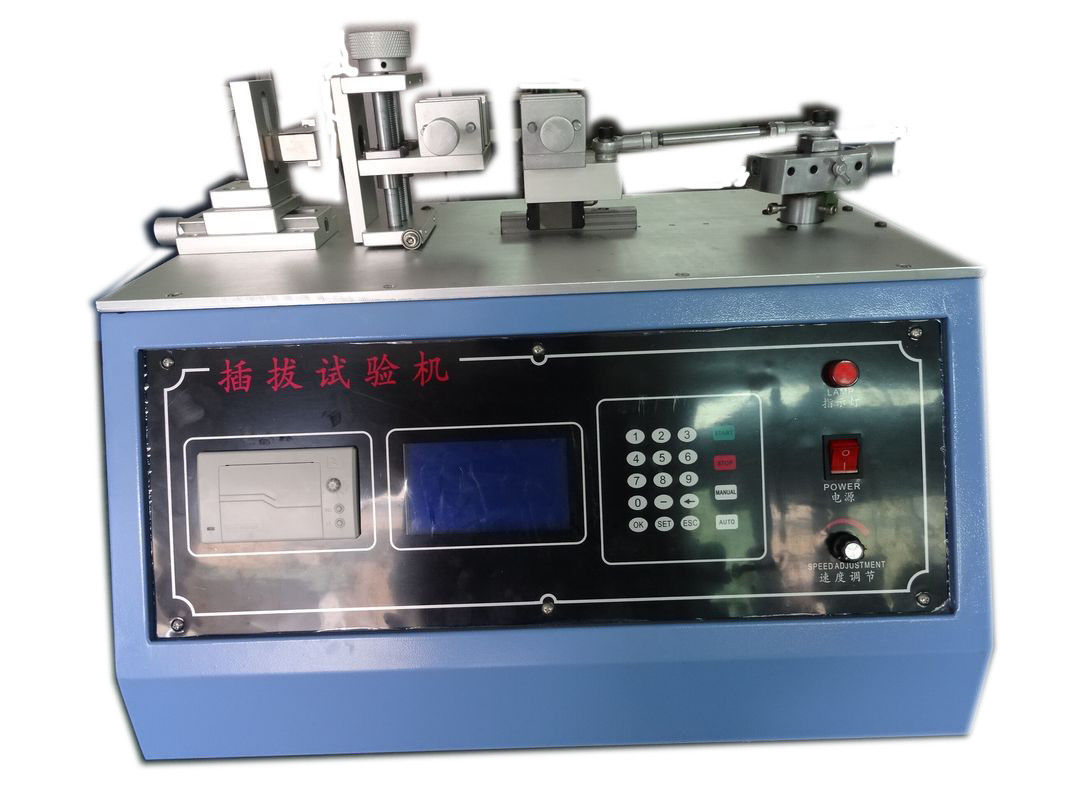

Large Image : Socket Plug Insertion Force Test Electronic Machine With Digital LCD Display

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number:	HD-K805

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

Test Cycle:	0~999,999 Cycles	Driving Method:	Rotating Eccentric Type
Test Position:	One	Max. Stroke:	0~300mm
Dimension (WxDxH):	800x470x550 Mm
Highlight:	universal tensile testing machine , compressive strength testing machine

Socket Plug Insertion Force Test Electronic Machine With Digital LCD Display

Product description:

This Connector Durability Tester is to simulate to operate the electronic product, test for insert &

extract the USB, the earphone plug to the earphone port, to check the durability of the buttons on

edge and the connection ports.

Technical Parameter:

Test position	One
Test cycle	0~999,999 cycles
Driving method	Rotating eccentric type
Controller	Digital LCD Display displays Real-time test cycle, Pull & Insert force value
Unit Switchover	N, KG, IB
Insertion force resolution	0.01kg
Max. Stroke	0~300mm
Test speed	10~60 cycles/minutes, can be adjusted
Insertion force	0~50kg
Dimension (WxDxH)	800x470x550 mm
Power	Single phase, AC220V, 50Hz
