Rotating Eccentric Type USB Connector Test Machine with 0 ~ 300 mm Stroke

Brand Name:	HAIDA
Model Number:	HD-K805
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Test Cycle:

0~999,999 Cycles

Driving Method:

Rotating Eccentric Type

Insertion Force:

0~50kg

Insertion Force Resolution:

0.01kg

Max. Stroke:

0~300mm

Test Speed:

10~60 Cycles/minutes, Can Be Adjusted

Supply Ability:

300 Sets per Month Haida

Highlight:

compressive strength testing machine

plastic testing instrument

Product Description

Rotating Eccentric Type USB Connector Test Machine with 0 ~ 300 mm Stroke

Product description:

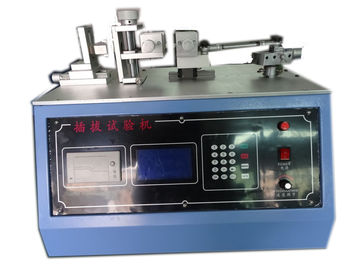

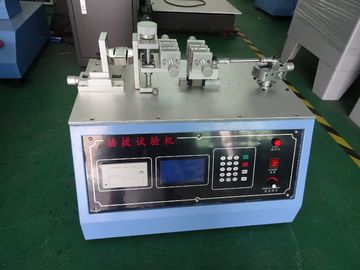

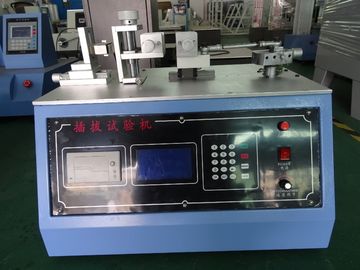

This Connector Durability Tester is to simulate to operate the electronic product, test for insert & extract the USB, the earphone plug to the earphone port, to check the durability of the buttons on edge and the connection ports.

Technical Parameter:

Test position	One
Test cycle	0~999,999 cycles
Driving method	Rotating eccentric type
Controller	Digital LCD Display displays Real-time test cycle, Pull & Insert force value
Insertion force	0~50kg
Insertion force resolution	0.01kg
Max. Stroke	0~300mm
Test speed	10~60 cycles/minutes, can be adjusted
Unit Switchover	N, KG, IB
Dimension (WxDxH)	800x470x550 mm
Power	Single phase, AC220V, 50Hz

Rotating Eccentric Type USB Connector Test Machine with 0 ~ 300 mm Stroke 0

Rotating Eccentric Type USB Connector Test Machine with 0 ~ 300 mm Stroke 1
