| Designed Standard: | EN14764, EN14765 | Machine Dimension: | 280x120x260cm |
|---|---|---|---|
| Power: | Servo Motor + Reducer + Clutch | Testing Speed(km/hr): | 7-27km/hr(special Speed-upon Request) |
| Luggage Carriers(Kg): | 10.18.25.according To Luggage Carriers, Area 204X240 (Assembly Type) | Head Tube(Kg): | 14 |
| Force To Brake Handlebars: | ConformEN14764 Standard(Auto Weight 40~180N) | Brake Force(N): | 2000 |
| Standard Accessories: | Tool Kitx1, Operational Manual In English X1, Testing Dead Weight, Warranty Certificationx1 | Dimension(W X D X H): | 3070x1200x2100 (Ref Only) |
| High Light: | fatigue testing equipment,strollers testing equipment |
||
Servo Motor + Reducer + Clutch Universal Test Equipment Bike Road Performance
Introduce:

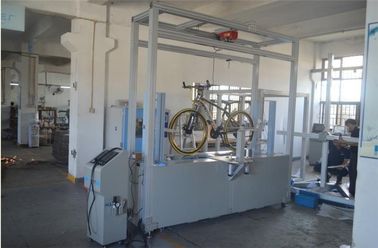

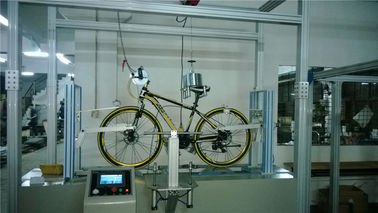

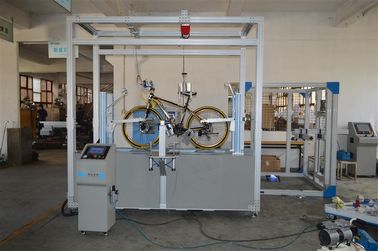

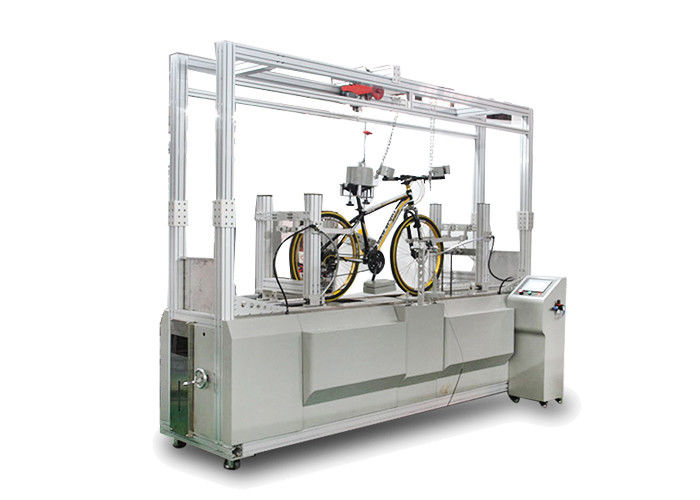

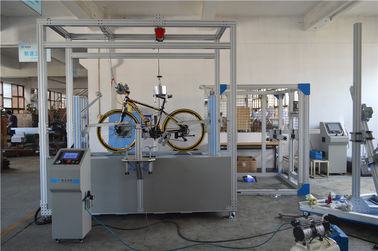

Micro Computer Bicycle Bike Road Performance Test Machine is suitable to test bike’s run test& brakes performance test. T
Micro Computer Bicycle Bike Road Performance Test Machine is formed by two rollers with varied diameter and follows specification to install jump plates at bike’s seat post. pedals, bars, luggage carries, with load set to this tester.
Adjust the distance between front and rear wheel base on the standard for complete cycles, constantly rotate the wheel is by 7-27km/hr and the bike is supposed to maintain its normal function, no part damage or crack is found. For brake test, follow the specification specified roller’s friction coefficient, wind speed and water-spray amount of loaded brake & handlebars to test the performance
Designed standard:
EN14764, EN14765 (City and trekking bicycle Part 4, Bicycle for young children Part 4)
Main technical:
|
Model |
TT-1052DB |
TT-1052B |
TT-1052D |
|
|
|
Brake & run test |
Brake test |
Run test |
|
|
Adjust range between front & rear wheels |
mm |
860~1200/(600~1200 optional) / Customer specified |
||
|
Counter setting |
diameter |
760/(560 optional ) / Customer Specified |
||
|
Jump block amount& combination phase |
EN14764 standard |
|
EN14764 standard |
|
|
power |
Servo Motor + reducer + Clutch |
AC Reduce Motor+ speed Regulation+ clutch |
||
|
Testing speed(km/hr) |
7-26km/hr(special speed-upon request) |
|||
|
Crank Drive Mechanism(optional) |
Testing speed(km/hr) |
7-26km/hr(special speed-upon request) |
||
|
Counter Weight |
Seat Post(Kg) |
36 |
Overall Weight 120 |
|
|
Pedals(Kg) |
18 |
|||
|
Handlebar(Kg) |
6.75 |
|||
|
Luggage Carriers(Kg) |
10.18.25.according to luggage carriers, area 204X240(Assembly Type) |
|||
|
Head Tube(Kg) |
14 |
|||
|
Force to Brake Handlebars |
|
ConformEN14764 Standard(Auto weight 40~180N) |
||
|
|
|
|
|
|
|
Brake Force |
Brake Force(N) |
700 ±1 |
N/A |
|
|
Resolution |
N/A |
|||
|
Accuracy |
N/A |
|||
|
Power |
3;220V;50HZ(3;380V optional) |
|||
|
Consumption |
KW |
10 |
5 |
8 |
|
Dimension(WxDxH) |
3030x1200x2900mm (Ref Only) |
|||
|
Standard Accessories |
Tool Kitx1, Operational Manual in English x1, Testing dead weigh, Warranty Certificationx1 |
|||
Brake test velocities and braking distance:
Ref: (EN14764)
|
Condition |
Velocity(Km/h) |
Brakes in use |
Braking distance |
|
Dry |
25 |
both |
7 |
|
Real only |
15 |
Quality guarantee
1) Quality assurance items
The guarantee period is one year
2) The main quality warranty maintenance certificate
If there is any dispute please refer to our guarantee letter, so:
a. Please keep this guarantee letter, if you lost it, please connect with us in a month.
b. If this guarantee letter has been altered or it has no our stamp, it is useless.
3) The following conditions need to pay reasonably even in the assurance period:
Natural reasons
Operating mistakes
Voltage is not fit for our operation instruction
Repack it without our guides
Damaged for borrowing to others
Damaged for authorized machine modification
Damaged for authorized calibration
Authorized transshipment mistake
Serve for long distance area
4) Attentions
Any service in Taiwan or outside Taiwan, transport and travel fees shall be paid by the customer.
Any service outside Guangdong, transport and travel fees shall be paid by the customer.
