Bypass Diode Water Immersion Tank For Precise Temperature Control And Safety
  • name
  • name
  • name
  • name

Bypass Diode Water Immersion Tank For Precise Temperature Control And Safety

Brand Name: HAIDA
MOQ: 1
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Type:
Storage Water Tank
Accuracy Class:
Standard Accuracy
Accuracy:
Within ±15%
Application:
PV
Customized Support:
OEM, ODM
Power:
220V 50Hz
Protection Class:
/
Voltage:
220V Electrical Equipment
Warranty:
1 Year
Internal Dimension:
700*700*1200mm
External Dimension:
1000*1000*1320mm
Max Sample Size:
300*400*100mm
Sample Lifting Method:
Equip Electric Hoist For Carry Sample Up And Down
Sample Weight:
Maximum Up To 100kg
Power:
Single Phase, 220V 50Hz
Test Standard:
IEC 60529 - IPX7
Highlight:

Bypass Diode Water Immersion Tank

,

Safety Bypass Diode Water Immersion Tank

Product Description
Bypass Diode Water Immersion Tank
Product Overview

The Bypass Diode Water Immersion Tank is designed for comprehensive testing of electronic components and devices under water immersion conditions, ensuring compliance with international safety standards.

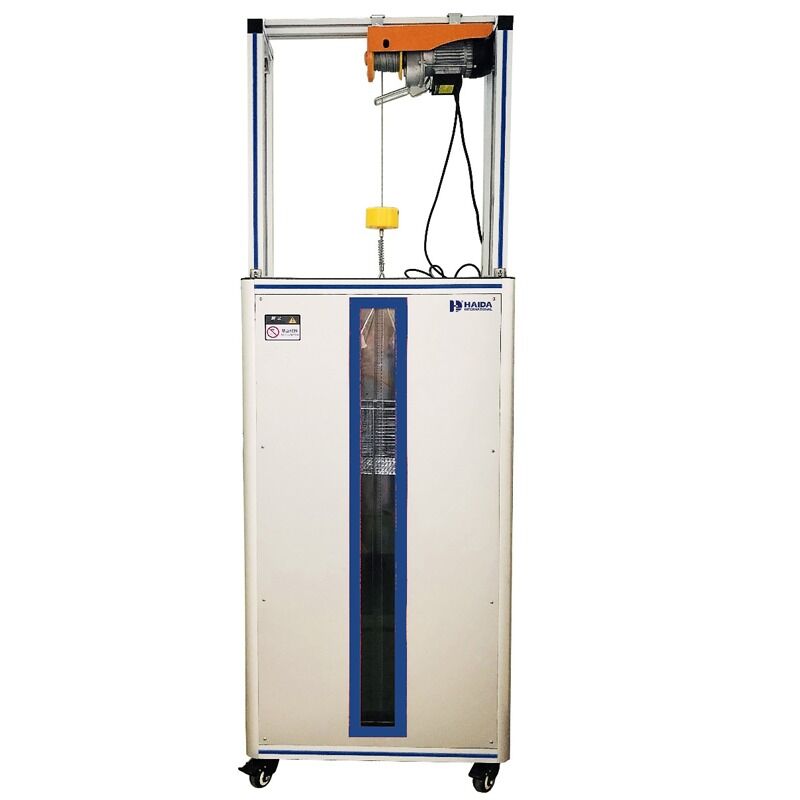

Bypass Diode Water Immersion Tank - Main Product View Bypass Diode Water Immersion Tank - Detailed View
Technical Specifications
Item Specification
Internal Dimension 700 × 700 × 1200 mm
Test Basket Equipped with test basket, basket dimension: 500 × 400 × 200 mm
External Dimension 1000 × 1000 × 1320 mm
Max Sample Size 300 × 400 × 100 mm
Sample Lifting Method Equipped with electric hoist for carrying sample up and down
Sample Weight Maximum up to 100 kg
Chamber Material Internal: 304 stainless steel
External: Aluminium frame and aluminium-plastic sealing board with transparent observation window (water level display scale: 1 cm)
Power Single phase, 220V 50Hz
Test Standard IEC 60529 - IPX7
Detailed Drawings
Bypass Diode Water Immersion Tank - Technical Drawing
Our Service & Support
Technical Support
  • Reply within 48 hours for any testing process problems
  • Solution provided within 3 working days
  • Operation videos and English operation manual available
  • Video conference support
Onsite Services
  • Device installation
  • Equipment operation test technology training
  • Equipment calibration
  • Daily maintenance and equipment maintenance
  • Free technical training for visiting factories
  • 24-hour online contact
  • Free software upgrades
Documentation & Resources
  • Product instruction manuals
  • Product operation instructions/videos
  • Experiment test applications and reports
Problem Resolution
  • Social media 24-hour online communication
  • Seamless email support
  • Video conferencing assistance
  • Free on-site technical service
