Single Workstation Sanitary Hose 1000-Hour Continuous Pressure Tester

Brand Name:	HAIDA
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

Testing Machine

Application:

Tissue Paper Test

Customized Support:

OEM, ODM

Power:

220V 50HZ

Protection Class:

Voltage:

220V Electrical Equipment

Warranty:

1 Year

Logo/graphic Design:

Hot Stamping, Screen Printing

Number Of Workstations:

Single Workstation

Test Pressure:

0 ~0.1 PA (adjustable), 0.5% Full Scale Accuracy

Pressure Adjustment:

Manual Control

Observation Tube ID:

13 Mm

Immersion Depth:

13 Mm

Vacuum Generation:

Vacuum Pump

Test Fixtures:

Customized Per Specification (≥2 Pcs Each)

Timer Range:

0-99.99 (Hours, Minutes, Seconds)

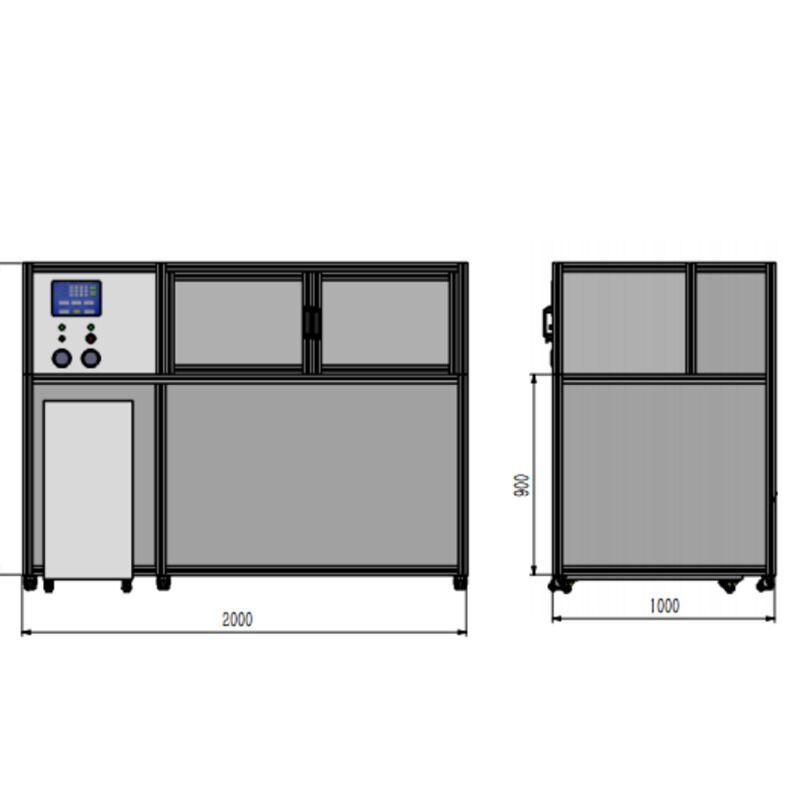

Dimensions:

1000x1000x1600 Mm

Weight:

Approx. 120 Kg

Highlight:

Single Workstation Continuous Pressure Tester

Sanitary Hose Continuous Pressure Tester

Product Description

Sanitary Hose 1000-Hour Continuous Pressure Tester

Product Overview

The Sanitary Hose 1000-Hour Continuous Pressure Tester is designed according to DS125 standards to conduct comprehensive simulation testing on sanitary hose products. The equipment fully immerses test specimens in a heated water tank while maintaining precise pressure control up to 500 PSI.

Technical Specifications

Test Specimens	6 pcs (12 outlets or water outlets)
Water Tank Temperature	Room Temperature - 90°C (Settable)
Water Temperature	Displayable
Water Tank Dimensions	Approx. 1300 × 1000 mm (W × D)
Air Pump	0-3.5 MPa (Usable with air or water pressure)
Sample Interface	Customized according to product design
Control System	PLC Software
Operation Interface	7" Color Touch Screen
Power Supply	380V/50HZ
Air Source	≥6 kg/cm²
Material	SUS304 Stainless Steel
