Sanitary Tapware Thermostatic Valve Performance Test Machine Valve Performance Tester

Brand Name:	HAIDA
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

Testing Machine

Application:

Tissue Paper Test

Customized Support:

OEM, ODM

Power:

220± 10% V /50Hz

Protection Class:

Voltage:

220V Electrical Equipment

Warranty:

1 Year

Test Stations:

Six Stations (simultaneous Control)

Test Times:

1 To 99,999,999 Times Can Be Set

Test Angle:

0-360° Can Be Set

Test Speed:

1 To 10 Times Per Minute

Control Mode:

PLC Program

Operating Mode:

Touch Screen

Feature:

The Dwell Time For Forward And Reverse Rotation Can Be Set

Power Supply:

220± 10% V /50Hz

Highlight:

Sanitary Tapware Performance Tester

Tapware Thermostatic Valve Performance Test Machine

Product Description

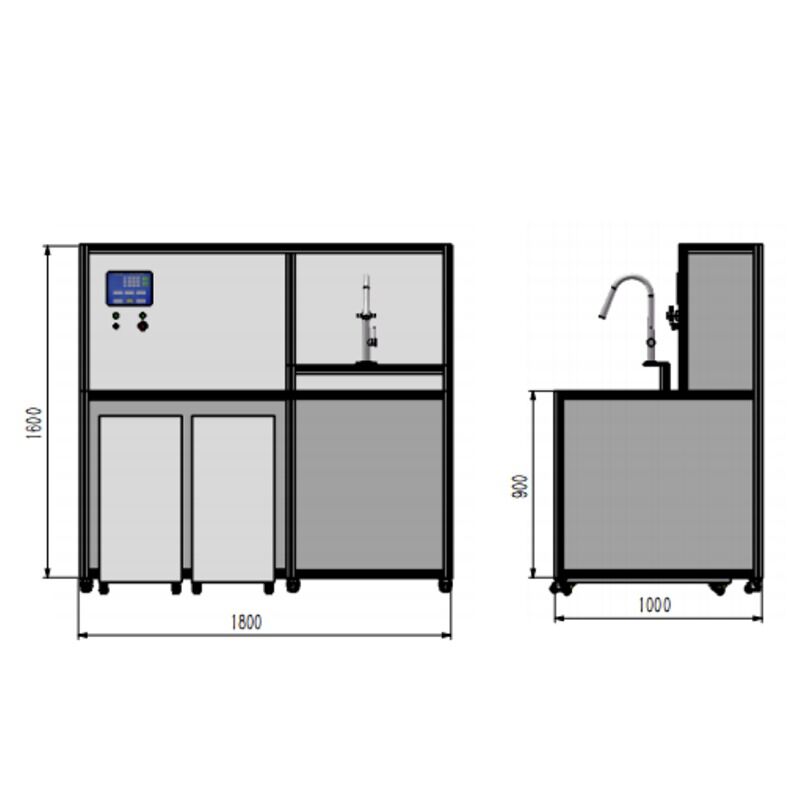

Sanitary Tapware Thermostatic Valve Performance Test Machine

The equipment is designed according to the requirements of ASSE1016-2017 and EN1111-2017 standard terms and conditions. It performs thermostatic valve water temperature stability tests, cold water loss of supply temperature tests, and mechanical life and performance tests.

The equipment comes with a water tank but uses heating and refrigeration systems to control hot and cold water temperatures. Through different operational modes, it conducts corresponding tests for various thermostatic valve configurations. The equipment features water pressure adjustment, flow measurement, and water temperature indication capabilities.

Technical Specifications

Test Functions	Thermostatic valve performance test, faucet outlet sensitivity test
Hot and Cold Water Units	1 set 2000L
Temperature Range	-5~90℃ (configurable)
Temperature Detection	Inlet and outlet
Operation Mode	Computerized
Operating Time	99H59M59S
Power Supply	380V/50HZ
Material	SUS304 stainless steel
Flow Rate	Maximum 50L/min/pressure 0-8kg
Water Pressure Regulation	Automatic adjustment
Water Pressure Range	0.1--0.8MPa
Temperature Measurement	Outlet temperature measurement using J-type thermocouple

System Components

Water Cooler:

Air-cooled chiller for refrigeration
Cold water tank uses electrode type water level switch for monitoring
Temperature range: 5℃-RT

Hot Water Tank:

Stainless steel heating tube for heating
Hot water tank uses electrode type water level switch for monitoring
Temperature range: RT-85℃

Compliance Standards

ASSE1016-2017, EN1111-2017

Company Profile

Our Partners

Our Service Advantages

Technical Support:

48-hour response time for technical problems
Solutions provided within 3 working days
Operation videos and English manuals available
Video conference support

Onsite Services:

Device installation
Equipment operation and test technology training
Equipment calibration
Daily maintenance and equipment upkeep
Free technical training for factory visits
24-hour online contact
Free software upgrades

Documentation Provided:

Product instructions
Product operation instructions/videos
Experiment test applications and reports

Problem Resolution:

24-hour social media communication
Seamless email support
Video conferencing
Free on-site technical service
