220V 50HZ Toilet Seat Falling Ball Impact Test Machine

Brand Name:	HAIDA
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

Testing Machine

Application:

Tissue Paper Test

Customized Support:

OEM, ODM

Power:

220V 50HZ

Protection Class:

Voltage:

220V Electrical Equipment

Warranty:

1 Year

Logo/graphic Design:

Hot Stamping, Screen Printing

Impact Height Range:

0-1000mm (manually Adjustable, Steel Ruler Shows Scale)

Specimen Size:

Toilet Seat Size

Drop Height Display:

Graduated Steel Ruler Indicates Vertically

Drop Height Accuracy:

1mm

Drop Bar Shape:

Square Rod

Impact Ball Specification:

225g 38mm

Control Box:

Protective Mesh Box Around The Bottom

Volume Approx:

1000*1000*1050mm

Highlight:

Toilet Seat Falling Ball Impact Test Machine

220V Falling Ball Impact Test Machine

Product Description

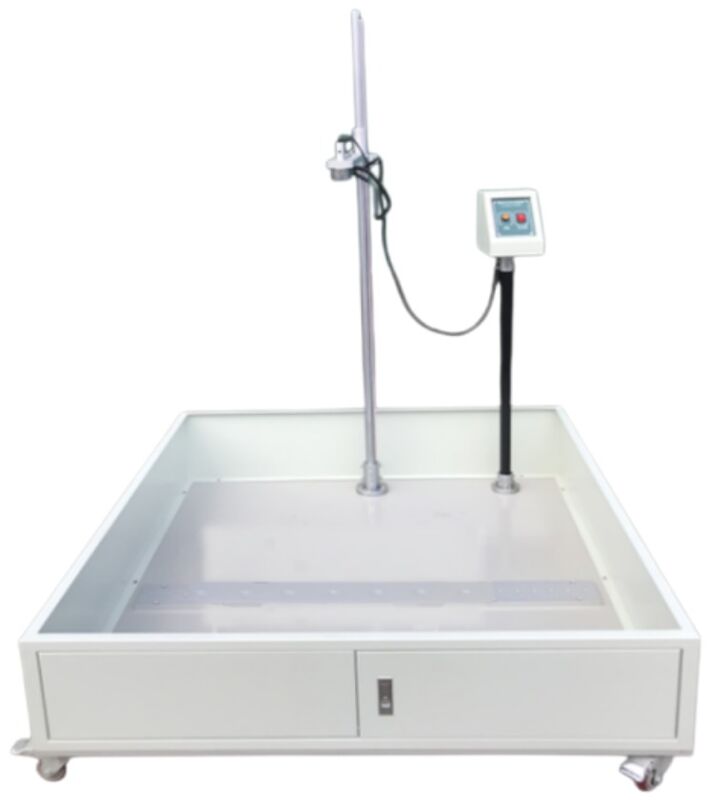

Toilet Seat Falling Ball Impact Test Machine

5062-HD

This machine is designed for testing electronics, electrical appliances, home appliances, plastics, communication devices, and other finished products or components during installation. It assesses product structure durability by dropping a specified weight steel ball from a certain height onto test materials and components, then observing the degree of damage.

Technical Standards

STANDARD: JC/T 764-2008 5.4.7

Test Procedure

A steel ball with a diameter of 38 mm and a mass of 0.225 kg is dropped freely from a height of 455 mm to the center of the front of the center ring and the center of the middle of the ring. The impact positions are shown in the illustration.

Specifications

Parameter	Specification
Impact height range	0-1000mm (manually adjustable, steel ruler shows scale)
Specimen size	Toilet seat size
Drop height display	Graduated steel ruler indicates vertically
Drop height accuracy	1mm
Drop bar shape	Square rod
Control and lifting method	Circuit-controlled electromagnet suction cup, manually lifting and lowering electromagnet fixing rod
Alignment device	Infrared positioning, convenient for fixed-point testing
Impact ball specification	225g (φ38mm)
Control box	Protective mesh box around the bottom
Volume	Approx. 1000×1000×1050mm
Power Supply	AC220V 50Hz
