Tissue Paper Softness Tester Toilet Paper Softness Test Machine

Tissue Paper Softness Tester Toilet Paper Softness Test Machine

Brand Name:	HAIDA
MOQ:	1
Price:	$2,380-3,180

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

Test Machine

Accuracy Class:

Standard Accuracy

Accuracy:

±0.5%~±1.0% FS

Application:

Tissue Paper Test

Customized Support:

OEM, ODM

Power:

/

Protection Class:

/

Voltage:

220 V

Warranty:

1 Year

Display:

7-inch Color Touch Screen Display

Measure Range:

10~1000 MN

Resolution:

0.1mN

Indication Error:

±1% (Range 5%~100%)

Total Probe Stroke:

12±0.5mm(adjustable)

Probe Indentation Depth:

8mm

Result Output:

Thermal Printer

Communication Interface:

RS-232 (USB, WIFI Optional)

Dimension:

425*290*300 Mm(L*W*H)

Net Weight:

20Kg

Highlight:

Softness Test Machine

,

Tissue Paper Softness Tester

,

Toilet Paper Softness Test Machine

Product Description

Tissue Paper Softness Tester Toilet Paper Softness Test Machine

Product Overview

HD-T004 Tissue Paper Softness Tester is applicable to tissues paper, tobacco flakes, fibre fabrics, non-woven fabrics, fabrics, films and other industries. This high-precision intelligent tester adopts modern mechanical design concepts and microcomputer processing technology for reliable performance.

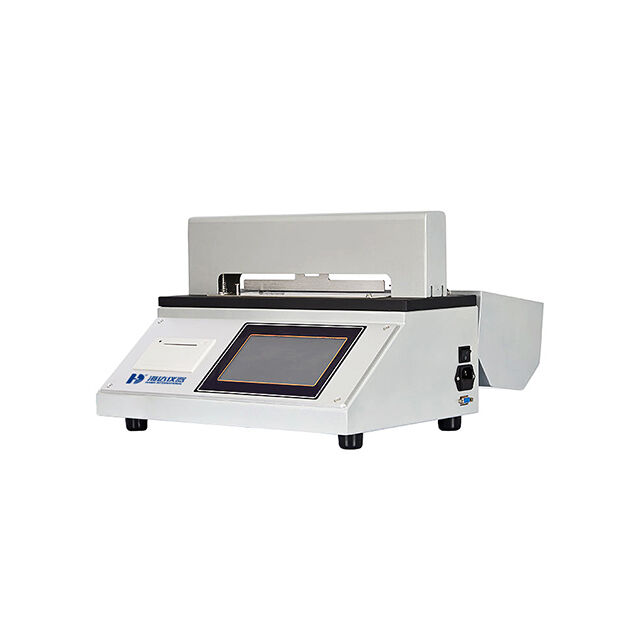

HD-T004 Tissue Paper Softness Tester

Close-up view of Tissue Paper Softness Tester

Technical Specifications

Item	Value
Type	Test Machine
Customized support	OEM, ODM
Place of origin	Guangdong, China
Voltage	220V
Warranty	1 Year
Brand name	HAIDA
Application	Tissue Paper Test
Display	7-inch color touch screen display
Measure range	10~1000 mN
Resolution	0.1mN
Indication error	±1% (Range 5%~100%)
Total probe stroke	12±0.5mm(adjustable)
Probe indentation depth	8mm
Test speed	1.2±0.012 mm/s (72±0.72 mm/min) (1-250 mm/min adjustable)
Specimen table clamping width	5/6.35/10/20mm(Four adjustable gears)
Slit parallelism error	≤0.05mm
Probe centering error	≤0.05mm
Result Output	Thermal printer
Communication interface	RS-232 (USB, WIFI optional)
Dimension	425290300 mm(LWH)
Net weight	20Kg
Power Supply	AC 220V±10V 50Hz

Test Standards

GB/T8942
QB/T1060

Design Features

One-click test, easy to operate
ARM processor for improved response speed and accurate, fast calculation
Real-time display of pressure curve
Leverage principle to reduce data fluctuation caused by vibration
Sudden power outage data saving function
Equipped with micro thermal printer for data analysis and statistics
Software and hardware over-range protection for sensor safety
Compatible with microcomputer software (purchased separately)
