Ceramic Comprehensive Tester for Flatness , Straightness and Straightness Test Machine

Brand Name:	HAIDA
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

Testing Machine

Application:

Plastic Testing, Rubber Testing

Customized Support:

OEM, ODM

Power:

AC 220V, 50Hz

Protection Class:

Voltage:

220 V

Warranty:

1 Year

Logo/graphic Design:

Hot Stamping, SCREEN PRINTING

Measurement Accuracy:

±0.1mm

Measurement Range:

Djustable From 100*100~ 600*600mm

Highlight:

Straightness Ceramic Tester

Flatness Ceramic Tester

Comprehensive Ceramic Tester

Product Description

60091-HD

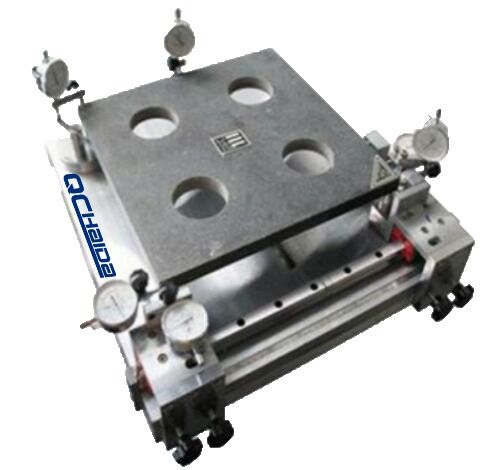

Ceramic Comprehensive Tester

This instrument is suitable for measuring the size and shape characteristics of various wall and floor tiles. Its measured parameters include several indicators such as the straightness, perpendicularity, length, and flatness (center curvature, edge curvature, and curvature) of the tiles. These six types of data can be quickly and accurately measured in one placement during the measurement.

Test Standard

GB/T3810.2-2016, ISO 10545-2-1995, EN98-84/BS6431, and ASTM C485-83

Specification

Measurement accuracy	±0.1mm
Measurement range	adjustable from 100100~ 600600mm, 100100~800800mm, and 100100~10001000mm for optional

Needs to be equipped with a standard board for testing, and the size of the standard board is one-to-one with the size of the test sample; Standard plates (made of aluminum alloy) for ceramic tile testing, such as 1000*1000, 800*800, 600*600 (mm), etc., can be customized to various specifications according to customer requirements. The accuracy of the above standard board is better than 0.1mm (optional) Using linear bearings as guide rails makes operation more convenient.
