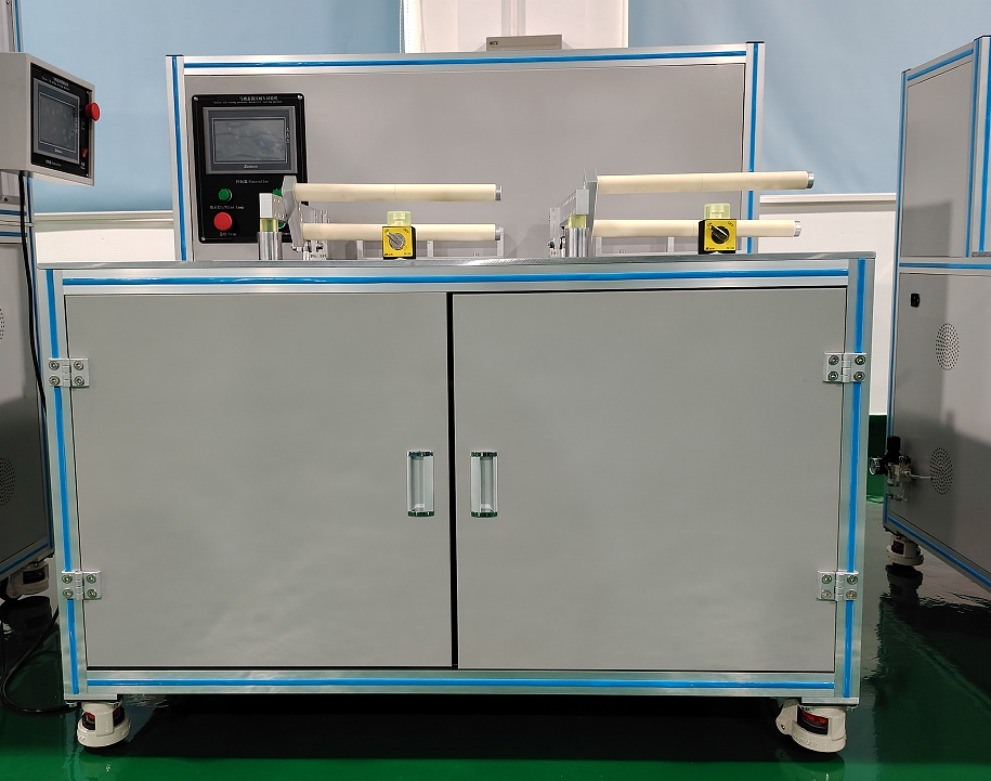

Toilet Seat Cover Pressure Resistance Test Machine Toilet Seat Cover Tester

Brand Name:	HAIDA
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

Testing Machine

Application:

Tissue Paper Test

Customized Support:

OEM, ODM

Power:

220V 50HZ

Protection Class:

Voltage:

220 V

Warranty:

1 Year

Logo/graphic Design:

Test Station:

2 Stations

Number Of Tests:

0-999999 Times Programmable

Frequency Of Tests:

5-15 Times/min

Opening Angle:

0-120° Programmable

Opening Pause Time:

0.1-99s Programmable

Push Cover Position:

Intermediate Parts

Opening Mode:

Cylinder

Control Mode:

PLC

Operation Mode:

Touch Screen

Air Source:

0.4-0.6Mpa

Highlight:

Pressure Cover Tester for Toilet Seat

Toilet Seat Cover Tester

Product Description

5056-HD

HD-T011 Tissue Paper Dispersibility Tester

This machine is simulate the action of a person to open and close the toilet cover, first lift the cover over the plane 90 degrees and then release it to the position where the toilet cover is completely open, and then force the cover to fall down so that the cover falls down through the strong force, and so on repeated actions to detect whether the product is damaged and the actual number of tests and record the actual number of tests through the electronic digital counter, and automatically shut down once the test piece is destroyed or the test piece reaches the set number of times. STANDARD JC/T 764-2008 5.4.7

Specification

Test station	2 stations
Number of tests	0-999999 times programmable
Frequency of tests	5-15 times/min
Opening angle	0-120° programmable
Opening pause time	0.1-99s programmable
Opening mode	Cylinder
Pressure mode	Cylinder
Push cover position	Intermediate parts
Test mode	Ø The upper and lower toggles are adjusted in place according to the product size. Ø Set the relevant test conditions flip angle, rise flip time, fall flip time Ø Start the equipment to start the test
Control mode	PLC
Operation mode	Touch Screen
Power supply	220V 50HZ
Air source	0.4-0.6Mpa
Weight	20Kg
Power supply	AC220V, 0.5KW

Specification

INDA and EDANA Flushability Testing Guidelines
According to a Code of Practice directive within the Flushability Testing Guidelines, a product that passes all seven tests will be considered flushable. The standards set forth by INDA and EDANA include the following flushability tests:
* FG501.R1(18) Toilet Bowl & Drain Line Clearance Test
* FG502.R1(18) Slosh Box Disintegration Test
* FG503.R1(18) Household Pump Test
* FG504.R1(18) Settling Test
* FG505A.R1(18) Aerobic Biodisintegration Test
* FG506A.R1(18) Anaerobic Biodisintegration Test
* FG507.R1(18) Municipal Sewage Pump Test

Design Features
* Color touch screen display and control, Chinese and English interface, menu-based operation mode.

* Imported rotor flowmeter.
* The core control component adopts ST's 32-bit multi-function motherboard.
