Toilet Seat Ring and Cover Static Load & Impact Test Machine

Brand Name:	HAIDA
Model Number:	5057-HD
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

Testing Machine

Application:

Tissue Paper Test

Customized Support:

OEM, ODM

Power:

220V 50HZ

Protection Class:

Voltage:

220 V

Warranty:

1 Year

Logo/graphic Design:

Test Station:

2 Stations

Number Of Tests:

0-999999 Times Programmable

Frequency Of Tests:

5-15 Times/min

Opening Angle:

0-120° Programmable

Opening Pause Time:

0.1-99s Programmable

Push Cover Position:

Intermediate Parts

Opening Mode:

Cylinder

Control Mode:

Operation Mode:

Touch Screen

Air Source:

0.4-0.6Mpa

Highlight:

Cover Static Load Impact Test Machine

Toilet Seat Ring Impact Test Machine

Product Description

5057-HD

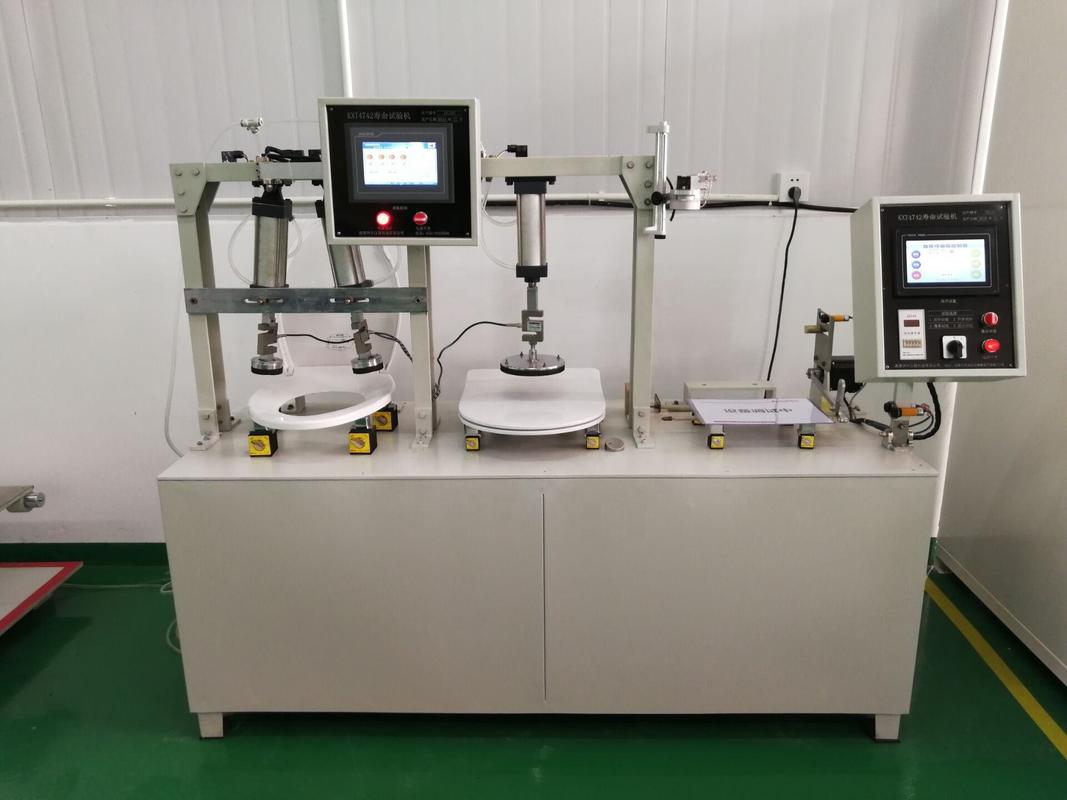

Toilet seat ring and cover Static load & impact test machine

This equipment is driven by compressed air cylinder piston for sample loading, is based onJC/T 764 Toilet seat ring and cover , and ANSI Z 124.5 Plastic toilet seats the design and fabrication of related standards and requirements. The machine owns the feachures simple operation, stable loading, high measurement precision, high degree of automation, is the ideal of life test equipment for toilet seat and cover. The equipment consists of pneumatic loading device, sample mounting frame, sample supporting block, sample lifting device, impact adjusting device and touch control system. Test items: 1. Open and close test; 2. Slow falling function life test; 3. Strong pressure test; 4. Impact test; 5. Swing test; 6. Static load test.

Specification

Equipment power supply:	AC 220V, 1.0kW
Cylinder loading force:	0-2200 N, adjustable, ≤5%
Timing accuracy:	less than 0.01s
Functions	Automatic counting and arbitrary setting
Angle measurement accuracy:	0.5%
Open/close slow falling pressure	Angle 0-100 °, adjustable
Number of stations:	3 (1 swing station; 1 static load station; 1 open/close and impact station)
Test load accuracy:	1%
Pressure resolution:	1N

Specification

INDA and EDANA Flushability Testing Guidelines
According to a Code of Practice directive within the Flushability Testing Guidelines, a product that passes all seven tests will be considered flushable. The standards set forth by INDA and EDANA include the following flushability tests:
* FG501.R1(18) Toilet Bowl & Drain Line Clearance Test
* FG502.R1(18) Slosh Box Disintegration Test
* FG503.R1(18) Household Pump Test
* FG504.R1(18) Settling Test
* FG505A.R1(18) Aerobic Biodisintegration Test
* FG506A.R1(18) Anaerobic Biodisintegration Test
* FG507.R1(18) Municipal Sewage Pump Test

Design Features
* Color touch screen display and control, Chinese and English interface, menu-based operation mode.

* Imported rotor flowmeter.
* The core control component adopts ST's 32-bit multi-function motherboard.

Company Profile

Our Partners

Our Advantages

Our Service

* If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days.
* We can offer operation video and English operation muanual.
* We can provide video-con.

Onsite Service:
* Device installation;
* Equipment Operation Test Technology training;
* Equipment Calibration;
* Daily maintenance and maintenance of equipment
* Free technical training for visiting factories
* 24-hour Online contact
* Free software upgrades
* Free information:
* Product Instruction;
* Product operation instruction/video;
* Experiment Test (test application, test report)

Device Problem Handling:
* Social media 24 hours online communication;
* Mail Seamless Docking;
* Video Conferencing;
* Artificial free door-to-door service
