Toilet Seat Ring and Cover Swing Life Test Machine

Brand Name:	HAIDA
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

Testing Machine

Application:

Tissue Paper Test

Customized Support:

OEM, ODM

Power:

220V 50HZ

Protection Class:

Voltage:

220 V

Warranty:

1 Year

Logo/graphic Design:

Test Station:

2 Stations

Number Of Tests:

0-999999 Times Programmable

Frequency Of Tests:

5-15 Times/min

Opening Angle:

0-120° Programmable

Opening Pause Time:

0.1-99s Programmable

Push Cover Position:

Intermediate Parts

Opening Mode:

Cylinder

Control Mode:

PLC

Operation Mode:

Touch Screen

Air Source:

0.4-0.6Mpa

Highlight:

Seat Cover Swing Life Test Machine

Toilet Cover Swing Life Test Machine

Product Description

5058-HD

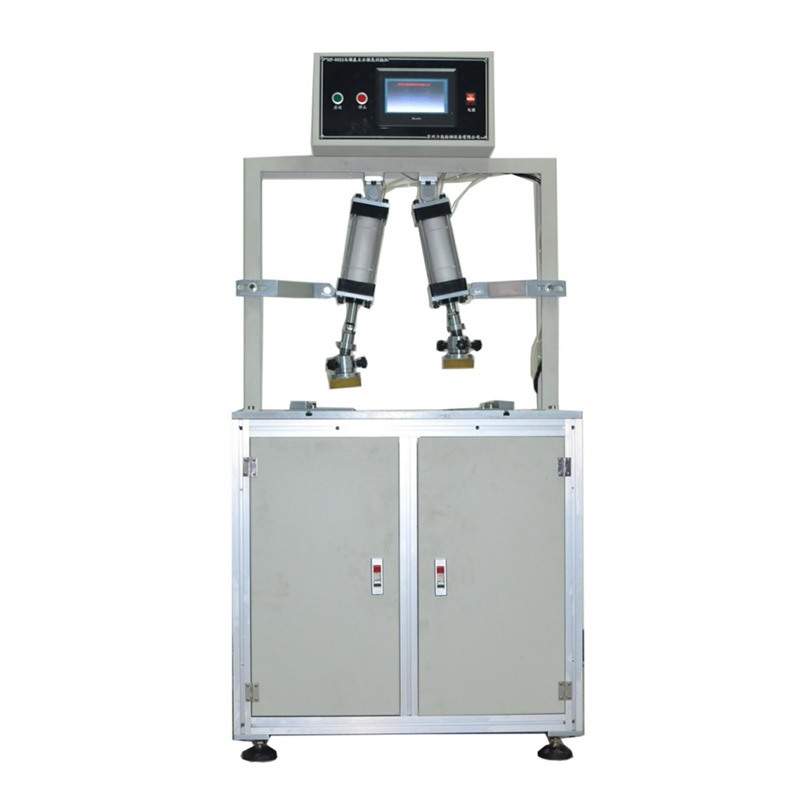

Toilet seat ring and cover swing life test machine

This equipment is developed for the swing life test of toilet seat rings and covers. During the test, the sample was installed on the test platform. Two cylinder mechanical hands on the left and right alternately pushed and pressed the seat ring and the cover, with a pushing time of 1 second and an interval of 0.5 seconds, to verify the force conditions of the sample during normal use. TEST STANDARD: JCT 764-2008《Toilet seat ring and cover》Appendix A

Specification

Function	Swing life test of toilet seat ring and cover
Swing thrust	0-2000N(adjustable)
Force application method	Pressure is applied by the cylinder, and the force value is adjusted by regulating the air pressure
Cylinder specifications:	Cylinder inner diameter φ50.8mm, stroke 127mm
Pressure plate specification	Diameter φ76.2mm, thickness 19mm
Force application time	0-99.9 seconds (adjustable)
Force measurement method	Before the test, the air pressure at which the force value is set is calibrated through the force sensor. During the test, the test air pressure is maintained to accurately measure the force value
Control mode	PLC+ human-machine interface
Working cycles	0- 99,999 times can be set;
Power supply	220± 10% V /50Hz;
Dimensions	Length 1000mm x Width 800mm x Height 1500mm
Features	Formed aluminum frame,Formed aluminum frame

Specification

INDA and EDANA Flushability Testing Guidelines
According to a Code of Practice directive within the Flushability Testing Guidelines, a product that passes all seven tests will be considered flushable. The standards set forth by INDA and EDANA include the following flushability tests:
* FG501.R1(18) Toilet Bowl & Drain Line Clearance Test
* FG502.R1(18) Slosh Box Disintegration Test
* FG503.R1(18) Household Pump Test
* FG504.R1(18) Settling Test
* FG505A.R1(18) Aerobic Biodisintegration Test
* FG506A.R1(18) Anaerobic Biodisintegration Test
* FG507.R1(18) Municipal Sewage Pump Test

Design Features
* Color touch screen display and control, Chinese and English interface, menu-based operation mode.

* Imported rotor flowmeter.
* The core control component adopts ST's 32-bit multi-function motherboard.

Company Profile

Our Partners

Our Advantages

Our Service

* If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days.
* We can offer operation video and English operation muanual.
* We can provide video-con.

Onsite Service:
* Device installation;
* Equipment Operation Test Technology training;
* Equipment Calibration;
* Daily maintenance and maintenance of equipment
* Free technical training for visiting factories
* 24-hour Online contact
* Free software upgrades
* Free information:
* Product Instruction;
* Product operation instruction/video;
* Experiment Test (test application, test report)

Device Problem Handling:
* Social media 24 hours online communication;
* Mail Seamless Docking;
* Video Conferencing;
* Artificial free door-to-door service
