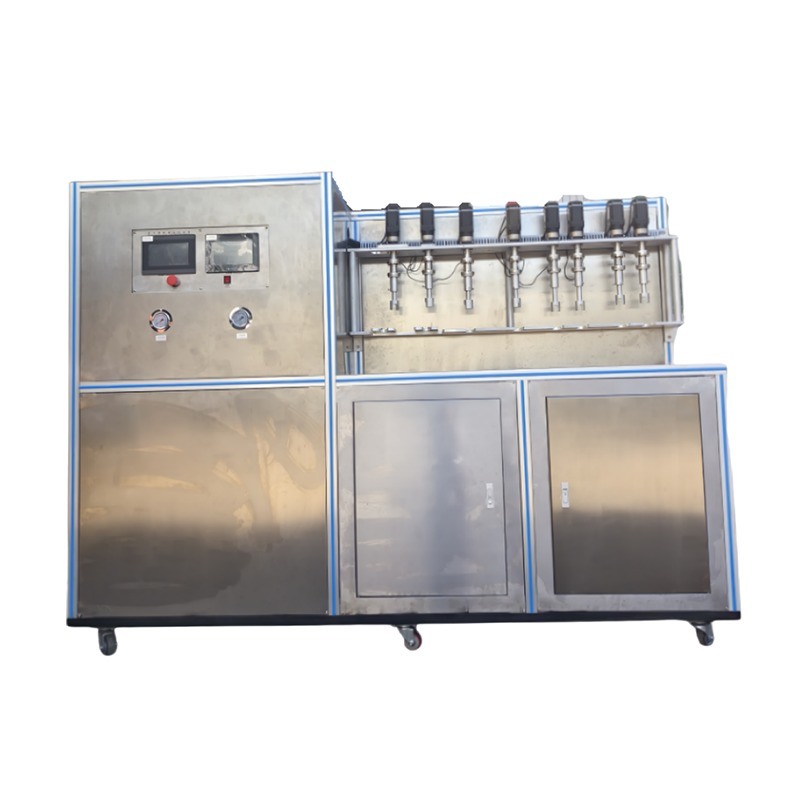

Sanitary Tapware Quick-On Valve Cartridge Life Test Machine

Brand Name:	HAIDA
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

Testing Machine

Application:

Tissue Paper Test

Customized Support:

OEM, ODM

Power:

220V 50HZ

Protection Class:

Voltage:

220 V

Warranty:

1 Year

Logo/graphic Design:

Test Station:

2 Stations

Number Of Tests:

0-999999 Times Programmable

Frequency Of Tests:

5-15 Times/min

Opening Angle:

0-120° Programmable

Opening Pause Time:

0.1-99s Programmable

Push Cover Position:

Intermediate Parts

Opening Mode:

Cylinder

Control Mode:

PLC

Operation Mode:

Touch Screen

Air Source:

0.4-0.6Mpa

Highlight:

Sanitary Tapware Life Test Machine

Sanitary Tapware Cartridge Life Test Machine

Product Description

5074-HD

IEC 60335-2-84 Toilet Seat Endurance Test machine

This machine is designed to conduct the life test of the quick-opening valve core under the test conditions of ASMEA112.18.1-2005/CSAB125.1-05/GB18145 and EN817. STANDARD ASMEA112.18.1-2005/CSAB125.1-05/EN817

Specification

Test Sample	4 inch quick open x 2 pcs, 8 inch quick open x 2 pcs
Plumbing Units	1 Set 500L
Temperature Range	5℃ ~ 90℃ can be set.90℃ hot and cold can be individually selected temperature.
Operating time	99H59M59S can be set (working time can be set without stopping, including pause button.)
Water return	Suction pump
Test speed	0-30 times/min can be set
Counting function Sample angle opening	0-99999999 can be set adjustable
Control mode	PLC software
Operation Mode	7" color touch screen
Power Supply	380V/50HZ,24KW
Power Air Source	6kg
Material	SUS304 stainless steel
Control the action of the product	Independently control the up and down, left and right movements of each product. As shown in the figure, the installation block can be adjusted up and down and can also slide left and right.

Specification

INDA and EDANA Flushability Testing Guidelines
According to a Code of Practice directive within the Flushability Testing Guidelines, a product that passes all seven tests will be considered flushable. The standards set forth by INDA and EDANA include the following flushability tests:
* FG501.R1(18) Toilet Bowl & Drain Line Clearance Test
* FG502.R1(18) Slosh Box Disintegration Test
* FG503.R1(18) Household Pump Test
* FG504.R1(18) Settling Test
* FG505A.R1(18) Aerobic Biodisintegration Test
* FG506A.R1(18) Anaerobic Biodisintegration Test
* FG507.R1(18) Municipal Sewage Pump Test

Design Features
* Color touch screen display and control, Chinese and English interface, menu-based operation mode.

* Imported rotor flowmeter.
* The core control component adopts ST's 32-bit multi-function motherboard.
