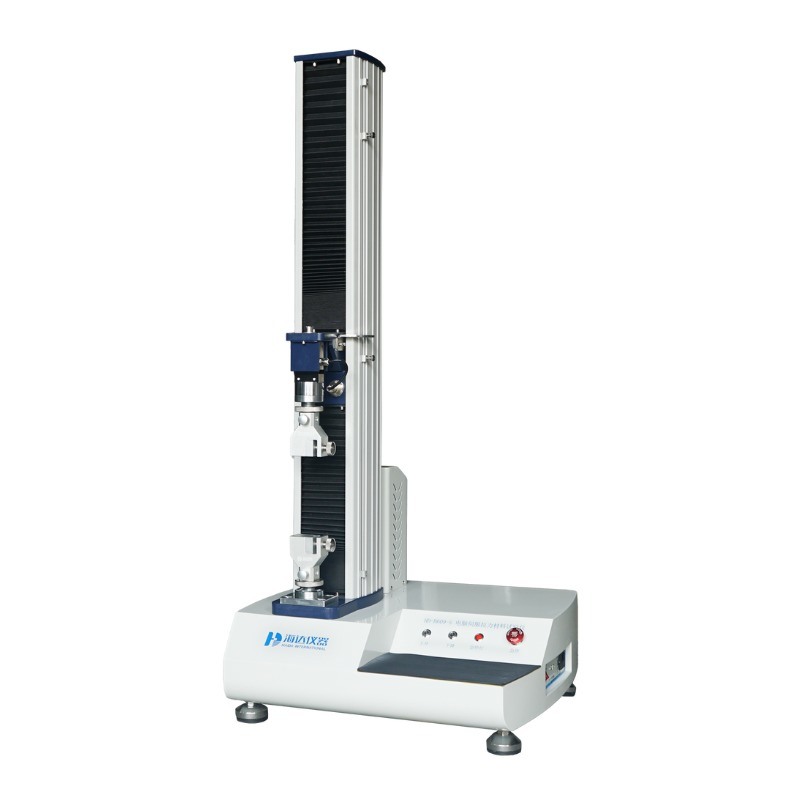

Sanitary Hose Tensile Testing Machine Universal Tensile Strength Tester

Brand Name:	HaiDa
MOQ:	1
Price:	$2,400-4,250

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

Testing Machine

Accuracy:

≤0.5%

Application:

Tissue Paper Test

Customized Support:

OEM, ODM

Power:

500w

Protection Class:

Voltage:

220 V

Warranty:

1 Year

Logo/graphic Design:

Hot Stamping, SCREEN PRINTING

Load Capacity:

50N/1kN/2kN

Motor:

400w Servo Motor

Driver:

400w Servo Driver

Control Method:

Computer/touch Screen Control

Data Output:

USB/Windows Mode /Office Mode /thermal Printer Output

Screw:

Ball Screw

Adjustable Speed:

0.1-500mm/min (Standard Test Speed 125± 0.1 Mm/min)

Unit Switching:

Gf/kgf/N//kN/LBf/T

Load Accuracy:

≤0.5%

Net Weight:

70Kg

Highlight:

Sanitary Hose Universal Tensile Strength Tester

Sanitary Hose Tensile Testing Machine

Product Description

Sanitary Hose tensile test machine

This machine is computer-controlled and is mainly test the tensile strength of hose of Shower and taps.

Specification

Item	Description
Load capacity	50N/1kN/2kN
Motor	400w servo motor
Driver	400w servo driver
Control method	Computer/touch screen control
Data output	USB/Windows mode /Office mode /thermal printer output (with printing curve function)
Screw	Ball screw
Adjustable speed	0.1-500mm/min (Standard Test speed 125± 0.1 mm/min)
Ball diameter	Φ16 ±0.05mm Sphericity: better than 1 µm.
Pressure ring diameter	Φ50±0.2 mm Optional: Φ89±0.2 mm
Vertical test space	900mm (Not including clamp)
Load resolution	1/250,000
Load accuracy	≤0.5%
Unit switching	gf/kgf/N//kN/LBf/T
Dimension	5805501250mm(LWH)
Net weight	70Kg
Power	1∮ AC 220V 500W
Curves display	Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display	Max. force, speed, sample information strength(Kpa, Mpa, N/mm, N/mm2) etc…
Safety features	E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat

Applications
* Tested sample: laminated materials, paper, wood, leather, rubber & plastic, metal material, etc.
* Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
* Deformation under defined load: Test deformation under defined load of tested sample
* Load under defined deformation: Test load under defined deformation of tested sample
* Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

Standard

* Dry: GB/T 24328.7-2020/ISO 12625-9:2015

* Wet: GB/T 24328.9-2020, ISO 12625-11: 2012

Clamps

Company Profile

Our Partners

Our Advantages

Our Service

* If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days.
* We can offer operation video and English operation muanual.
* We can provide video-con.

Onsite Service:
* Device installation;
* Equipment Operation Test Technology training;
* Equipment Calibration;
* Daily maintenance and maintenance of equipment
* Free technical training for visiting factories
* 24-hour Online contact
* Free software upgrades
* Free information:
* Product Instruction;
* Product operation instruction/video;
* Experiment Test (test application, test report)

Device Problem Handling:
* Social media 24 hours online communication;
* Mail Seamless Docking;
* Video Conferencing;
* Artificial free door-to-door service
