HD Bottle Axis Deviation Tester Deviation Testing Machine

Brand Name:	HAIDA
Model Number:	5078-HD
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO,CE,

Capacity:

500kg, Imported Load Cell

Load Resolution:

1/250,000

Load Precision:

Within ± 0.5%

Motor:

400W Panasonic Servo Motor

Test Speed:

0.1-500mm/min Adjustable

Dimensions:

(L*W*H)790 X 610 X 1100mm

Weight:

Approx. 170 Kg

Power:

1∮, 220V, 500W

Supply Ability:

300 Sets per Month Haida

Highlight:

HD Bottle Axis Deviation Tester

400W HD Bottle Axis Deviation Tester

Product Description

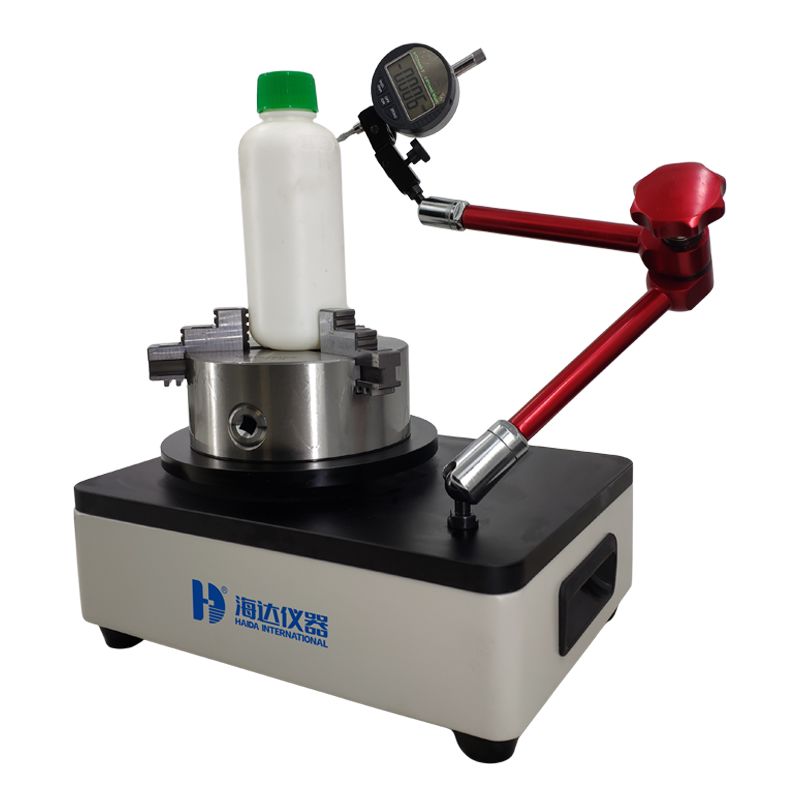

Bottle axis deviation tester

Description:

Fix the bottom of the bottle on the rotating disk of the horizontal plate, make the bottle mouth contact the micrometer, rotate 360° to read the maximum and minimum values, and 1/2 of the difference between the two is the vertical axis deviation value. The instrument uses the high concentricity of the four-claw self-centering chuck, with a set of high-freedom brackets that can freely adjust the height and orientation, to meet the testing of various glass bottles and plastic bottles.

Test Standards

QB2357, QB/T1868, YY 0056, YBB 00012012, GBT 8452, GB 2637, YBB 00332002, YBB 00042012, YBB 00052012

HD Bottle Axis Deviation Tester Deviation Testing Machine

Product Specifications

Model	5078-HD
Sample diameter	Positive claw 3-55mm, reverse claw 55-145mm
Centering chuck	Four-claw/three-claw optional
Measuring range	0-12.7mm
Measuring table positioning method	Universal bracket
Resolution	0.001mm
Indication error	±0.005mm
Measurement error	≤0.05mm
Measurable height	5mm-400mm
Data output method	Can connect to computer to output data to EXCEL, Word table for data statistical analysis; (optional)
Measurement parallelism	330mm240mm240mm
Weight	20kg

ABOUT HAIDA

HD Bottle Axis Deviation Tester Deviation Testing Machine

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
