Haida Thermal Conductivity Tester Flat Plate Thermofluidometer Method Surface Temperature Tester

Brand Name:	HAIDA
Model Number:	HD-60086
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO,CE,

Test Range:

0.005-300W/(m*K)

Test Mode A:

Room Temperature

Test Mode B:

RT~120℃ (Required Other Temp. Control Device)

Probe Diameter A:

7.5 Mm

Probe Diameter B:

15 Mm

Resolution:

±3%

Repeatability Error:

≤3%

Test Time:

5~160 Sec

Power:

AC 220V

External Dimension(W*H*D):

50*41*20 Cm

Supply Ability:

300 Sets per Month Haida

Highlight:

Flat Plate Thermal Conductivity Tester

Thermal Conductivity Tester

Thermofluidometer Method Surface Temperature Tester

Product Description

Thermal Conductivity Tester (Flat Plate Thermofluidometer Method)

Description:

Thermal Conductivity Tester adopts the internationally popular method of heat flow meter to detect thermal conductivity and thermal resistance, with computer to realize fully automatic detection and generation of experimental report. The instrument adopts to add stable hot surface temperature on one side of the specimen, the heat is transferred to the cold surface through the specimen, and the transferred heat flow is measured to calculate the thermal conductivity and thermal resistance. Adopting imported sensors and computer technology, it is characterized by good measurement accuracy, high reliability and good repeatability. Especially suitable for low thermal conductivity measurement (accurate to 0.1mw). It can be used for testing plastics, rubber, thermal insulation materials, aerogel panels, vacuum glass, etc. It is widely used in colleges and universities, scientific research institutes, quality inspection, factories and mines.

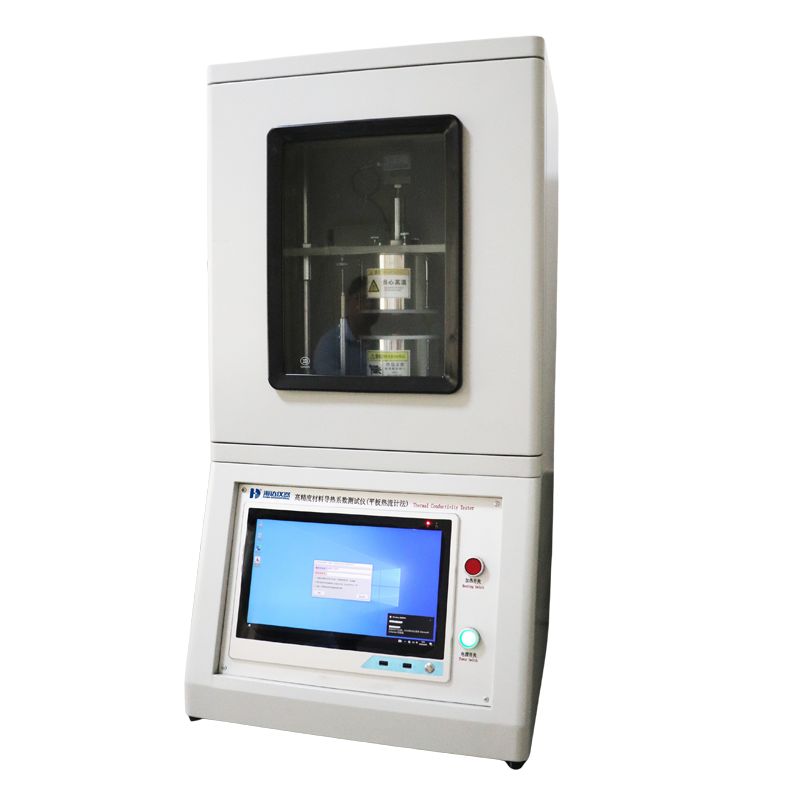

Haida Thermal Conductivity Tester Flat Plate Thermofluidometer Method Surface Temperature Tester

Technical Parameters

Item	Parameters
Thermal conductivity range	0.0001 ~ 1W / mk, can be measured accurately to 0.1mw / mk 0.001 ~ 300W / mk. computer automatically switch range
Measuring accuracy	1%
Specimen size	5050 ~ 150150, 150150 ~ 300300(mm) optional (standard configuration), the thickness is not greater than 50mm.
Sample state	Can test solid material, powder material
Measuring time	15~20 min
Hot surface temperature range	RT~ 99.9 ℃ (standard configuration), RT ~ 299.9 ℃, RT ~ 499.9 ℃ optional
Hot surface temperature control	Plate heater, bi-directional SCR control, temperature control accuracy 0.1℃
Cold surface temperature range	0 ~ 99.9 ℃ (standard configuration), -10 ~ 99.9 ℃, according to user requirements to determine the lower temperature
Cold surface temperature control	Water-cooled to ensure the stability of the cold surface temperature (precision thermostatic water tank, temperature adjustable), temperature control accuracy of 0.1 ℃
Specimen clamping pressure range	0 ~ 1000N, resolution 0.1N
Sample thickness range	Measure automatically, 0 ~ 50mm, resolution 1um
Heat flow meter	Imported original heat flow meter
Data storage	Computerized automatic testing and storage printing and storage of experimental data
Machine dimension	(LWH)5504501500mm
Machine weight	Approx. 100KG
Water bath dimension	(LWH)300350530mm
Water bath weight	Approx. 35KG
Power	1∮ AC 220V 1KW
Standards	GB/T10295-2008, ASTM E1530, ASTM C518-04, ISO 8301, DIN EN 12664

ABOUT HAIDA

Haida Thermal Conductivity Tester Flat Plate Thermofluidometer Method Surface Temperature Tester

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
