HD-DRH-V Thermal Conductivity Tester Guarded Hot-plate Method

Brand Name:	HAIDA
Model Number:	HD-60087
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO,CE,

Test Range:

0.005-300W/(m*K)

Test Mode A:

Room Temperature

Test Mode B:

RT~120℃ (Required Other Temp. Control Device)

Probe Diameter A:

7.5 Mm

Probe Diameter B:

15 Mm

Resolution:

±3%

Repeatability Error:

≤3%

Test Time:

5~160 Sec

Power:

AC 220V

External Dimension(W*H*D):

50*41*20 Cm

Supply Ability:

300 Sets per Month Haida

Highlight:

Hot Plate Thermal Conductivity Tester

Guarded Hot-plate Thermal Conductivity Tester

Product Description

HD-DRH-V Thermal Conductivity Tester

Description:

The thermal conductivity tester is mainly used to test plastic, rubber, glass, fiber, benzene board, extruded plastic board, foamed concrete, hollow glass, wood board, all kinds of heat preservation materials and other h omogeneous board materials, and at the same time, it can measure the thermal conductivity of various substances such as granular materials, bulk materials, soft materials.

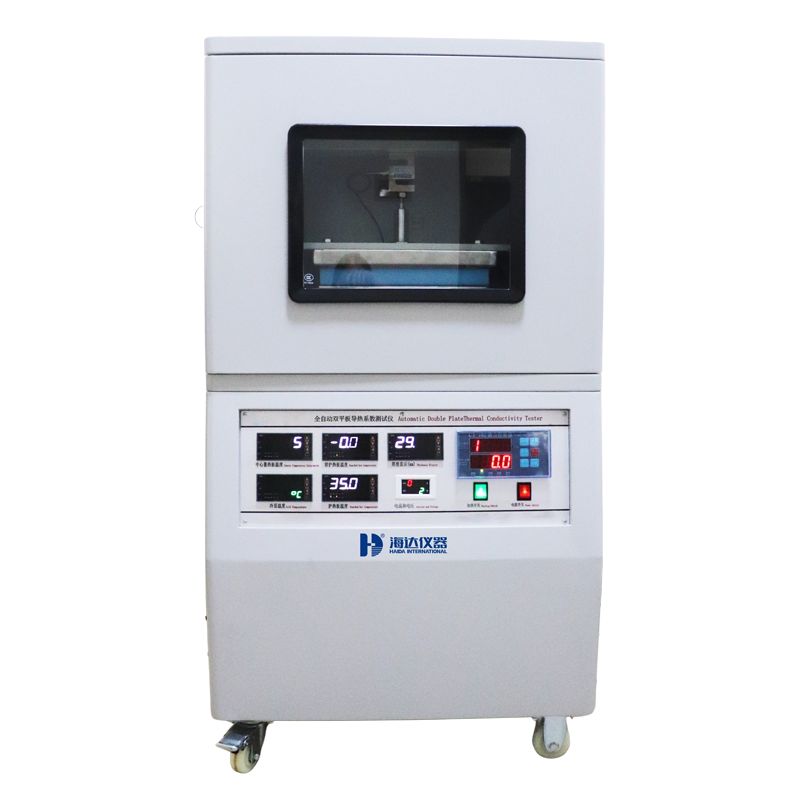

HD-DRH-V Thermal Conductivity Tester Guarded Hot-plate Method

Advantages

Online temperature calibration: unique technology, calibration of the instrument is simple and fast, accuracy increased by more than 3 times. Large measuring range: range 0.001~3.00w/(m.k). Automatic thickness measurement: computerized automatic thickness measurement, reducing human error. Automatic pressurization system: computer accurate automatic pressurization, can test the thermal conductivity at different pressures, more scientific than manual pressurization, more data, better repeatability. Measurement of a variety of types: In addition to measuring the hard plate, optional company accessories, you can measure a variety of special materials. For example: granular material, bulk material.

Technical Parameters

Item	Parameters
Thermal conductivity range	0.001~500 w/(m.k), resolution 0.0001w/(m.k)
Thermal diffusion coefficient (thermal conductivity) range	0.1~100 m2/s
Heat storage coefficient range	0.1~30 w/(m2.k)
Specific heat capacity range	0.1~5 kJ/(kg.℃)
Thermal resistance range	0.5~0.000005 mm2.k/w
Temperature measurement accuracy	≤0.0001℃
Relative measurement error	≤3%
Repeatability error	≤3%
Test time	1~120 seconds
Sample test environment temperature range	Room temperature (Various high and low temperature control bath (-40~250℃) or test states under vacuum can be selected according to customer requirements)
Probe configuration	Standard configuration: Φ15mm (temperature resistance -40~150℃)
Various sample tests	a. Solid block or round, square, or special-shaped samples do not require special preparation, only a relatively flat sample surface is required, and a special sample clamping device is provided. b. No special requirements for powder, paste, or liquid substances, and a special sample test box is provided. c. For thinner materials (thickness 0.01~1mm), special test plans and mathematical models are used for testing. d. For high-conductivity materials (100~500W), special test plans and mathematical models are used for testing. e. For thermal insulation materials (0.010~0.050W), special test plans and mathematical models are used for testing. parameters and output reports for samples. f. Equipped with a uniaxial anisotropic test mode.
Control mode	By computer & software
Power	AC 220V±10%, 50/60 Hz, 500W
