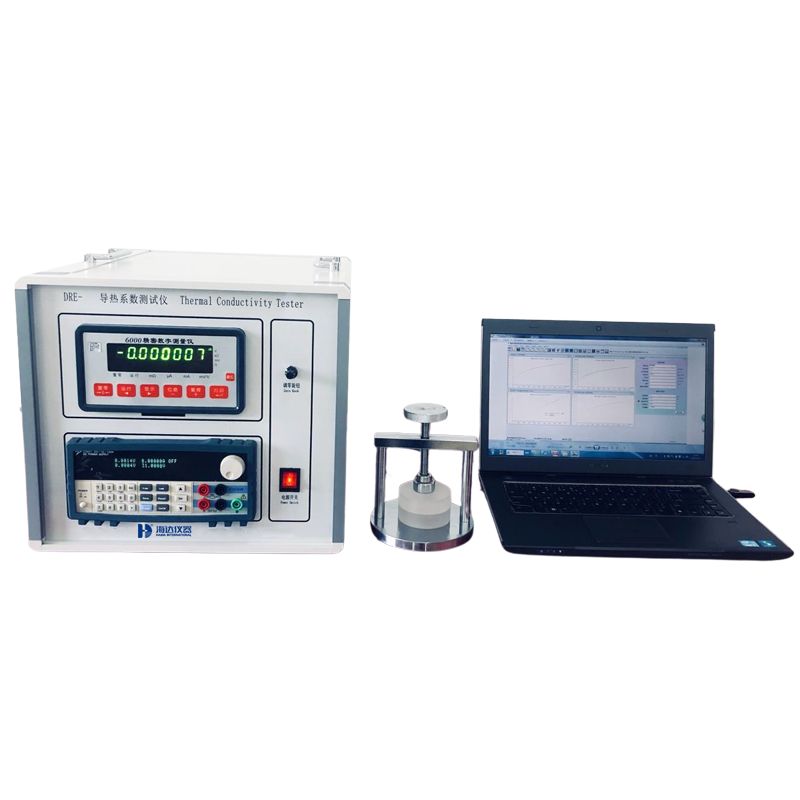

Haida DRE-III Thermal Conductivity Tester HotDisk Method

Brand Name:	HAIDA
Model Number:	HD-60090
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO,CE,

Test Range:

0.005-300W/(m*K)

Test Mode A:

Room Temperature

Test Mode B:

RT~120℃ (Required Other Temp. Control Device)

Probe Diameter A:

7.5 Mm

Probe Diameter B:

15 Mm

Resolution:

±3%

Repeatability Error:

≤3%

Test Time:

5~160 Sec

Power:

AC 220V

External Dimension(W*H*D):

50*41*20 Cm

Supply Ability:

300 Sets per Month Haida

Highlight:

DRE-III Thermal Conductivity Tester

DRE-III HotDisk Tester

Thermal Conductivity Tester

Product Description

HD-DRE-III Thermal Conductivity Tester (Hot Disk Method)

Description:

This instrument adopts the transient plane heat source method, based on TPS transient plane heat source technology, and uses a Hot Disk probe.

The advantages of this instrument are:

(1) Directly measure heat propagation, which can save a lot of time;

(2) It will not be affected by contact thermal resistance like the static method;

(3) No special sample preparation is required, and only a relatively flat sample surface is required for solid materials.

Different types of materials use different test schemes and calculation mathematical models, which have the advantages of fast measurement speed, wide application range and the ability to successfully avoid the influence of natural convection during the experiment. It has the advantages of a wide range of actual test materials, a wide range of thermal conductivity, simple sample processing and fast test speed. It is currently a more popular test method. Test materials: thermal conductivity, thermal diffusivity (thermal diffusion coefficient), specific heat, thermal storage coefficient and thermal resistance of metals, alloys, graphite, thermal grease, silicone, silicone rubber, ceramics, geotechnical, rock, polymers, paper, fabrics, foam plastics, concrete, composite panels, paper honeycomb panels and other solids, powders, liquids, pastes, coatings, films, thermal insulation materials, insulation materials, anisotropic materials, etc.

Haida DRE-III Thermal Conductivity Tester HotDisk Method

Technical Parameters

Item	Parameters
Thermal conductivity range	0.001~500 w/(m.k), resolution 0.0001w/(m.k)
Thermal diffusion coefficient (thermal conductivity) range	0.1~100 m2/s
Heat storage coefficient range	0.1~30 w/(m2.k)
Specific heat capacity range	0.1~5 kJ/(kg.℃)
Thermal resistance range	0.5~0.000005 mm2.k/w
Temperature measurement accuracy	≤0.0001℃
Relative measurement error	≤3%
Repeatability error	≤3%
Test time	1~120 seconds
Sample test environment temperature range	Room temperature (Various high and low temperature control bath (-40~250℃) or test states under vacuum can be selected according to customer requirements)
Probe configuration	Standard configuration: Φ15mm (temperature resistance -40~150℃)
Various sample tests	a. Solid block or round, square, or special-shaped samples do not require special preparation, only a relatively flat sample surface is required, and a special sample clamping device is provided. b. No special requirements for powder, paste, or liquid substances, and a special sample test box is provided. c. For thinner materials (thickness 0.01~1mm), special test plans and mathematical models are used for testing. d. For high-conductivity materials (100~500W), special test plans and mathematical models are used for testing. e. For thermal insulation materials (0.010~0.050W), special test plans and mathematical models are used for testing. parameters and output reports for samples. f. Equipped with a uniaxial anisotropic test mode.
Control mode	By computer & software
Power	AC 220V±10%, 50/60 Hz, 500W
