HD-DRM-II Thermal Conductivity Tester Heat Pulse Method

Brand Name:	HAIDA
Model Number:	HD-60089
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO,CE,

Test Range:

0.005-300W/(m*K)

Test Mode A:

Room Temperature

Test Mode B:

RT~120℃ (Required Other Temp. Control Device)

Probe Diameter A:

7.5 Mm

Probe Diameter B:

15 Mm

Resolution:

±3%

Repeatability Error:

≤3%

Test Time:

5~160 Sec

Power:

AC 220V

External Dimension(W*H*D):

50*41*20 Cm

Supply Ability:

300 Sets per Month Haida

Highlight:

AC 220V Thermal Conductivity Tester

Heat Pulse Thermal Conductivity Tester

Product Description

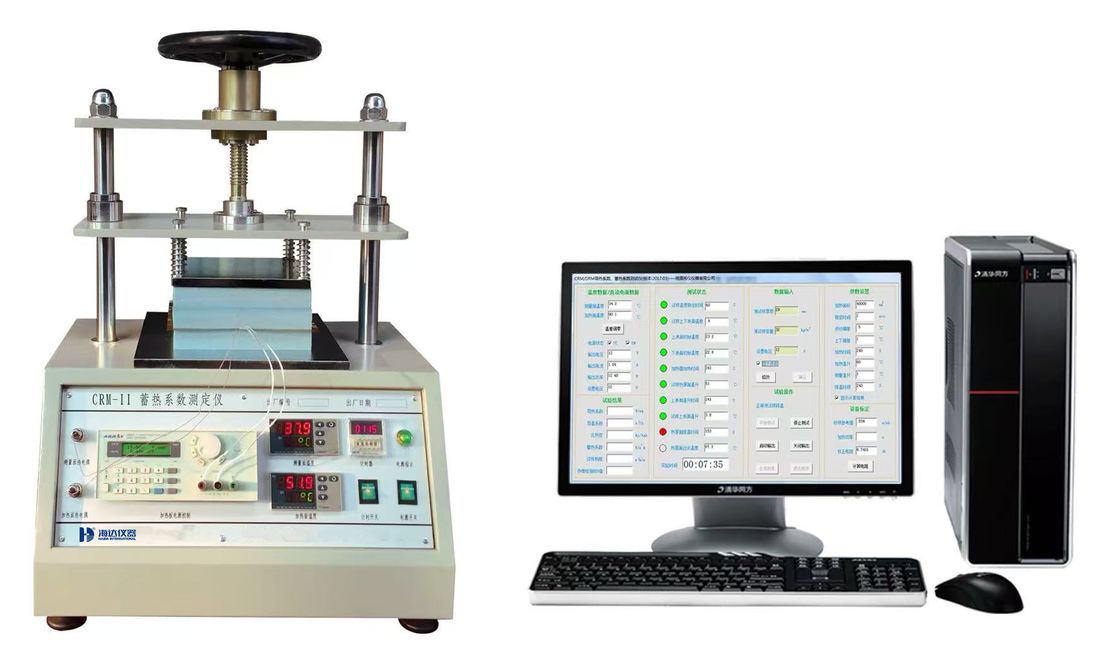

HD-DRM-II Thermal Conductivity Tester (Heat Pulse Method)

Description:

The transient heat pulse method thermal conductivity tester is used to measure the thermal conductivity, thermal storage coefficient, thermal conductivity and specific heat of homogeneous plate-like, colloidal, powdery and granular materials under dry or different moisture conditions. It is suitable for testing inorganic materials such as thermal insulation materials, concrete materials, plastics, rubber, graphite, etc. The characteristics of this instrument are: simple device, high accuracy, fast test speed (one test takes about ten minutes), and the thermal conductivity, thermal storage coefficient, thermal conductivity and specific heat of the material can be measured simultaneously in one test, and the thermophysical properties under different moisture conditions can be measured.

ASTM D5470-12 Rubber Thermal Conductivity Tester Equipment for Plastic Testing Material Analyzer 0

Technical Parameters

Item	Parameters
Thermal conductivity range	0.001~10W/m.k
Thermal storage coefficient test range	0.1~100W/m2K
Sample size	One thin specimen 20×20×(1.5~3)cm Two thick specimens 20×20×(4~10)cm
Accuracy of measurement results	±3%
Control mode	Computer automatic testing, data printout
Working condition	10~35℃, ≤80%RH
Power	AC 220V±10%, 50/60 Hz, 200W

ABOUT HAIDA

HD-DRM-II Thermal Conductivity Tester Heat Pulse Method

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
