HD-DRAS Thermal Conductivity Tester TPS Method

Brand Name:	HAIDA
Model Number:	HD-60083
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO,CE,

Test Range:

0.005-300W/(m*K)

Test Mode A:

Room Temperature

Test Mode B:

RT~120℃ (Required Other Temp. Control Device)

Probe Diameter A:

7.5 Mm

Probe Diameter B:

15 Mm

Resolution:

±3%

Repeatability Error:

≤3%

Test Time:

5~160 Sec

Power:

AC 220V

External Dimension(W*H*D):

50*41*20 Cm

Supply Ability:

300 Sets per Month Haida

Highlight:

TPS Method Thermal Conductivity Tester

Thermal Conductivity Tester

Product Description

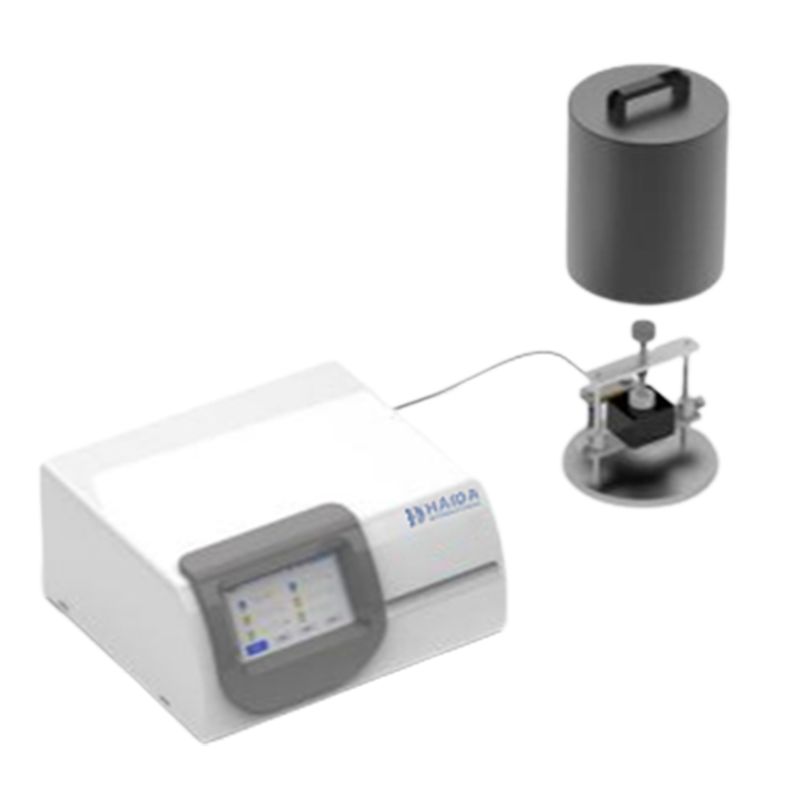

HD-DRAS Thermal Conductivity Tester (TPS Method)

Description:

Transient Planar Source Technology (TPS) is a method for measuring thermal conductivity. It is based on ISO 22007-2-2008, ASTM D 5334/D 7984/D 5930, GB/T 32064-2015, GB/T 42919.1-2023 and so on standards, and meets the test of materials in different forms, such as liquid, solid block, paste, powder, film, etc. The principle of measuring the thermal properties of materials is that a plane heat source in an infinite medium generates a dynamic temperature field inside the medium after being subjected to an instantaneous heating pulse in the initial thermal equilibrium state. The temperature data generated by the heat conduction process is used to fit the function curve and calculate the thermal conductivity and thermal diffusivity of the sample. During the test, a constant direct current is applied to the heat source, and the surface of the heat source generates a temperature rise, the resistance increases, and the bridge test system is unbalanced to generate a potential change. Through the change in electrical parameters, the function of the temperature increase over time is obtained.

ASTM D5470-12 Rubber Thermal Conductivity Tester Equipment for Plastic Testing Material Analyzer 0

Technical Parameters

Item	Parameters
Thermal conductivity range	0.00001—50W/(m*K)
Accuracy	0.0001W/(m*k)
Measurement temperature range	-30℃~200℃
Test probe	2 high-precision probes, high temperature resistant
Sample state	Can test liquid, solid block, paste, powder, film, etc.
Repeatability error value	≤1%
Measurement time	≤160S
Total power	<300W
Control system	Touch screen(Chinese/English)
Solid sample specifications	No. 1 probe sample size ≥7.5mm7.5mm3.75mm No. 2 probe sample size ≥15mm15mm7.5mm
Liquid and powder sample specifications	Matching sample fixture, capacity: 18ml
Standards	ISO 22007-2-2008, ASTM D 5334/D 7984/D 5930, GB/T 32064-2015, GB/T 42919.1-2023
