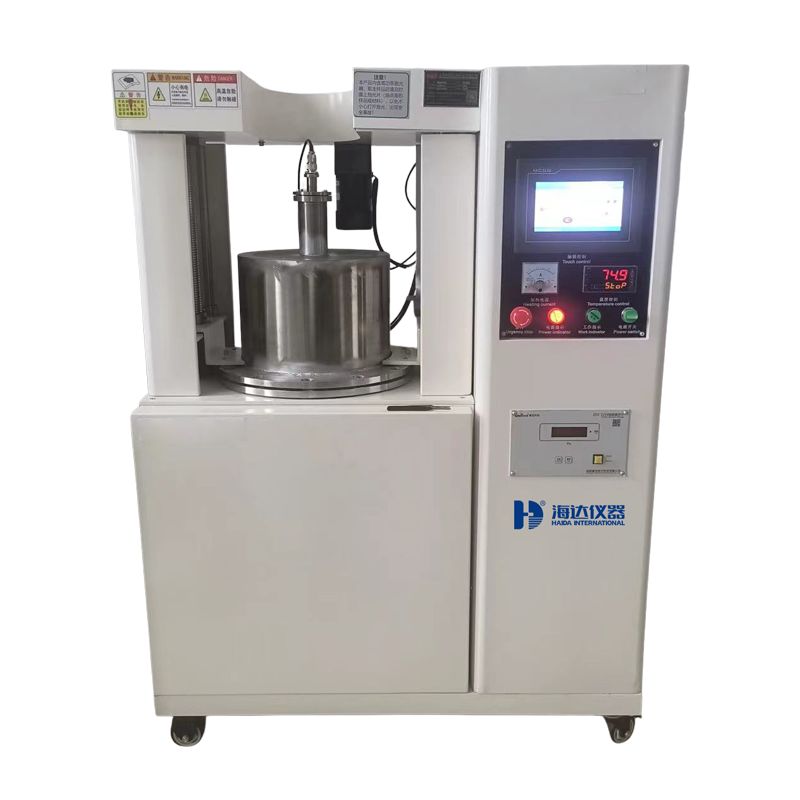

HD-DR-6 Thermal Conductivity Tester Laser Flash Method

Brand Name:	HAIDA
Model Number:	HD-60081
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO,CE,

Test Range:

0.005-300W/(m*K)

Test Mode A:

Room Temperature

Test Mode B:

RT~120℃ (Required Other Temp. Control Device)

Probe Diameter A:

7.5 Mm

Probe Diameter B:

15 Mm

Resolution:

±3%

Repeatability Error:

≤3%

Test Time:

5~160 Sec

Power:

AC 220V

External Dimension(W*H*D):

50*41*20 Cm

Supply Ability:

300 Sets per Month Haida

Highlight:

HD-DR-6 Thermal Conductivity Tester

Laser Flash Thermal Conductivity Tester

Product Description

HD-DR-6 Thermal Conductivity Tester (Laser Flash Method)

Description:

Thermal conductivity is an important physical parameter that characterizes the thermal conductivity of materials. It is one of the thermophysical properties of engineering materials, especially kiln materials. The laser flash method is to calculate the thermal conductivity of materials by directly measuring the thermal diffusivity, specific heat capacity and density of materials. The laser thermal conductivity meter uses a beam of laser to irradiate the sample and uses an infrared detector to measure the temperature rise on the back of the sample to calculate the thermal diffusivity of the sample. It is fast and convenient, and can measure the specific heat of the sample and further calculate the thermal conductivity. Thermal conductivity tester (laser flash method) is widely used in the testing of metals and alloys, diamonds, ceramics, graphite and carbon fibers, filled plastics, polymer materials, etc. It can also be used to test the thermal conductivity of liquids, thin films, solid electrical insulation materials, granular materials, powdered materials, and coal. It complies with GJB1201.1-91, ASTM D1461, ASTM E2585, GB/T 22588 and so on standards.

ASTM D5470-12 Rubber Thermal Conductivity Tester Equipment for Plastic Testing Material Analyzer 0

Technical Parameters

Item	Parameters
Testing temperature	RT~1000℃
Heating and cooling rate	0.1~30℃/min (can be set arbitrarily) high temperature type
Sample size	Square 1010mm~2020mm, round <φ20mm, thickness 1~10mm (Special specifications can be customized)
Measurable sample quantity	1~3 samples
Test environment	Vacuum degree: -0.1Mpa; Test atmosphere: inert, reducing
Thermal diffusion coefficient range	0.01~1000mm2/s
Thermal conductivity test range	0.1~4000W/m·K
Pulse source	Nd: YAG Laser
Pulse energy	15J/time
Pulse energy adjustable	Yes
Pulse interval adjustable	Software setting
Sensor	Insb/MCT, air cooling
Test sample types	Solid block, low viscosity liquid, high viscosity liquid, solid powder (standard equipped with a set of clamps)
Sample holder	Graphite, SiC, Al2O3, metal (other requirements can be customized)
Cp repeatability	±3% (most materials)
Thermal diffusion coefficient repeatability	±2 (most materials)
Upper computer interface	USB and dedicated portable interface, which can be equipped with a network port to realize data interconnection and remote testing
Power	1∮ AC 220V 50HZ
Standards	GJB1201.1-91, ASTM D1461, ASTM E2585, GB/T 22588, etc.

ABOUT HAIDA

HD-DR-6 Thermal Conductivity Tester Laser Flash Method

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
