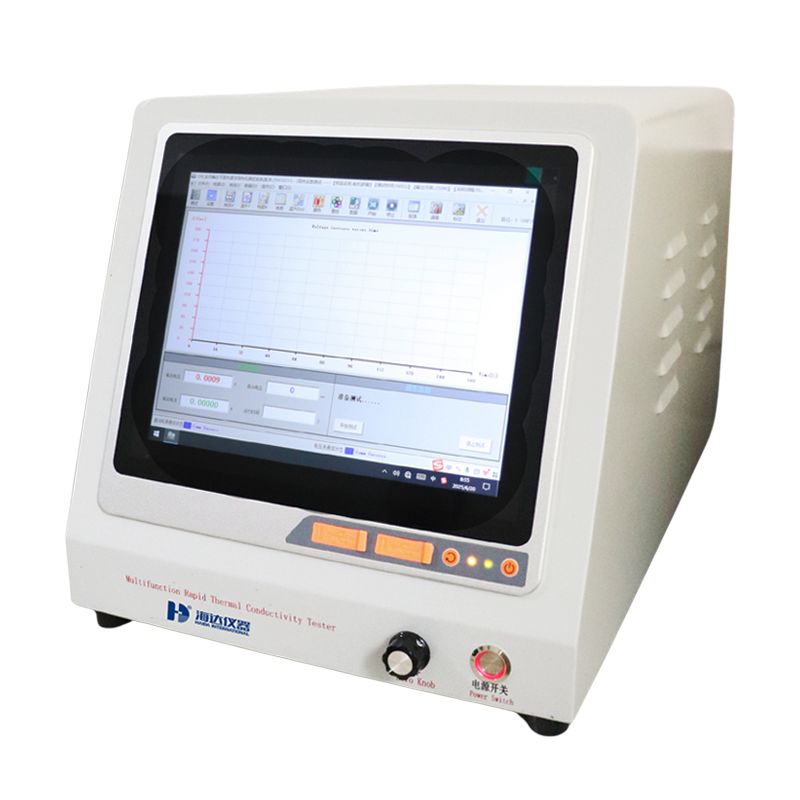

HD-DRE-V Thermal Conductivity Tester Hot Disk Method

Brand Name:	HAIDA
Model Number:	HD-60088
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO,CE,

Test Range:

0.005-300W/(m*K)

Test Mode A:

Room Temperature

Test Mode B:

RT~120℃ (Required Other Temp. Control Device)

Probe Diameter A:

7.5 Mm

Probe Diameter B:

15 Mm

Resolution:

±3%

Repeatability Error:

≤3%

Test Time:

5~160 Sec

Power:

AC 220V

External Dimension(W*H*D):

50*41*20 Cm

Supply Ability:

300 Sets per Month Haida

Highlight:

Hot Disk Method Thermal Conductivity Tester

HD-DRE-V Thermal Conductivity Tester

Product Description

HD-DRE-V Thermal Conductivity Tester (Hot Disk Method)

Description:

The thermal conductivity tester adopts the transient plane heat source method, based on TPS transient plane heat source technology, and uses a Hot Disk probe. It can be used to test the thermal conductivity, thermal conductivity (thermal diffusion coefficient), specific heat capacity, thermal storage coefficient and thermal resistance of metals, alloys, graphite, thermal grease, silicone, silicone rubber, ceramics, rock and soil, rocks, polymers, paper, fabrics, foam plastics, concrete, composite panels, paper honeycomb panels and other solids, powders, liquids, pastes, coatings, films, thermal insulation materials, insulation materials, anisotropic materials, etc. The advantages of this instrument are: (1) Directly measure heat transfer, which can save a lot of time; (2) It will not be affected by contact thermal resistance like the static method; (3) No special sample preparation is required, and only a relatively flat sample surface is required for solid materials. Different types of materials use different test schemes and calculation mathematical models, which have the advantages of fast measurement speed, wide application range and the ability to successfully avoid the influence of natural convection during the experiment. It has the advantages of a wide range of actual test materials, a wide range of thermal conductivity, simple sample processing, and fast testing speed. It is currently a more popular test method.

ASTM D5470-12 Rubber Thermal Conductivity Tester Equipment for Plastic Testing Material Analyzer 0

Technical Parameters

Item	Parameters
Thermal conductivity range	0.001~500 w/(m.k), resolution 0.0001w/(m.k)
Thermal diffusion coefficient range	0.1~100m2/s
Thermal storage coefficient range	0.1~30w/(m2.k)
Specific heat capacity range	0.1~5kJ/(kg.℃)
Thermal resistance range	0.5~0.000005mm2.k/w
Temperature measuring accuracy	≤0.0001℃
Measurement relative error	≤3%
Repeatability error	≤3%
Measuring time	1~120 seconds
Sample test temperature range	Room temperature (Various high and low temperature control chamber or test states under vacuum can be optional according to customer requirements)
Probe	Φ15mm
Various sample tests	a. Solid block or round, square, or special-shaped samples do not require special preparation, only a relatively flat sample surface is required, and a special sample clamping device is provided. b. There are no special requirements for powder, paste, or liquid substances, and a special sample test box is provided. c. For thinner materials (thickness 0.01-1mm), special test plans and mathematical models are used for testing. d. For high-conductivity materials (100-500W), special test plans and mathematical models are used for testing. e. For thermal insulation materials (0.010-0.050W), special test plans and mathematical models are used for testing.
Control mode	Fully automatic test software, fast and accurate analysis of sample test process parameters and report output
Machine dimension	(LWH)38040450mm
Machine weight	Approx. 20KG
Power	AC 220V±10%, 50/60 Hz, 500W
