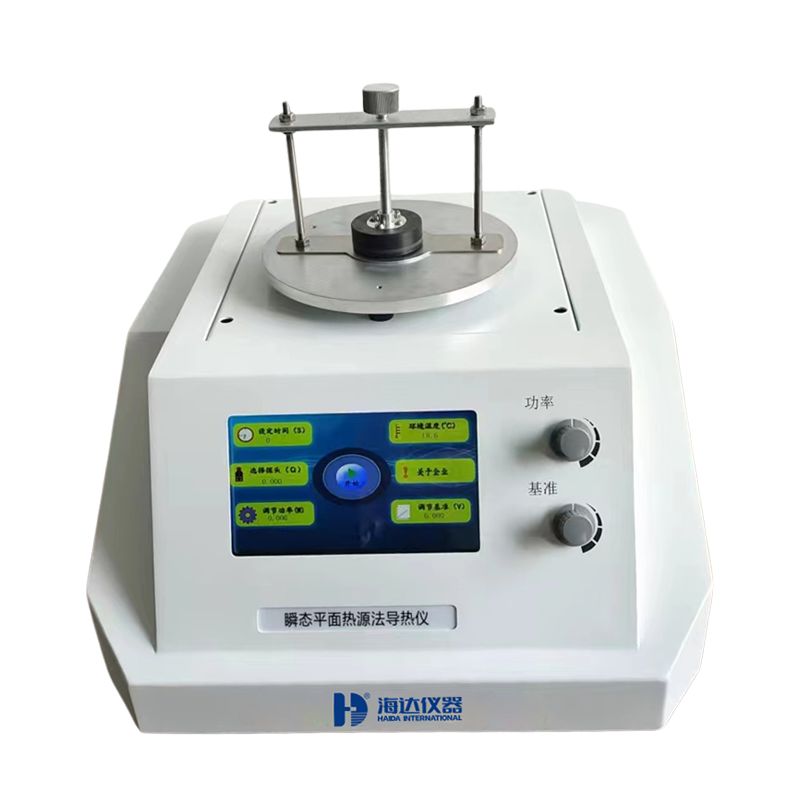

HD-DRL-S Thermal Conductivity Tester TPS Method

Brand Name:	HAIDA
Model Number:	HD-60087
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO,CE,

Test Range:

0.005-300W/(m*K)

Test Mode A:

Room Temperature

Test Mode B:

RT~120℃ (Required Other Temp. Control Device)

Probe Diameter A:

7.5 Mm

Probe Diameter B:

15 Mm

Resolution:

±3%

Repeatability Error:

≤3%

Test Time:

5~160 Sec

Power:

AC 220V

External Dimension(W*H*D):

50*41*20 Cm

Supply Ability:

300 Sets per Month Haida

Highlight:

Thermal Conductivity Tester TPS Method

Durable Thermal Conductivity Tester

Product Description

HD-DRL-S Thermal Conductivity Tester (TPS Method)

Description:

Thermal conductivity tester based on transient plane heat source technology (TPS). This product is independently developed by AVIC Dingli Instruments. It has stable test performance and strong data processing and analysis capabilities. It can be used to measure the thermal conductivity of various types of materials. Measurement material types: metal, ceramic, alloy, ore, polymer, composite material, paper, fabric, foam plastic (insulation material and board with flat surface), polyurethane, phenolic, urea formaldehyde, mineral wool (glass wool, rock wool, mineral wool), cement wall, glass reinforced composite board CRC, cement polystyrene board, sandwich concrete, glass fiber reinforced plastic panel composite board, paper honeycomb board, etc.

ASTM D5470-12 Rubber Thermal Conductivity Tester Equipment for Plastic Testing Material Analyzer 0

Technical Parameters

Item	Parameters
Thermal conductivity range	0.00001~300W/(m*K)
Measuring temperature range	RT~130℃
Probe diameter	Probe No. 1: φ7.5mm; Probe No. 2: φ15mm
Measuring time	5~160 seconds
Sample temperature rise	﹤ 15℃
Sample size	Probe No. 1 sample: ≥7.57.53.75mm; Probe No. 2 sample: ≥15157.5mm Note: Probe No. 1 measures thinner low-conductivity materials. If the surface of the sample to be measured is smooth and sticky, the sample can be stacked
Test sample power P	Probe No. 1 power: 0 <1w; Probe No. 2 power: 0
Accuracy of measurement results	±3%
Control mode	Computer and software, software can export PDF Report, can export EXECL data
Protection system	Circuit with overload protection prompt
Sample testing clamps	Powder sample test container, liquid sample test cup, solid sample test fixture for optional
Power	AC 220V±10%, 50/60 Hz, 500W

ABOUT HAIDA

HD-DRL-S Thermal Conductivity Tester TPS Method

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
