Vertical Flame Spread Testing Equipment For Textiles With Horizontal Burner Angle And Industrial Fuel Gas

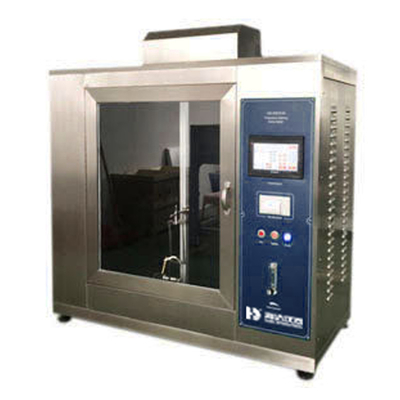

Large Image : Vertical Flame Spread Testing Equipment For Textiles With Horizontal Burner Angle And Industrial Fuel Gas

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO,CE,
Model Number:	6026-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

Power Supply:	AC 220V, 50Hz	Ignition Time:	Adjustable: 0–999.9 Seconds
Flame Spread Time:	Adjustable: 0–999.9 Seconds	Burner Angle:	Horizontal; 30° From Vertical Axis
Fuel Gas:	Industrial Propane Or Butane	Control System:	7-inch Color LCD Touchscreen + PLC (Programmable Logic Controller)
Display System:	Real-time Monitoring Of Ignition Time And Flame Spread Duration	Combustion Chamber:	Front-opening Design; Minimum 300mm Clearance From Specimen To Any Wall
Highlight:	Textiles Flame Spread Testing Equipment , Vertical Flame Spread Testing Equipment

Vertical Flame Spread Tester for Textiles

Description:

Vertical Flame Spread Tester for Textiles evaluates the vertical flame spread properties of textiles in accordance with GB/T 5456-2009 and ISO 6941. It measures flame propagation on vertically oriented specimens under controlled conditions.

Compliance Standards:

GB/T 5456-2009, ISO 6941:2003, GB 6675.3 Appendix B, ISO 15025

Vertical Flame Spread Testing Equipment For Textiles With Horizontal Burner Angle And Industrial Fuel Gas 0

Technical Parameters:

Model	6026-HD
Control System	7-inch color LCD touchscreen + PLC (Programmable Logic Controller)
Display System	Real-time monitoring of ignition time and flame spread duration
Combustion Chamber	Front-opening design; minimum 300mm clearance from specimen to any wall
Ignition Time	Adjustable: 0–999.9 seconds
Flame Spread Time	Adjustable: 0–999.9 seconds
Burner Angle	Horizontal; 30° from vertical axis
Burner Specifications	• Nozzle inner diameter: Ø6mm
	• Flame outlet: Ø1.7mm
	• 8×Ø0.9mm air intake holes (evenly distributed)
Fuel Gas	Industrial propane or butane
Sample Holder	Rectangular metal frame (560×150mm) with:
	• 12 fixing pins (positions: 5/10/190/370/550/555mm from base)
	• Pin length: ≥26mm
	• Positioning cylinders (Ø2mm, ≥20mm) near each pin
Key Features	• Control/combustion chambers
	• Burner assembly
	• Solenoid valve
	• High-voltage igniter
	• Gas pressure regulator
	• Lighting system
Power Supply	AC 220V, 50Hz

ABOUT HAIDA

Vertical Flame Spread Testing Equipment For Textiles With Horizontal Burner Angle And Industrial Fuel Gas 1

Vertical Flame Spread Testing Equipment For Textiles With Horizontal Burner Angle And Industrial Fuel Gas 2

Vertical Flame Spread Testing Equipment For Textiles With Horizontal Burner Angle And Industrial Fuel Gas 3

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
