Flammability Testing Equipment For Children S Products Toy Comprehensive Combustion Tester

Brand Name:	HAIDA
Model Number:	6023-HD
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO,CE,

Burner:

Complies With BS 6941 Standard

Timer:

Adjustable: 0–99 Minutes 99 Seconds

Flame Height:

20mm ± 2mm

Dimensions (L×W×H):

1000×600×1100mm (adjustable)

Sample Clamp Size:

150mm × 560mm

Power Supply:

AC 220V, 50Hz

Supply Ability:

300 Sets per Month Haida

Highlight:

Children s Products Flammability Testing Equipment

Comprehensive Combustion Tester

Toy Flammability Testing Equipment

Product Description

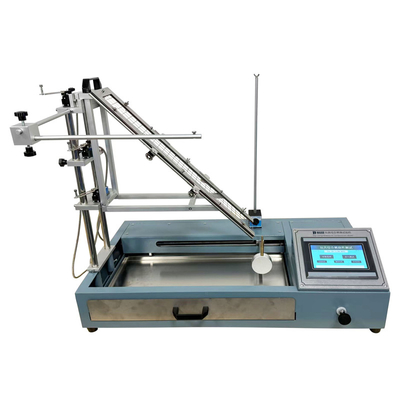

Toy Comprehensive Combustion Tester

Description:

Toy Comprehensive Combustion Tester tester evaluates the combustion performance of children's clothing, toys, and accessories by measuring burning speed and duration.
It is designed for: Children's costumes (e.g., capes, flowing garments), Enclosed toys (e.g., play tents, toy houses), Soft-filled toys (e.g., plush toys), Wearable toys (e.g., masks, wigs).

Compliance Standards:

EN 71-2:2020, GB 6675.3-2014

Key Features:

Compact design: Portable with micro gas cylinder connection (external large tanks optional).
Automated operation: Motor-driven burner with PLC-controlled timing.
Direct measurement: Records burning speed during thread tests.

Flammability Testing Equipment For Children S Products Toy Comprehensive Combustion Tester 0

Technical Parameters:

Model	6023-HD
Dimensions (L×W×H)	1000×600×1100mm (adjustable)
Burner	Complies with BS 6941 standard
Timer	Adjustable: 0–99 minutes 99 seconds
Sample Clamp Size	150mm × 560mm
Flame Height	20mm ± 2mm
Accessories	Includes:
	• Test frame (1 unit)
	• Cotton thread (1 roll)
	• Measuring ruler (1 unit)
	• Cleaning brush (1 unit)
	• Butane cylinders (2 units)
	• Gas supply system (1 set)
Power Supply	AC 220V, 50Hz
