Customizable Flammability Testing Equipment For Building Materials With Adjustable Flame Height

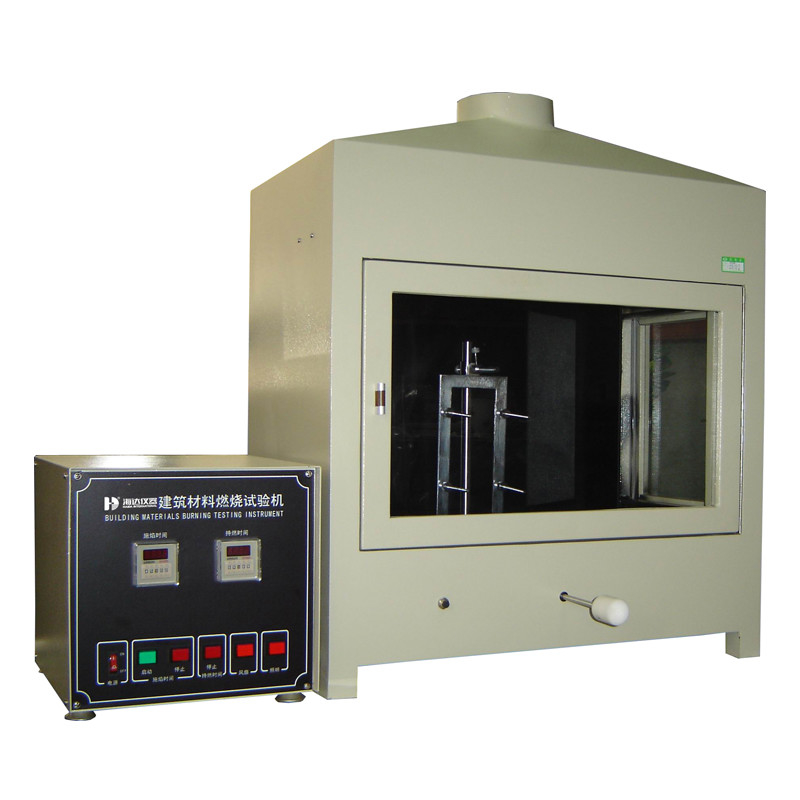

Large Image : Customizable Flammability Testing Equipment For Building Materials With Adjustable Flame Height

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO,CE,
Model Number:	6020-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

Power Supply:	AC 220V, 50Hz	Chamber Dimensions 1:	700mm (L) × 400mm (W) × 810mm (H)
Chamber Dimensions 2:	Ø150mm Exhaust Port (top)	Chamber Dimensions 3:	Glass Observation Windows (front & Right)
Chamber Dimensions 4:	Stainless Steel Mesh Base	Burner Angle:	Fixed At 45°
Flame Height:	Adjustable To 20±2mm (standard-compliant)	Fuel Gas:	Propane Gas (≥95% Purity)
Highlight:	Building Materials Flammability Testing Equipment , Adjustable Flame Height Flammability Testing Equipment , Customizable Flammability Testing Equipment

Building Materials Combustion Test Apparatus

Description:

This combustion test apparatus is designed and manufactured in accordance with GB/T 8626-2007 to determine the flammability of building materials under specified conditions.

Compliance Standards:

GB/T 8626-2007, ISO 11925-2:2020

Customizable Flammability Testing Equipment For Building Materials With Adjustable Flame Height 0

Technical Parameters:

Model	6020-HD
Chamber Dimensions	700mm (L) × 400mm (W) × 810mm (H); includes:
	Ø150mm exhaust port (top)
	Glass observation windows (front & right)
	Stainless steel mesh base
Flame Application Time	Adjustable: 0–99 minutes 99 seconds
Afterflame Time	Adjustable: 0–99 minutes 99 seconds
Burner Angle	Fixed at 45°
Burner Specifications	Nozzle diameter: Ø0.17mm; equipped with 4 air intake holes (Ø4mm each) and a regulating valve.
Flame Height	Adjustable to 20±2mm (standard-compliant).
Fuel Gas	Propane gas (≥95% purity).
Configuration	Includes
	Control unit
	Combustion chamber
	Burner assembly
	Solenoid valve
	High-voltage igniter
	Signal control cables
	Sample holder
Power Supply	AC 220V, 50Hz

ABOUT HAIDA

Customizable Flammability Testing Equipment For Building Materials With Adjustable Flame Height 1

Customizable Flammability Testing Equipment For Building Materials With Adjustable Flame Height 2

Customizable Flammability Testing Equipment For Building Materials With Adjustable Flame Height 3

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
