Flame Temperature Calibration Device 50W

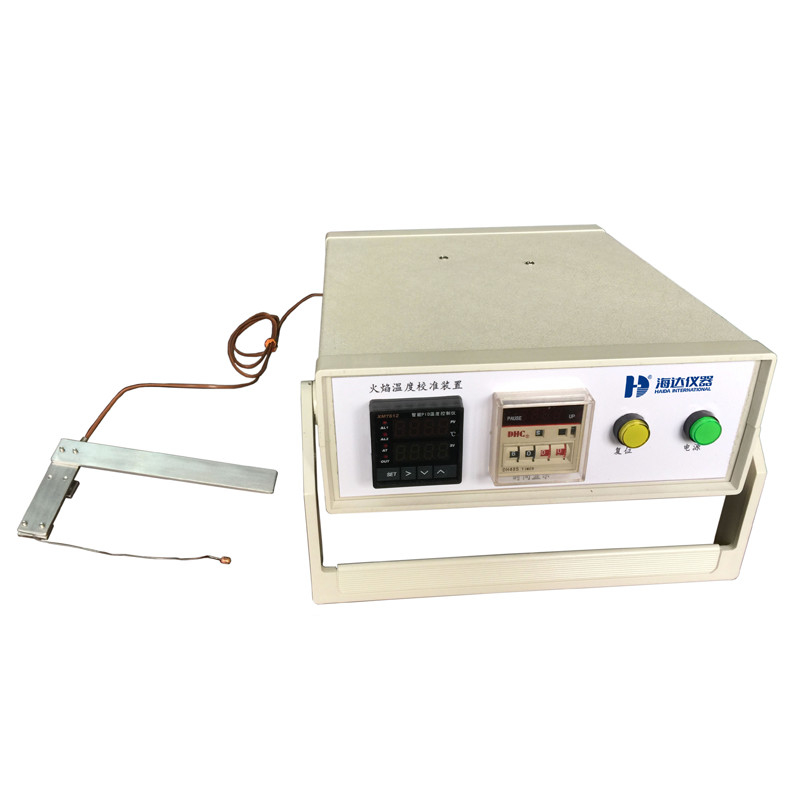

Large Image : Flame Temperature Calibration Device 50W

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO,CE,
Model Number:	6014-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

Timer:	Adjustable Range: 0.01–99.99 Seconds	Diameter:	Ø5.50±0.01mm
Length:	8.80±0.02mm	Bevel Angle:	45±0.5°
Mass (Pre-drilling):	1.76g±0.01g	Material:	High-conductivity Electrolytic Copper
Surface Finish:	Fully Polished	Thermocouple:	Armored K-type (NiCr/NiAl) Fine-wire Thermocouple With A 0.5mm Diameter Sheath
Highlight:	50W Flame Temperature Calibration Device , Flame Temperature Calibration Device

Flame Temperature Calibration Device 50W

Description:

This calibration device is designed in accordance with ASTM D5207-03 and related IEC, UL, GB standards for measuring flame temperatures in combustion test equipment.

Calibration Procedure:

Position the copper block 10±1mm above the needle flame burner.
Ignite the flame; the time for the copper block temperature to rise from 100°C±2°C to 700°C±3°C must be 44±2 seconds to validate the flame for testing.
Perform three measurements, allowing the copper block to cool naturally to <50°C between tests.

Flame Temperature Calibration Device 50W 0

Technical Parameters:

Model	6014-HD
Thermocouple	Armored K-type (NiCr/NiAl) fine-wire thermocouple with a 0.5mm diameter sheath
Timer	Adjustable range: 0.01–99.99 seconds
Copper Block Specifications
Diameter	Ø5.50±0.01mm
Length	8.80±0.02mm
Bevel Angle	45±0.5°
Mass (Pre-drilling)	1.76g±0.01g
Material	High-conductivity electrolytic copper
Surface Finish	Fully polished

ABOUT HAIDA

Flame Temperature Calibration Device 50W 1

Flame Temperature Calibration Device 50W 2

Flame Temperature Calibration Device 50W 3

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
