Accurate Flammability Testing Equipment for Flexible Cellular Polymeric Materials with ISO 3582 Standard

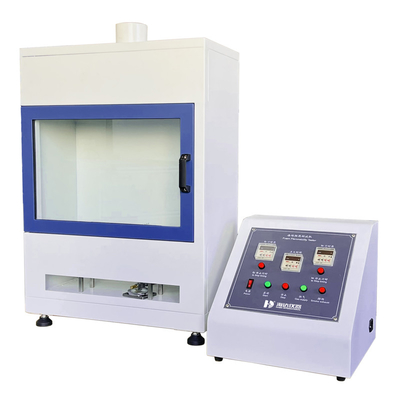

Large Image : Accurate Flammability Testing Equipment for Flexible Cellular Polymeric Materials with ISO 3582 Standard

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO,CE,
Model Number:	6013-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

Burning Angle:	90° (vertical Position)	Flame Temperature:	1000±100°C (optional)
Flame Height:	Inner Flame: 6mm; Outer Flame: 38mm	Burner Specifications 1:	Nozzle Inner Diameter: Ø9.5±0.3mm
Burner Specifications 2:	Wing-top Nozzle With 60° Cone Angle	Burner Specifications 3:	Nozzle Dimensions: 48mm (length) × 3.0mm (width)
Power Supply:	AC 220V, 50Hz	Support Grid Dimensions:	215×75mm
Support Grid Height:	175±25mm From Chamber Base
Highlight:	ISO 3582 Flammability Testing Equipment , Accurate Flammability Testing Equipment , ISO 3582 Flammability Testing Equipment

Flexible Cellular Polymeric Materials Horizontal Burning Test Apparatus

Description:

This test apparatus is designed and manufactured in accordance with ISO 3582 standard to evaluate the horizontal burning characteristics of flexible cellular polymeric materials when exposed to low-energy heat sources.

Compliance Standard:

ISO 3582

Accurate Flammability Testing Equipment for Flexible Cellular Polymeric Materials with ISO 3582 Standard 0

Technical Parameters:

Model	6013-HD
Combustion Chamber Dimensions (L×W×H)	600×300×760mm, with glass observation door
Ventilation Slit Dimensions	450×50mm
tb Timer	Adjustable range: 0.01–99.99 seconds/minutes/hours
Ignition Time	Adjustable range: 0.01–99.99 seconds/minutes/hours
te Timer	Adjustable range: 0.01–99.99 seconds/minutes/hours
Burning Angle	90° (vertical position)
Flame Temperature	1000±100°C (optional)
Burner Specifications	Nozzle inner diameter: Ø9.5±0.3mm
	Wing-top nozzle with 60° cone angle
	Nozzle dimensions: 48mm (length) × 3.0mm (width)
Flame Height	Inner flame: 6mm; Outer flame: 38mm
Support Grid Dimensions	215×75mm
Support Grid Height	175±25mm from chamber base
Power Supply	AC 220V, 50Hz

ABOUT HAIDA

Accurate Flammability Testing Equipment for Flexible Cellular Polymeric Materials with ISO 3582 Standard 1

Accurate Flammability Testing Equipment for Flexible Cellular Polymeric Materials with ISO 3582 Standard 2

Accurate Flammability Testing Equipment for Flexible Cellular Polymeric Materials with ISO 3582 Standard 3

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
