Flammability Testing Equipment for Glow-Wire and Horizontal-Vertical Flame Tests

Large Image : Flammability Testing Equipment for Glow-Wire and Horizontal-Vertical Flame Tests

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO,CE,
Model Number:	6012-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

Power Supply:	AC 220V, 50Hz	Chamber Volume:	≥0.5 M³, With Glass Observation Door
Internal Illuminance:	<20 Lux	Fuel:	Butane Gas (≥95% Purity); No Air Ingress Into Burner Tube (user-provided)
Flame Height:	Adjustable: 12mm±1mm (includes Measuring Gauge)	Drive Mechanism:	Motorized
Temperature Display:	Range: 0–1000°C; Resolution: 1°C	Timer:	Adjustable: 0–99 Minutes 99 Seconds; Resolution: 0.01s; Configurable Ignition/duration Recording
Highlight:	Glow-Wire Flammability Testing Equipment , Horizontal-Vertical Flame Flammability Testing Equipment , Glow-Wire Flammability Testing Equipment

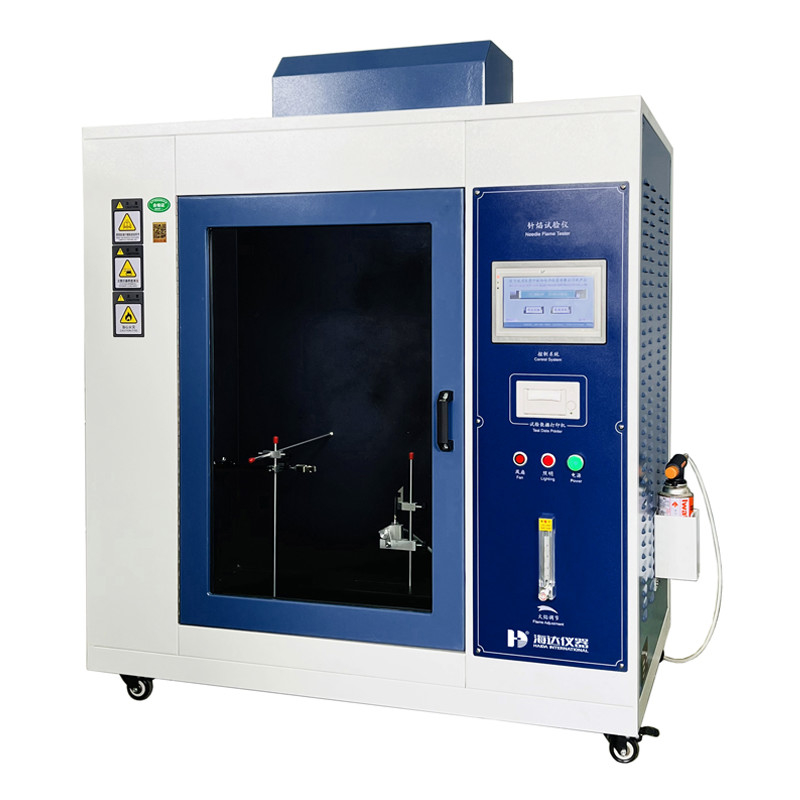

Needle Flame Testing Instrument

Description:

This instrument simulates small flames generated under fault conditions (e.g., leakage currents, overheating, poor contacts) to assess fire hazards.

It is applied when glow-wire or horizontal-vertical flame tests are unsuitable for small components. If a sample ignites during glow-wire testing, the needle flame test further evaluates combustion risks. Suitable for parts of electrical/electronic products and household appliances (e.g., terminal blocks, centrifugal switches, rice cooker sockets).

Compliance Standard:

IEC 60695-11-5, GB/T 5169.5, IEC 60884-1, GB 2099.1, VDE 0620, IEC 60335-1, GB 4706.1, UL 60065

Flammability Testing Equipment for Glow-Wire and Horizontal-Vertical Flame Tests 0

Technical Parameters:

Model	6012-HD
Chamber Volume	≥0.5 m³, with glass observation door
Internal Illuminance	<20 Lux
Fuel	Butane gas (≥95% purity); no air ingress into burner tube (user-provided)
Burner Specifications	Length: ≥35mm; Inner diameter: Ø0.5mm±0.1mm; Outer diameter: ≤Ø0.9mm.
Flame Height	Adjustable: 12mm±1mm (includes measuring gauge).
Flame Temperature	100°C±5°C to 700°C±3°C in 23.5±1 seconds. K-type armored thermocouple (Ø0.5mm, imported); optional calibration device included.
Temperature Display	Range: 0–1000°C; Resolution: 1°C
Timer	Adjustable: 0–99 minutes 99 seconds; Resolution: 0.01s; Configurable ignition/duration recording.
Drive Mechanism	Motorized
Key Features	Automated control: Burner moves to sample position, shuts off gas post-test, and retracts. 3D-adjustable fixture, integrated ventilation/lighting, and user-friendly operation.
Power Supply	AC 220V, 50Hz
