High Performance Needle Flame Testing Instrument for Electrical and Electronic Products

Brand Name:	HAIDA
Model Number:	6011-HD
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO,CE,

Chamber Volume:

≥0.5 M³, With Glass Observation Door

Internal Illuminance:

<20 Lux

Fuel:

Butane Gas (≥95% Purity); No Air Ingress Into Burner Tube

Burner Specifications:

Length: ≥35mm; Inner Diameter: Ø0.5mm±0.1mm; Outer Diameter: ≤Ø0.9mm

Flame Height:

Adjustable: 12mm±1mm (includes Measuring Gauge)

Timer:

Adjustable Range: 0–999.9 Seconds; Configurable Ignition/duration Recording

Drive Mechanism:

Motorized

Power Supply:

AC 220V, 50Hz

Supply Ability:

300 Sets per Month Haida

Highlight:

Electrical Needle Flame Testing Instrument

Electronic Needle Flame Testing Instrument

High Performance Needle Flame Testing Instrument

Product Description

Needle Flame Testing Instrument

Description:

This instrument simulates small flames generated under fault conditions (e.g., leakage currents, component overheating, poor contacts) to assess fire hazards.

Needle Flame Testing Instrument is specifically designed for evaluating fire risks in small components where glow-wire or horizontal/vertical flame tests are unsuitable. If a sample ignites during glow-wire testing, the needle flame test further analyzes combustion risks. Applicable to parts of electrical/electronic products and household appliances, such as terminal blocks, centrifugal switches, and rice cooker sockets.

This model features PLC + color LCD touchscreen control with an intuitive interface and includes a built-in printer for recording test conditions and results.

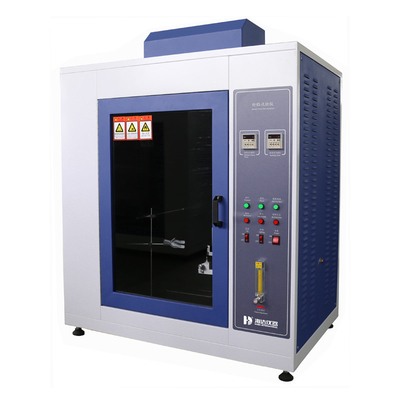

High Performance Needle Flame Testing Instrument for Electrical and Electronic Products 0

Technical Parameters:

Model	6011-HD
Control System	7-inch color LCD touchscreen + PLC (Programmable Logic Controller), equipped with test data printer
Display System	7-inch color LCD touchscreen for setting/displaying burn time, test duration, test date, print interface, and operational status
Chamber Volume	≥0.5 m³, with glass observation door
Internal Illuminance	<20 Lux
Fuel	Butane gas (≥95% purity); no air ingress into burner tube
Burner Specifications	Length: ≥35mm; Inner diameter: Ø0.5mm±0.1mm; Outer diameter: ≤Ø0.9mm
Flame Height	Adjustable: 12mm±1mm (includes measuring gauge)
Flame Temperature	100°C±5°C to 700°C±3°C in 23.5±1 seconds (optional temperature calibration device available).
Timer	Adjustable range: 0–999.9 seconds; Configurable ignition/duration recording.
Drive Mechanism	Motorized
Key Features	Automated operation: Burner moves to sample position, shuts off gas post-test, and retracts. 3D-adjustable fixture, integrated ventilation/lighting, and stable performance.
Power Supply	AC 220V, 50Hz.

ABOUT HAIDA

High Performance Needle Flame Testing Instrument for Electrical and Electronic Products 1

High Performance Needle Flame Testing Instrument for Electrical and Electronic Products 2

High Performance Needle Flame Testing Instrument for Electrical and Electronic Products 3

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
