High Current Assess Arc Resistance Performance Flammability Testing Equipment

High Current Assess Arc Resistance Performance Flammability Testing Equipment
High Current Assess Arc Resistance Performance Flammability Testing Equipment

Large Image :  High Current Assess Arc Resistance Performance Flammability Testing Equipment

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO,CE,
Model Number: 6009-HD
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Power Supply: AC 220V, 50Hz Test Voltage: 220V–240V
Electrode Separation Speed: 254mm ±25mm Per Second Arc Frequency: Approximately 40 Arcs Per Minute
Short-Circuit Current: Adjustable Inductive Load To Achieve A Power Factor Of 0.5 And Short-circuit Current Of 33A
Highlight:

Arc Resistance Flammability Testing Equipment

,

Assess Arc Resistance Flammability Testing Equipment

,

High Current Flammability Testing Equipment



High-Current Arc Resistance to Ignition Tester





Description:



This tester is designed to evaluate the arc resistance performance of electrical/electronic products, household appliances, and their materials. It simulates leakage currents between live parts of opposite polarity or between live parts and grounded metal components, measuring and assessing the arc resistance of insulating materials under specified voltages.



Standard:



IEC 60950, GB/T 4943

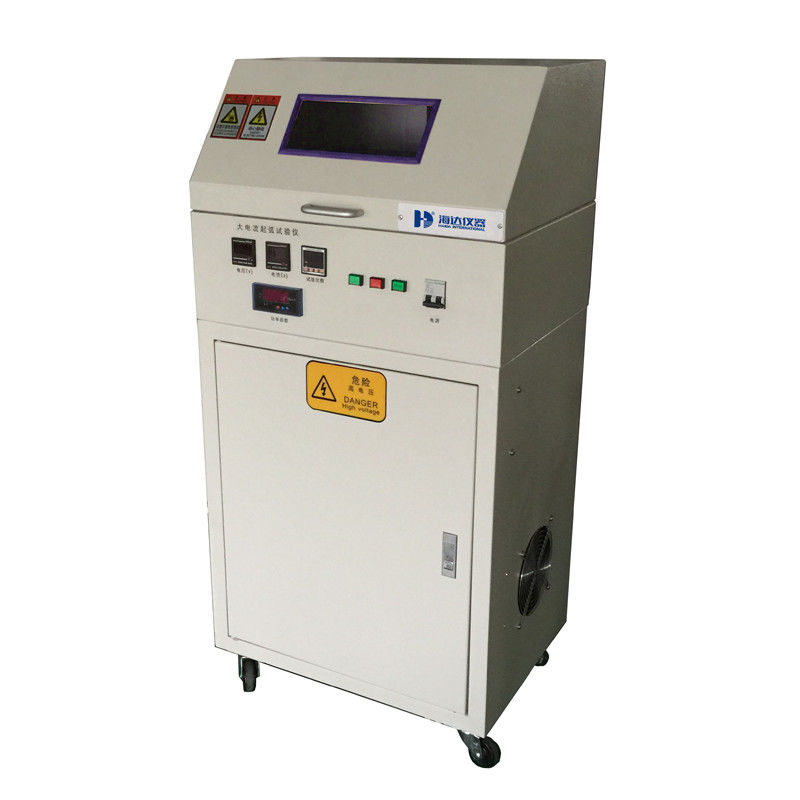

High Current Assess Arc Resistance Performance Flammability Testing Equipment 0



Technical Parameters:



Model 6009-HD
Test Voltage 220V–240V
Electrode Separation Speed 254mm ±25mm per second
Arc Frequency Approximately 40 arcs per minute.
Test Electrodes Fixed Electrode: Solid copper conductor (Ø3.5mm) with a 30° beveled tip
Moving Electrode: Stainless steel rod (Ø3mm) with a 60° conical tip
Electrodes are positioned at a 45° angle to the horizontal plane; tip curvature radius <0.1mm.
Short-Circuit Current Adjustable inductive load to achieve a power factor of 0.5 and short-circuit current of 33A
Key Features Integrated test chamber and load box (upper section for testing, lower for load). Enclosure: Painted steel with stainless steel/brass components. Electrodes: Copper (fixed) and stainless steel (moving), resistant to high temperatures and corrosion.
Power Supply AC 220V, 50Hz
