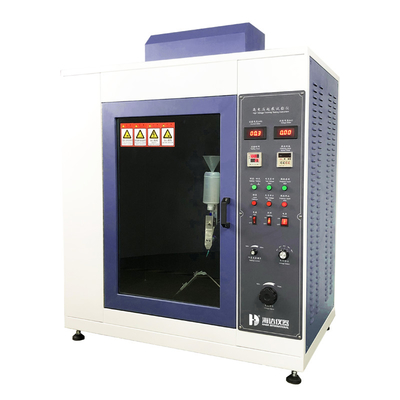

GB/T 6553-2003 And IEC 60581 1984 Compliant High Voltage Tracking Resistance Tester For Electrical Insulation Materials

Large Image : GB/T 6553-2003 And IEC 60581 1984 Compliant High Voltage Tracking Resistance Tester For Electrical Insulation Materials

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO,CE,
Model Number:	6008-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

Chamber Volume:	≥0.5 M³, With A Glass Observation Door	Droplet Interval:	Adjustable: 0–99.99 Seconds
Filter Paper:	Standard Dimensions; Thickness: 0.15–0.17mm	Droplet System:	Adjustable Height; Contaminant Flow Rate: 0.075–0.9 ML/min; Pre-settable Test Duration
Key Features:	Stainless Steel Construction For All Components (electrodes, Fasteners, Screws, Washers, Nuts)	Power Supply:	AC 220V, 50Hz
Highlight:	High Voltage Tracking Resistance Tester , Electrical Insulation Materials Tracking Resistance Tester

High Voltage Tracking Resistance Tester GB/T 6553-2003

Description:

The High Voltage Tracking Resistance Tester is designed to evaluate the tracking and erosion resistance of electrical/electronic products, household appliances, and their materials.

High Voltage Tracking Resistance Tester simulates harsh environmental conditions by applying liquid contaminants and inclined samples under power frequency (48Hz–62Hz) to assess the performance of electrical insulation materials.

Standard:

The equipment is manufactured in accordance with GB/T 6553-2003 and IEC 60581:1984 standards, which specify test methods for tracking and erosion resistance under severe conditions.

GB/T 6553-2003 And IEC 60581 1984 Compliant High Voltage Tracking Resistance Tester For Electrical Insulation Materials 0

Technical Parameters:

Model	6008-HD
Chamber Volume	≥0.5 m³, with a glass observation door.
Electrical Load	Adjustable voltage range: 0–6000V ±5%. Overcurrent protection trips at ≥60mA for 2 seconds, triggering an audible alarm (reset via voltage stop).
Droplet Interval	Adjustable: 0–99.99 seconds.
Filter Paper	Standard dimensions; thickness: 0.15–0.17mm.
Electrodes	Thickness: 0.5mm; spacing between upper and lower electrodes: 50±0.5mm (standard-compliant dimensions).
Droplet System	Adjustable height; contaminant flow rate: 0.075–0.9 mL/min; pre-settable test duration.
Key Features	Stainless steel construction for all components (electrodes, fasteners, screws, washers, nuts).
Power Supply	AC 220V, 50Hz.

ABOUT HAIDA

GB/T 6553-2003 And IEC 60581 1984 Compliant High Voltage Tracking Resistance Tester For Electrical Insulation Materials 1

GB/T 6553-2003 And IEC 60581 1984 Compliant High Voltage Tracking Resistance Tester For Electrical Insulation Materials 2

GB/T 6553-2003 And IEC 60581 1984 Compliant High Voltage Tracking Resistance Tester For Electrical Insulation Materials 3

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
