Flammability Testing Equipment and High Voltage Tracking Resistance Tester

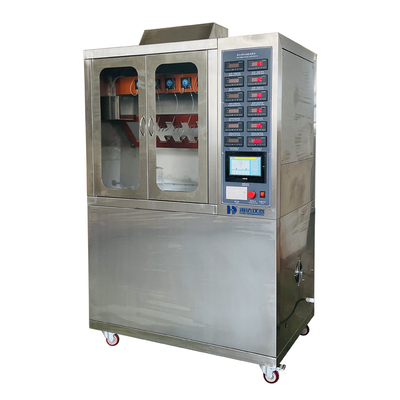

Large Image : Flammability Testing Equipment and High Voltage Tracking Resistance Tester

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO,CE,
Model Number:	6007-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

Test Channels:	5 Independent Test Groups	Voltage Stability:	±1%
Test Voltage Range:	100V–6000V (continuously Adjustable)	Output Voltage Mode:	AC/DC (switchable)
Voltage Regulator:	Output: 0–250V Adjustable; Capacity: 5kVA	Test Transformer:	Capacity: 5kVA; Max. Output Voltage: AC 6000V
High-Precision Stabilizer:	Output: AC 220V; Power: 6000W; Accuracy: ±1%	Chamber Volume:	900L × 650W × 950H (mm); 0.56 M³
Highlight:	High Voltage Flammability Testing Equipment , High Voltage Tracking Resistance Tester , Tracking Resistance Flammability Testing Equipment

High Voltage Tracking Resistance Tester

Description:

This instrument is designed to evaluate the tracking and erosion resistance of electrical/electronic products, household appliances, and their materials.

It simulates severe environmental conditions by applying liquid contaminants and inclined samples under power frequency (45Hz–65Hz) to assess the tracking and erosion resistance grades of electrical insulation materials.

Standard:

GB/T 6553-2014 and IEC 60587:2007 standards.

Flammability Testing Equipment and High Voltage Tracking Resistance Tester 0

Technical Parameters:

Model	6007-HD
Test Channels	5 independent test groups.
Voltage Stability	±1%
Test Voltage Range	100V–6000V (continuously adjustable)
Output Voltage Mode	AC/DC (switchable)
Voltage Regulator	Output: 0–250V adjustable; Capacity: 5kVA
Test Transformer	Capacity: 5kVA; Max. output voltage: AC 6000V
High-Precision Stabilizer	Output: AC 220V; Power: 6000W; Accuracy: ±1%
Electrodes	Material: 304 stainless steel, thickness: 0.5mm; Electrode spacing: 50.0mm ±0.1mm
Overcurrent Protection	Trips at ≥60mA for 2 seconds, triggering an audible alarm (reset via voltage stop).
Tracking Criteria	Per GB/T 6553-2014 Clause 4.1.2: Voltage applied (2.5kV/3.5kV/4.5kV) with contaminant flow; current must remain below 60mA for 6 hours to pass.
Test Duration	6 hours.
Droplet Interval	Adjustable: 0–99.99 seconds/minutes/hours
Droplet System	High-precision peristaltic pump (LEAF); Flow rate: 0.00185–20 mL/min; Speed: 0.1–50 rpm; Accuracy: <0.5%.
Test Solution	Mixture of ammonium chloride, isooctylphenoxy polyethoxy ethanol (nonionic wetting agent), and deionized water. Resistivity: (3.95 ±0.05) Ω·m at (23±1)°C
Filter Paper	Standard dimensions; Thickness: 0.15–0.17mm
Chassis Material	SUS304 stainless steel (brushed finish)
Contaminant Tank	316 stainless steel with sealed design.
Chamber Volume	900L × 650W × 950H (mm); 0.56 m³
Overall Dimensions	1300L × 700W × 1800H (mm)
Control System	PLC + touchscreen; Automated report generation; Built-in thermal printer for real-time results.
Design Features	Integrated structure with control panel on the right
	Glass-view door for observation
	Top-mounted exhaust fan for fume extraction post-test
