Glow-Wire Tester Flammability Testing Equipment With PLC Color LCD Touchscreen Control System

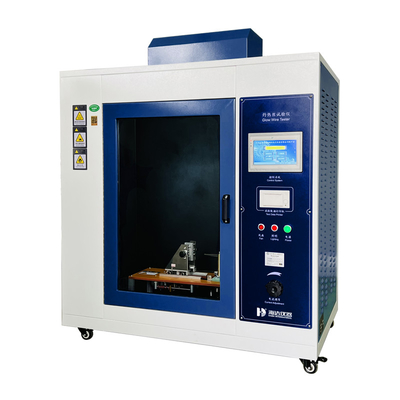

Large Image : Glow-Wire Tester Flammability Testing Equipment With PLC Color LCD Touchscreen Control System

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO,CE,
Model Number:	6002-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

Control System:	7-inch Color LCD Touchscreen + PLC (Programmable Logic Controller), Equipped With A Test Data Printer	Display System:	7-inch Color LCD Touchscreen For Setting And Displaying Glow Time (Ta), Ignition Time (Ti), Flame Extinction Time (Te), Glow-wire Temperature, Print Interface, And Operational Status
Chamber Volume:	≥0.5 M³, With A Glass Observation Door	Internal Illuminance:	Less Than 20 Lux
Force Applied To Sample:	0.95 ± 0.10 N, With A Penetration Depth Limited To 7.0 ± 0.5 Mm (automatically Sensed)	Power Supply:	AC 220V, 50Hz
Highlight:	PLC Flammability Testing Equipment , Glow-Wire Flammability Testing Equipment , LCD Touchscreen Flammability Testing Equipment

Glow-Wire Tester

Description:

The glow-wire test simulates thermal stress or ignition sources caused by overheated components or overloaded resistors in a short period, assessing fire hazards for parts or components under fault or overload conditions.

It applies to plastic and non-metallic insulating materials used in electrical and electronic products, components, and household appliance parts, such as switch housings and relay sockets.

This tester features a PLC + color LCD touchscreen control system with an intuitive interface and includes a built-in printer for recording test conditions and results.

Standard:

IEC60695-2-10 / 11 / 12 / 13 - 2013, GB/T 5169.10, GB/T 5169.11, IEC 60884-1, GB 2099.1, IEC 60335-1, GB 4706.1, VDE 0620-1

Glow-Wire Tester Flammability Testing Equipment With PLC Color LCD Touchscreen Control System 0

Technical Parameters:

Model	6002-HD
Control System	7-inch color LCD touchscreen + PLC (Programmable Logic Controller), equipped with a test data printer.
Display System	7-inch color LCD touchscreen for setting and displaying glow time (Ta), ignition time (Ti), flame extinction time (Te), glow-wire temperature, print interface, and operational status.
Chamber Volume	≥0.5 m³, with a glass observation door.
Internal Illuminance	Less than 20 Lux.
Glow-Wire Temperature	Adjustable from ambient + 10°C to 1000°C, measured using a Ø1mm nickel-chromium armored (K-type) imported thermocouple.
Force Applied to Sample	0.95 ± 0.10 N, with a penetration depth limited to 7.0 ± 0.5 mm (automatically sensed).
Glow-Wire	Made of nickel/chromium alloy (>77% Ni / 20±1% Cr). The diameter before bending is 4.0 ± 0.07 mm, with other dimensions manufactured to standard tolerances.
Movement Speed of Glow-Wire Tip	10 mm/s to 25 mm/s (approaching or retracting from the sample).
Wooden Board	White pine board, thickness >10 mm, placed 200±5 mm below the sample contact point.
Timer	Adjustable range: 0–999.9 seconds, accuracy: ±0.1 seconds. Glow time (Ta) is settable, while ignition duration (Ti) and flame extinction time (Te) are recordable.
Key Features	Automated control system. After initiation, the sample carriage automatically moves the specimen to the glow-wire and retracts after the set glow time. Features black interior, ventilation, lighting, and digital displays for easy observation and recording.
Power Supply	AC 220V, 50Hz.

ABOUT HAIDA

Glow-Wire Tester Flammability Testing Equipment With PLC Color LCD Touchscreen Control System 1

Glow-Wire Tester Flammability Testing Equipment With PLC Color LCD Touchscreen Control System 2

Glow-Wire Tester Flammability Testing Equipment With PLC Color LCD Touchscreen Control System 3

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
