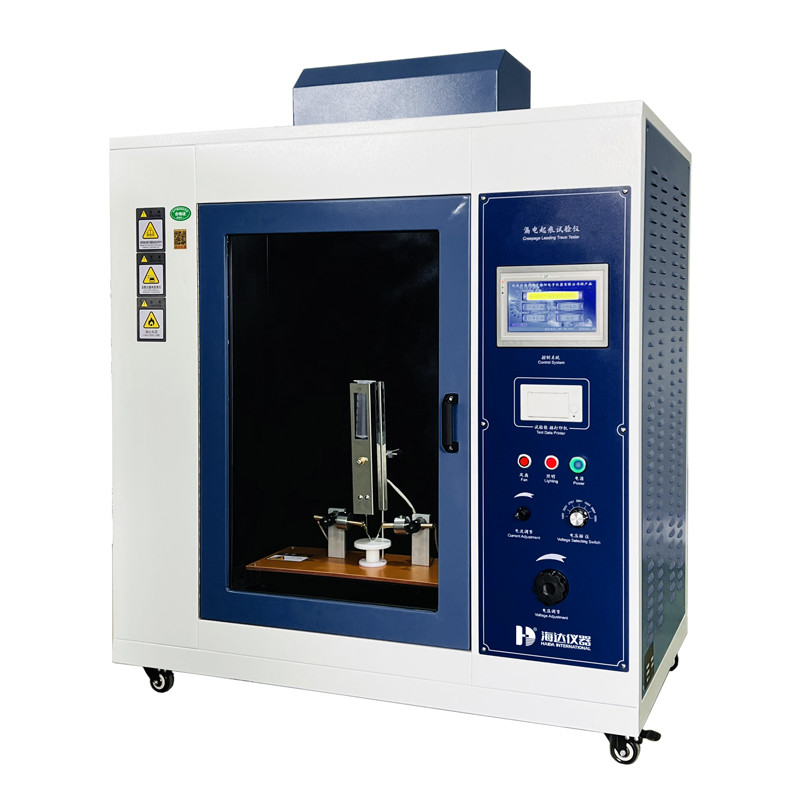

Rectangular Platinum Electrodes Tracking Resistance Tester For Lab Test Equipment

Large Image : Rectangular Platinum Electrodes Tracking Resistance Tester For Lab Test Equipment

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO,CE,
Model Number:	6005-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

Control System:

7-inch Color LCD Touchscreen + PLC (Programmable Logic Controller), Equipped With A Test Data Printer

Chamber Volume:

≥0.5 M³, With A Glass Observation Door

Electrode Force:

Rectangular Platinum Electrodes, Each Applying 1.0N ±0.05N To The Sample

Power Supply:

AC 220V, 50Hz

Highlight:

Lab test Equipment Tracking Resistance Tester

Lab Tracking Resistance Tester

Rectangular Platinum Electrodes Tracking Resistance Tester

Tracking Resistance Tester

Description:

Under humid or contaminated conditions, electrical insulation between live parts of opposite polarity or between live parts and grounded metal components may degrade, leading to leakage currents. This can cause arcing, material erosion, short circuits, or even ignition.
This tester simulates such conditions to evaluate the relative resistance of insulating materials to tracking under electric stress and contaminated water exposure. It applies to solid insulating materials and products in electrical/electronic equipment and household appliances, such as relay sockets, switch covers, and contactor housings.

Standard:

IEC 60112:2020, GB/T 4207-2022, IEC 60335-1, GB 4706.1, IEC 60884-1, GB 2099.1, IEC 60950, GB 4943.1-2022

Rectangular Platinum Electrodes Tracking Resistance Tester For Lab Test Equipment 0

Technical Parameters:

Model	6005-HD
Control System	7-inch color LCD touchscreen + PLC (Programmable Logic Controller), equipped with a test data printer.
Display System	7-inch color LCD touchscreen for setting/displaying test voltage, current, droplet count, droplet interval, print interface, and operational status.
Chamber Volume	≥0.5 m³, with a glass observation door.
Electrical Load	Adjustable test voltage: 100–600V. Short-circuit current: 1A ±0.1A with ≤10% voltage drop. Overcurrent relay trips at 0.5A ±10% (2s tolerance ±10%), triggering an audible alarm for failed samples (reset via voltage stop).
Electrode Force	Rectangular platinum electrodes, each applying 1.0N ±0.05N to the sample.
Droplet System	Droplet height adjustable: 30–40mm. Mass of 50 droplets: 0.997–1.147g; 20 droplets: 0.380–0.480g. Droplet interval: 30±5 seconds (configurable).
Key Features	Stainless steel/brass construction with platinum electrodes (high-temperature/corrosion-resistant). Precise droplet counting and stable control system.
Power Supply	AC 220V, 50Hz.

ABOUT HAIDA

Rectangular Platinum Electrodes Tracking Resistance Tester For Lab Test Equipment 1

Rectangular Platinum Electrodes Tracking Resistance Tester For Lab Test Equipment 2

Rectangular Platinum Electrodes Tracking Resistance Tester For Lab Test Equipment 3

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
