Hot-Wire Ignition Tester For Lab Test Equipment Adjustable Annealing Time

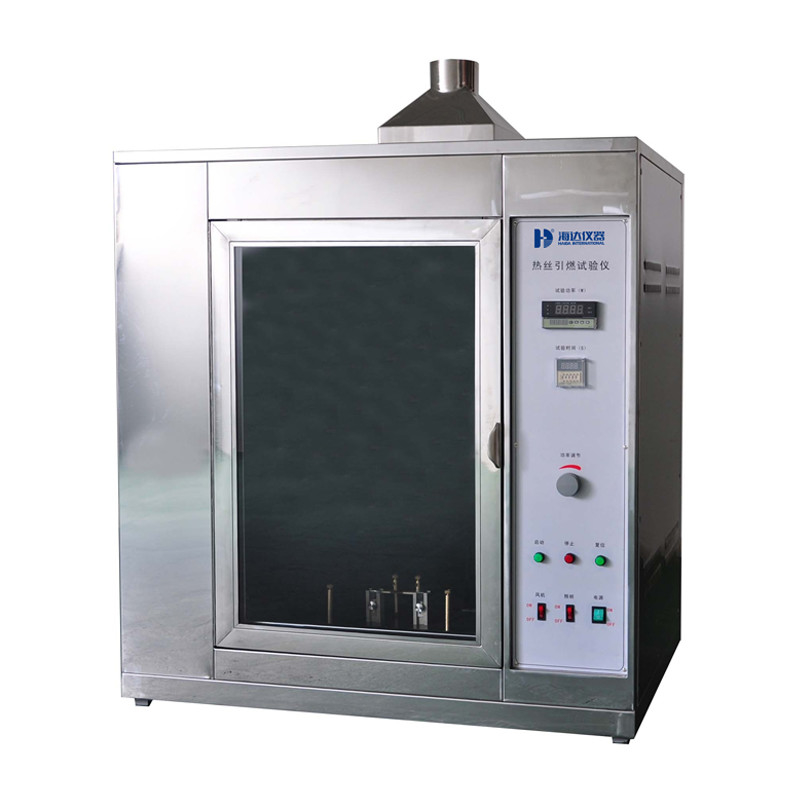

Large Image : Hot-Wire Ignition Tester For Lab Test Equipment Adjustable Annealing Time

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO,CE,
Model Number:	6004-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

Chamber Volume:	≥0.5 M³, With A Glass Observation Door	Annealing Time:	8–12 Seconds (adjustable Range: 1–999.9 Seconds, Digital Display)
Annealing Power:	0.26W/mm ±4%, Digitally Adjustable And Displayed	Test Duration:	120 Seconds (adjustable Range: 1–999.9 Seconds, Digital Display)
Test Power:	0.26W/mm ±4%, Digitally Adjustable And Displayed	Sample Dimensions:	130mm (length) × 13mm (width)
Power Supply:	AC 220V, 50Hz
Highlight:	Hot-Wire Ignition Tester , Lab test Equipment Ignition Tester , Hot-Wire Ignition Tester

Hot-Wire Ignition Tester

Description:

This tester simulates fire hazards as specified in IEC 60695-2-20, UL 60950, IEC 60950-1999, and ASTM D3874-1997. It employs a heating wire of specific dimensions (0.5mm × 250mm) and material (Ni80/Cr20), pre-annealed at a defined power (0.26W/mm) and duration (8–12 seconds).
The wire is wound in five full turns around the sample at a 6mm pitch, then tested at the same power (0.26W/mm) until ignition or for up to 120 seconds. The test evaluates fire risks based on ignition occurrence or time to ignition.

Standard:

GB/T 4943-2022, IEC 60950:1999, IEC 60695-2-20:2021, UL 60950, ASTM D3874-1997

Hot-Wire Ignition Tester For Lab Test Equipment Adjustable Annealing Time 0

Technical Parameters:

Model	6004-HD
Chamber Volume	≥0.5 m³, with a glass observation door.
Heating Wire Specification	Diameter: Ø0.5mm, length: 250mm±5mm, material: nickel-chromium alloy (80% Ni, 20% Cr, iron-free), cold resistance: ~5.28 Ω/m
Annealing Stand Spacing	250mm
Sample Stand Spacing	70mm
Sample Stand Height	60mm
Annealing Time	8–12 seconds (adjustable range: 1–999.9 seconds, digital display)
Annealing Power	0.26W/mm ±4%, digitally adjustable and displayed
Test Duration	120 seconds (adjustable range: 1–999.9 seconds, digital display)
Test Power	0.26W/mm ±4%, digitally adjustable and displayed
Sample Dimensions	130mm (length) × 13mm (width)
Key Features	Black interior background, integrated ventilation and lighting, digital display for time and power, ensuring easy observation, recording, and reliable operation.
Power Supply	AC 220V, 50Hz.
