High-Precision Prototype Injection Molding Machine For Custom Plastic Parts

All Category

Salt Spray Corrosion Test Chamber

Paper Packaging Testing Instruments

Flammability Testing Equipment

Ms. Mary

salesmanager@qc-test.com

13925747786

Contact Now

High-Precision Prototype Injection Molding Machine For Custom Plastic Parts

Brand Name:	HAIDA
Model Number:	HD-A839-2
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO,CE,

Temperature Range:

RT To 450℃ (±3℃) [Maximum 450℃]

Plunger Diameter [mm]:

35mm

Maximum Compression Stroke [mm]:

150mm

Heating Chamber Size [mm]:

35 * 110

Maximum Injection Volume:

40g

Injection Pressure:

1 Ton

Injection Time:

0-9999s [Adjustable]

Mold Cavity Structure:

Removable Mold Cavity, Effectively Prevents Material Cross-contamination

Safety Protection:

Protective Door + Safety Grating

Machine Weight [kg]:

35kg

Power:

1000W

Voltage:

220V/60Hz

Air Supply:

0.6MPa

Control Method:

Pneumatic

Overall Dimensions [mm]:

600 * 660 * 1400

Max Mold Installation Size:

200 * 200 * 210

Supply Ability:

300 Sets per Month Haida

Highlight:

Custom Plastic Parts Injection Molding Machine

Prototype Injection Molding Machine

High Precision Injection Molding Machine

Product Description

Prototype Molding Machine

Application:

The injection molding prototype machine is a mechanical device. It is usually composed of an injection system, a mold clamping system, a pressure transmission system, an electrical control system, a lubrication system, a heating and cooling system, a safety monitoring system, etc.
The injection system is one of the most important components of the injection molding machine. Generally, there are three main forms: plunger type, screw type, and screw pre-plastic plunger injection type. The most widely used one is the screw type. Its function is to heat and plasticize a certain amount of plastic within a specified time in one cycle of the injection molding machine, and then inject the molten plastic into the mold cavity through the screw at a certain pressure and speed.

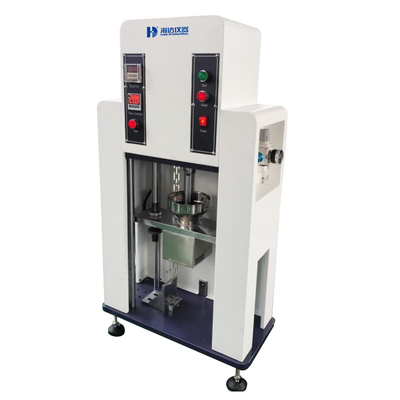

High-Precision Prototype Injection Molding Machine For Custom Plastic Parts 0

Main technical parameter:

Parameter	Specification
Temperature Range	RT to 450℃ (±3℃) [Maximum 450℃]
Plunger Diameter [mm]	35mm
Maximum Compression Stroke [mm]	150mm
Heating Chamber Size [mm]	35 * 110
Maximum Injection Volume	40g
Injection Pressure	1 Ton
Injection Time	0-9999s [Adjustable]
Mold Cavity Structure	Removable mold cavity, effectively prevents material cross-contamination
Safety Protection	Protective door + Safety grating
Max Mold Installation Size	200 * 200 * 210
Machine Weight [kg]	35kg
Power	1000W
Voltage	220V/60Hz
Air Supply	0.6MPa
Control Method	Pneumatic
Overall Dimensions [mm]	600 * 660 * 1400

ABOUT HAIDA

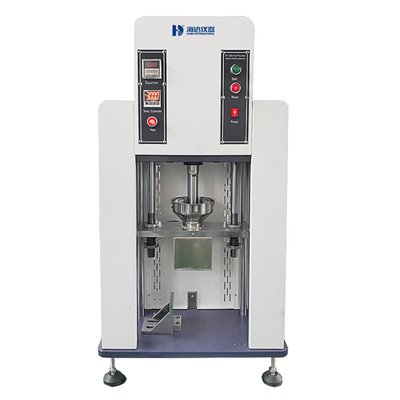

High-Precision Prototype Injection Molding Machine For Custom Plastic Parts 1

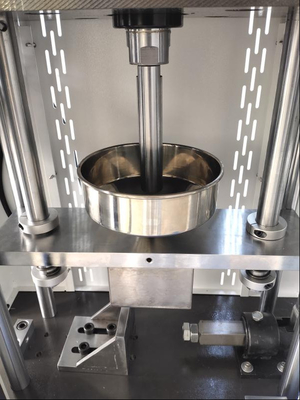

High-Precision Prototype Injection Molding Machine For Custom Plastic Parts 2

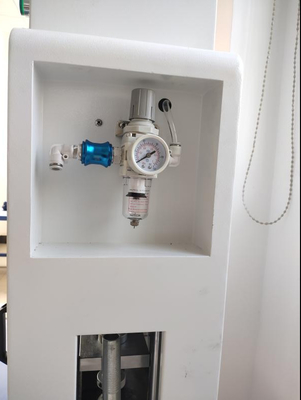

High-Precision Prototype Injection Molding Machine For Custom Plastic Parts 3

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
