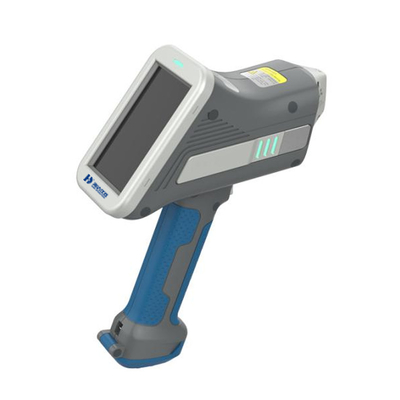

Portable XRF Alloy Analyzer EXF-10A - On-Site Metal Composition Rapid Screening Tool

Large Image : Portable XRF Alloy Analyzer EXF-10A - On-Site Metal Composition Rapid Screening Tool

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO,CE,
Model Number:	HD-E858

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

Detector:	High Performance Sipin Detection Module	Excitation Source Control Accuracy:	45kv/200uA Silver Target / Tungsten Target End Window Integrated Micro X-ray Tube And High Voltage Source
Element Detection Range 1:	Elements With Atomic Numbers Ranging From 20 To 92 Calcium (Ca) To Uranium (U)	Element Detection Range 2:	Analysis Of Main Elements In Alloy: Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Zr, Nb, Mo, Ag, Cd, Sn, Sb, Ta, W, Pb, Bi, A Total Of 20 (you Can Continue To Add)
Detection Object:	Solid	Analytical Method:	Direct Reading Analysis + Basic Parameter Method (FP)
Collimator & Filter 1:	Collimator Of Special Radiation Protection Material, Inner Diameter 3mm	Collimator & Filter 2:	Without Filter, The Switching Time Is Saved, And The Background Interference Is Deducted By The Software
Front End Test Window:	≤ 9mm*5mm "waist" Window
Highlight:	On-Site Metal Composition Analyzer , Portable XRF Alloy Analyzer , Rapid Screening XRF Alloy Analyzer

Handheld X-ray Fluorescence Spectrometer

Description:

It is widely used in field application scenarios such as quality control, material classification, alloy identification, safety prevention and accident investigation. Alloy brand identification and metal composition rapid analysis solve the most basic raw material analysis problems of industrialization. The handheld alloy analyzer integrates the most cutting-edge scientific research innovation and is a powerful tool for metal material identification in the production process. At the same time, users can create an exclusive personalized analysis system according to their own needs.

Portable XRF Alloy Analyzer EXF-10A - On-Site Metal Composition Rapid Screening Tool 0

Technical Parameters

Detector	High performance Sipin detection module
Excitation source	45kv/200uA silver target / tungsten target end window integrated micro X-ray tube and high voltage source
Element detection range	1. Elements with atomic numbers ranging from 20 to 92 calcium (Ca) to uranium (U) 2. Analysis of main elements in alloy: Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Zr, Nb, Mo, Ag, Cd, Sn, Sb, Ta, W, Pb, Bi, a total of 20 (you can continue to add)
Detection object	Solid
Analytical method	Direct reading analysis + basic parameter method (FP)
Collimator & Filter	1. Collimator of special radiation protection material, inner diameter 3mm Without filter, the switching time is saved, and the background interference is deducted by the software
Front end test window	≤ 9mm*5mm "waist" window

ABOUT HAIDA

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

Portable XRF Alloy Analyzer EXF-10A - On-Site Metal Composition Rapid Screening Tool 1

Portable XRF Alloy Analyzer EXF-10A - On-Site Metal Composition Rapid Screening Tool 2

Portable XRF Alloy Analyzer EXF-10A - On-Site Metal Composition Rapid Screening Tool 3

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
