BMS Lithium & Lead Acid Battery Management Testing System For New Energy Vehicles And Energy Storage Station

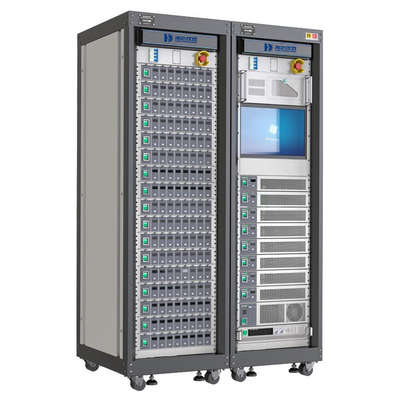

Large Image : BMS Lithium & Lead Acid Battery Management Testing System For New Energy Vehicles And Energy Storage Station

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO,CE,
Model Number:	HD-216
Document:	HD-A502S-1200 Box Compressi...6.docx

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

Capacity:	5V3A/5A/10A - 24S~240S-200A/400A/600A	Function 1:	OCV Test
Function 2:	Power-on Power Consumption Test	Function 3:	Cell Voltage Accuracy Test
Function 4:	Cell Temperature Accuracy Test	Function 5:	Total Voltage Comparison Test
Function 6:	SOC Comparison Test	Function 7:	Insulation Resistance Accuracy Comparison Test
Function 8:	Balancing Function Test
Highlight:	Lead Acid Battery Management Testing System , Lithium Battery Management Testing System

BMS battery management testing system

Description:

BMS battery management testing system is used for parameter calibration, verification, and testing during the development and production of battery management systems (BMS) for electric vehicles and energy storage power stations. It also generates comprehensive test reports.

BMS Lithium & Lead Acid Battery Management Testing System For New Energy Vehicles And Energy Storage Station 0

Product Function Test

1. Static Current Consumption Test
2. Current Precision Verification
3. Balanced Current Test
4. Insulation Resistance Test And Verification
5. Voltage Precision Verification
6. National Standard Charge Signal Simulation

Product Advantages

1. Composed by virtual battery, short-circuit free, safety guaranteed. Flexible and safe Operation. Can be freely replaced and expanded, max. support 400S;
2. Software supports modular setting of testing projects, production validation and research and development, research-oriented testing, and other modes, supporting secondary development;
3. Support manual start testing and one click start automatic testing, including button start, barcode start, PLC start testing, etc;
4. Support multi-channel independent testing to improve efficiency and production capacity;
5. Support battery pack working process simulation test, milliseconds synchronization;
6. Support long time aging testing and reliability testing.

Technical Parameters

Models	HD-H216-BMS-5V3A/5A/10A-24S~240S-200A/400A/600A
PACK Voltage	Voltage Measurement	5-1000V	0.1% F.S	0.1V
Simulated battery output	Voltage range	0.1-5V	0.01%R.D ± 0.02% F.S	0.1mV
	Current range1	1-5000uA	0.01%R.D ± 0.1% F.S	0.1uA
	Current range2	1-3000mA	0.01%R.D ± 0.1% F.S	0.1mA
Simulated battery sampling	Voltage range	0.1-5V	0.01%R.D ± 0.02% F.S	0.1mV
	Current range1	1-5000uA	0.01%R.D ± 0.1% F.S	0.1uA
	Current range2	1-3000mA	0.01%R.D ± 0.1% F.S	0.1mA
Simulated battery's ability of absorbs current	Current range	1-3000mA	0.01%R.D ± 0.1% F.S	0.1mA
Temperature simulation	Temperature range	-50℃~300℃	0.1%R.D ± 3% F.S	0.1℃
High precision constant current source	Deliver & absorb current range	0~200A/400A/500A/600A	±0.05% F.S	1mA
DC high-voltage power	Voltage range	0-1000V	0.1%RD±0.1%FS	0.1V
	Current range	0-10A	0.1%RD±0.1%FS	1mA
High Power Resistor	2 sets	5KΩ~10MΩ	0.1%RD±3%FS	5KΩ
DI/DO Module	Configure as required
AI/AO Module	Configure as required
CAN communication unit	4 sets
Basic function test	OCV test
	Power-on power consumption test
	Power loss power consumption test
	Power loss power consumption test
	Cell temperature accuracy test
	Total voltage comparison test
	SOC comparison test
	Insulation resistance accuracy comparison test
	Balancing function test
	Power supply voltage test
Alarm function test	Voltage/current/temperature/SOC alarm functions at all levels
Signal function tes	Voltage sampling test
	IO signal input and output test
Communication function	CANBUS / RS485 / RS232 / I2C / SUMBUS etc.

Details

ABOUT HAIDA

BMS Lithium & Lead Acid Battery Management Testing System For New Energy Vehicles And Energy Storage Station 7

BMS Lithium & Lead Acid Battery Management Testing System For New Energy Vehicles And Energy Storage Station 8

BMS Lithium & Lead Acid Battery Management Testing System For New Energy Vehicles And Energy Storage Station 9

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
