Digital 3C Battery Testing System For Laptop & Camera & Smartphone Battery Test Machine

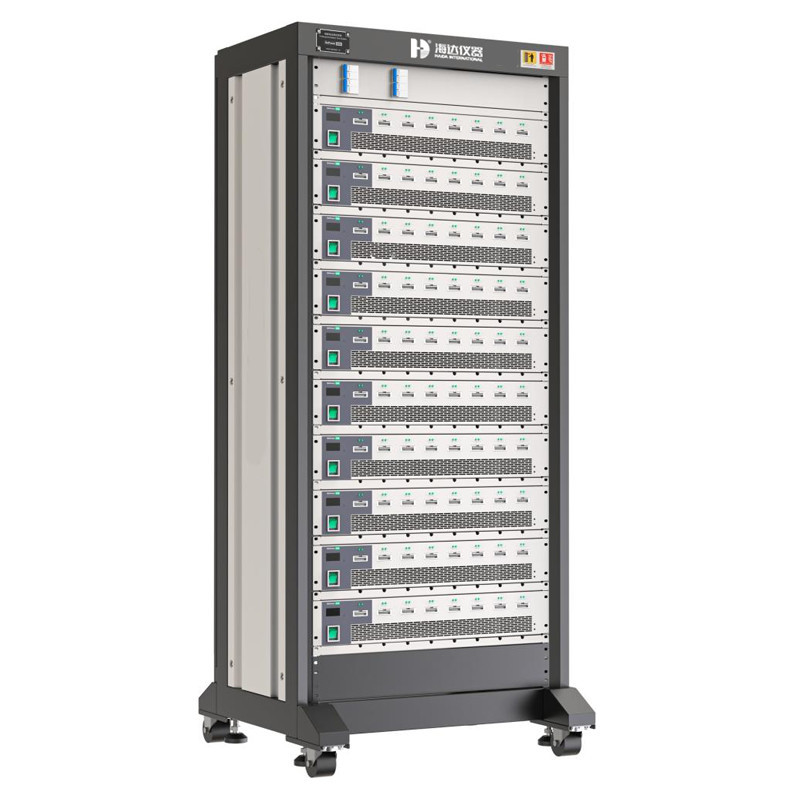

Large Image : Digital 3C Battery Testing System For Laptop & Camera & Smartphone Battery Test Machine

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO,CE,
Model Number:	HD-218

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

Wiring Method:	AC 220V	Power Supply Voltage:	220±10% VAC
Power Supply Frequency:	50±5% Hz	Power Factor:	> 0.99
Max. Power Feedback Efficiency:	≥ 95%	Output Current:	5A/6A/10A/20A/30A
Single Channel Voltage Range:	5V~20V	Voltage Accuracy:	± 0.02% F.S
Voltage Resolution:	0.1mV	Cabinet Size (Optional):	7707221800(WDH Mm)
Highlight:	Laptop Battery Testing System , Smartphone Battery Testing System , Camera Battery Testing System

Digital battery testing system 5v~20v

Description:

Digital battery testing system 5v~20v Mainly used for aging, testing, and intelligent data training in the production of notebook batteries, digital camera batteries, smartphone batteries, and other smart 3C batteries.

Digital 3C Battery Testing System For Laptop & Camera & Smartphone Battery Test Machine 0

Product Function Test

1. Cycle Life Test
2. Voltage Test
3. Charge Retention Capability
4. Dynamic And Static SOC Test
5. Charge And Discharge Test
6. Temperature Characteristics Test
7. Overcharge/Overdischarge Test
8. DC Internal Resistance Test

Product Advantages

1. Support cell voltage consistency test
2. Support Comparison of charge-discharge curves of multi-channel
3. With anti-reverse connection, data loss and other protection functions
4. Modular design, easy to maintain
5. Support GGS communication, I2C, Smbus, HDQ and other protocols
6. Support 100K/400K communication frequency adjustable, communication platform voltage adjustable
7. Supports multi-chip (multi-address) information reading
8. One device is able to compatible with multi-type of IC
9. Able to self-defy and load battery lock and unlock instruction for special battery

Technical Parameters

Models	HD-H218-5V/20V
AC parameters	Wiring method	AC 220V
	Power supply voltage	220±10% VAC
	Power supply frequency	50±5% Hz
	Power factor	＞0.99
	Max. power feedback efficiency	≥ 95%
	THD	＜3%
DC parameters	Total output power	≤ 8000W
	Output current	5/6/10/20/30A
	Single channel voltage range	5V~20V
	Voltage accuracy	± 0.02% F.S
	Voltage resolution	0.1mV
	Current accuracy	± 0.02% F.S
	Current resolution	0.1mA
	Current start response time	10ms (10%~90%F.S)
	Current switching time	20ms (-90%~90%F.S)
Software Function	Charging mode	CC, CV, CP, Pulse, Slope etc.
	Discharge mode	±0.02% F.S
	Other working mode	Still, Working condition test, Pulse test, DCIR etc
	Test cut-off condition	Battey voltage, current, time, capacity, temperature, BMS parameters etc.
	Data export format	Excel, TXT etc.
	Data recording interval	10ms
	Editable step	Max. 10000
	Programmable step	Max. 10000
	Nested loop	Max. 10 layers
	Software protection	OCP/OVP/Reverse or wrong connection protection/ Protection for abnormal communication
Other parameters	IP grade	IP20
	Working temperature	0℃~40℃
	Cooling method	Forced Fan-cooled
	Noise	＜75dB
	Cabinet size(WDH mm)	7707221800

Details
