Rubber Rotorless Rheometer
Generl Specifications:
Estimated Packaging Dimensions: (W*D*H) 600*600*1400mm
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Application:
Rotorless Rheometer is used for rubber quality control and it is widely used in rubber industry. rheometer can offer accurate data for rubber optimization formula combination, such as the burning time, positive curing time, sulfide index and maximum and minimum torque.
Design Standard:
GB/T1232, GB/T 1233, ISO667, ISO 289 ,ASTM D 1646, JIS K 6300 etc.

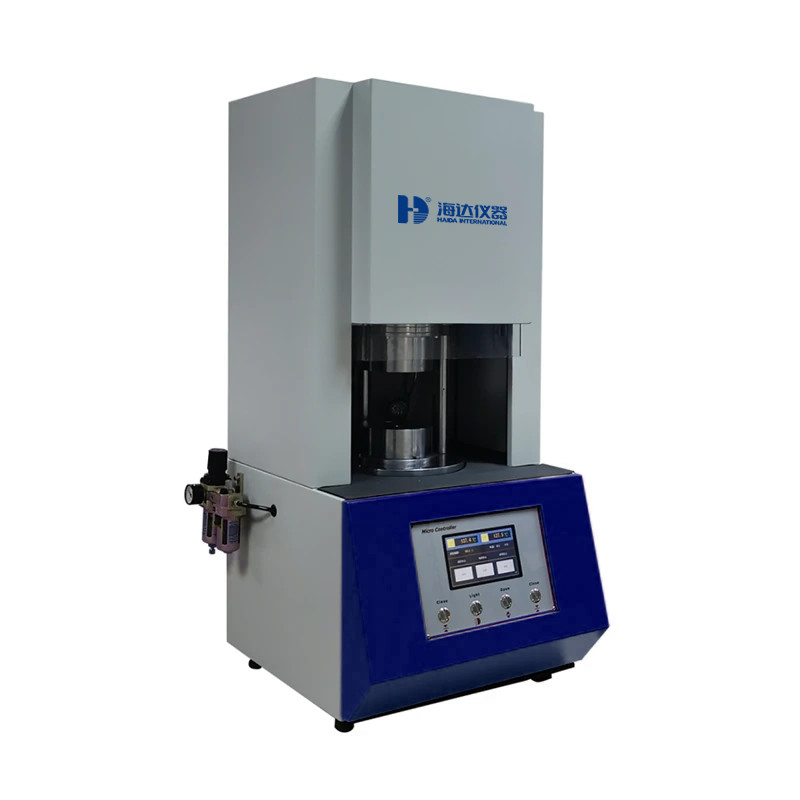

Rotorless Rheometer view:
Software details picture:
Standard Features:
| Temperature Range: |
room temperature to 200°C |
| Temperature Resolution: |
0.01℃ |
| Rate of temperature increase: |
15℃/min |
| Torque Range: |
0-25N.M |
| Torque Resolution: |
0.001NM |
| Swing Angle: |
±0.5°, ±1°, ±2°, ±3° (optional) |
| Swing speed: |
100r/min(1.66HZ)
|
Rubber related testing Standard:
1. ASTM D412, ISO 37-2005, JIS K6251, DIN 53504-2009: Tensile Strength & Elongation Test
2. ASTM D1149-07, ASTM D1171-99, ISO 7326, ISO1431-1, DIN 53509-1: Ozone Aging Test
3. ASTM D624-00, ISO 34-1: Tearing strength Test
4. ASTM D395-03, ISO 815-1: Compression Set Test
5. ASTM D2240-05, ISO 7619-1, JIS K6253, ISO 868: Shore Hardness Type A/D
6. ASTM D573, ASTM D865, ISO188 Method B, DIN 53508 High/ Low Temperature Test
7. ISO 2781(Method A): Density Test
8. ASTM D5289-95/ ISO6502: No-Rotor Rheometer/Curemeter
9. ASTM D1646: Mooney Viscometer
