High Insulation Resistance Measuring Tester

Large Image : High Insulation Resistance Measuring Tester

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO,CE,
Model Number:	HD-R910

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

Resistance Measurement Range:	10KΩ~1TΩ	Test Accuracy:	1＞10nA: ±3%, 1＜10nA: ±5%, 1＜1nA: ±10%
Current Measurement Range:	10pA~1mA	Measurement Accuracy:	1＞10nA: ±3%, 1＜10nA: ±5%, 1＜1nA: ±10%
Output Range:	10V~1000V	Voltage Accuracy:	±1%±1V
Power:	300VA
Highlight:	High Insulation Resistance Measuring Tester , High Insulation Resistance Tester

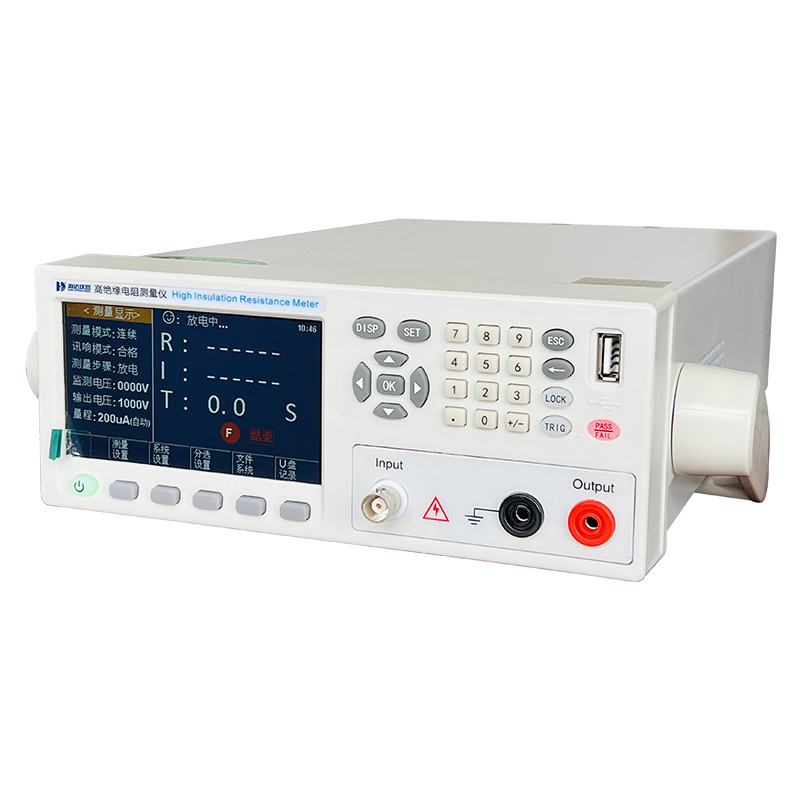

High Insulation Resistance Measuring Tester

Description:

The High Insulation Resistance Measuring Tester can quickly measure the insulation performance of electronic components, dielectric materials, equipment and wires and cables, and is suitable for resistance inspection of anti-static facilities such as industrial and mining enterprises, scientific research institutes, computer rooms, and resistance measurement of insulating materials. It can also be used for weak current measurement such as photoelectric effect and device dark current measurement.

High Insulation Resistance Measuring Tester 0

Technical Parameters

Model	HD-R910
Resistance Measurement range	10KΩ~1TΩ
Test accuracy	1＞10nA: ±3%, 1＜10nA: ±5%, 1＜1nA: ±10%
Current Measurement range	10pA~1mA
Measurement accuracy	1＞10nA: ±3%, 1＜10nA: ±5%, 1＜1nA: ±10%
Output range	10V~1000V
Voltage accuracy	±1%±1V
Charging time	0~999·Programmable
Test time	0~999·Programmable
Test speed	Fast: Single measurement time ≤100ms;
	Slow: Single measurement time ≤200ms
Setting save	5 groups inside the instrument or external USB flash drive
Trigger mode	Internal continuous test/external PLC signal/bus signal
Dimensions(LWH)	about 361107264mm
Power	300VA
Weight	4KG
